Inline Harness Connectors: C322

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

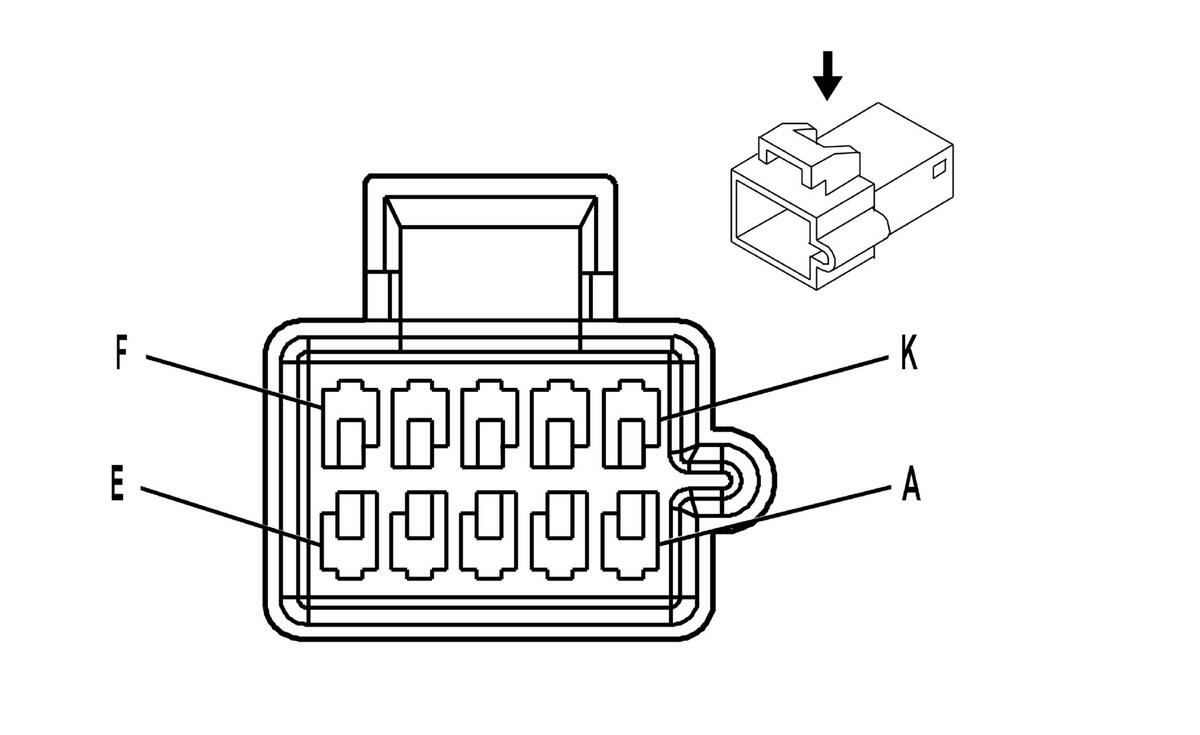

C322 Seat Motor Jumper Harness to Seat Jumper Harness Terminal Identification (AN3)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12064769 10-Way F M/P 150 Series (NAT)		Connector Part Information		12064770 10-Way M M/P 150 Series (NAT)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	DK BLU	569	Horizontal Seat Motor Position Sensor Signal	A	DK GRN	569	Horizontal Seat Motor Position Sensor Signal
B	RED	940	5-Volt Reference	B	WHT	940	5-Volt Reference
C	BLK	718	Low Reference	C	BRN/WHT	718	Low Reference
D	DK BLU	557	Front Vertical Seat Motor Position Sensor Signal	D	BRN/WHT	557	Front Vertical Seat Motor Position Sensor Signal
E	RED	940	5-Volt Reference	E	WHT	940	5-Volt Reference
F	BLK	718	Low Reference	F	BRN/WHT	718	Low Reference
G	DK BLU	568	Rear Vertical Seat Motor Position Sensor Signal	G	TAN	568	Rear Vertical Seat Motor Position Sensor Signal
H	RED	940	5-Volt Reference	H	WHT	940	5-Volt Reference
J	BLK	718	Low Reference	J	BRN/WHT	718	Low Reference
K	-	-	Not Used	K	-	-	Not Used
