Inline Harness Connectors: C320

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

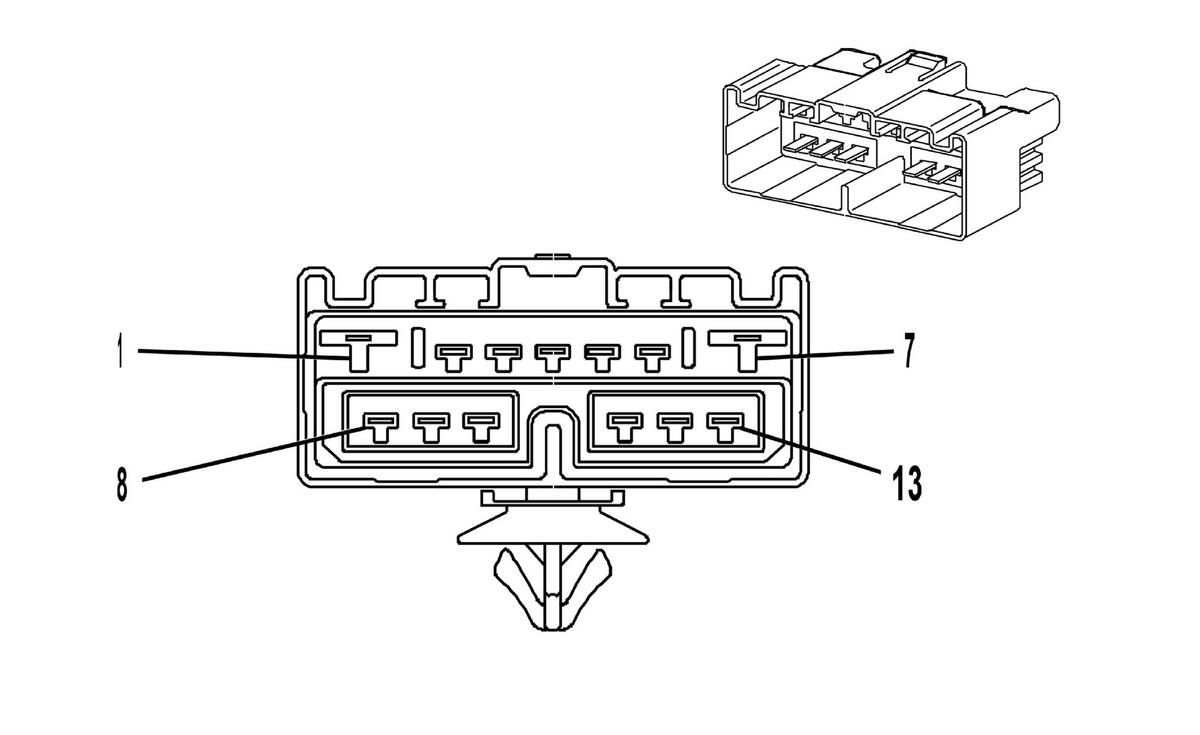

C320 Seat Jumper Harness to Seat Harness Terminal Identification (AN3)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		7283-5625-40 13-Way F Hybrid Unsealed (LT GRY)		Connector Part Information		7282-5625-40 13-Way M Hybrid Unsealed (LT GRY)
Pin	Wire Color	Wire Color	Function	Pin	Wire Color	Circuit No.	Function
1	BLK	1150	Ground	1	BLK	1150	Ground
2	DK BLU	611	Drivers Seat Lumbar Motor Forward Control	2	DK BLU	611	Drivers Seat Lumbar Motor Forward Control
3-5	-	-	Not Used	3-5	-	-	Not Used
6	DK BLU	2479	Passenger Heated Seat Element Supply Voltage(KA1)	6	DK BLU	2479	Passenger Heated Seat Element Supply Voltage (KA1)
6	DK BLU	2479	Passenger Heated Seat Element Supply Voltage (KA1)	6	DK BLU	2479	Passenger Heated Seat Element Supply Voltage (KA1)
7	ORN	1440	Battery Positive Voltage	7	ORN	1440	Battery Positive Voltage
8	PPL	1258	Driver Seat Torso Bolster Out Control	8	PPL	1258	Driver Seat Torso Bolster Out Control
9	YEL	1257	Driver Seat Torso Bolster In Control	9	YEL	1257	Driver Head Rest Motor Up Control
10	-	-	Not Used	10	-	-	Not Used
11	PNK	610	Driver Seat Lumbar Motor Rearward Control	11	PNK	610	Driver Seat Lumbar Motor Rearward Control
12	PNK	2480	Passenger Heated Seat Cushion Element Control (KA1)	12	PNK	2480	Passenger Heated Seat Cushion Element Control (KA1)
13	LT BLU	2433	Passenger Heated Seat Back Element Control (KA1)	13	LT BLU	2433	Passenger Heated Seat Back Element Control (KA1)
