Inline Harness Connectors: C210

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C210 Brake/Clutch Harness to Beacon Harness Terminal Identification (5G4/TRW)

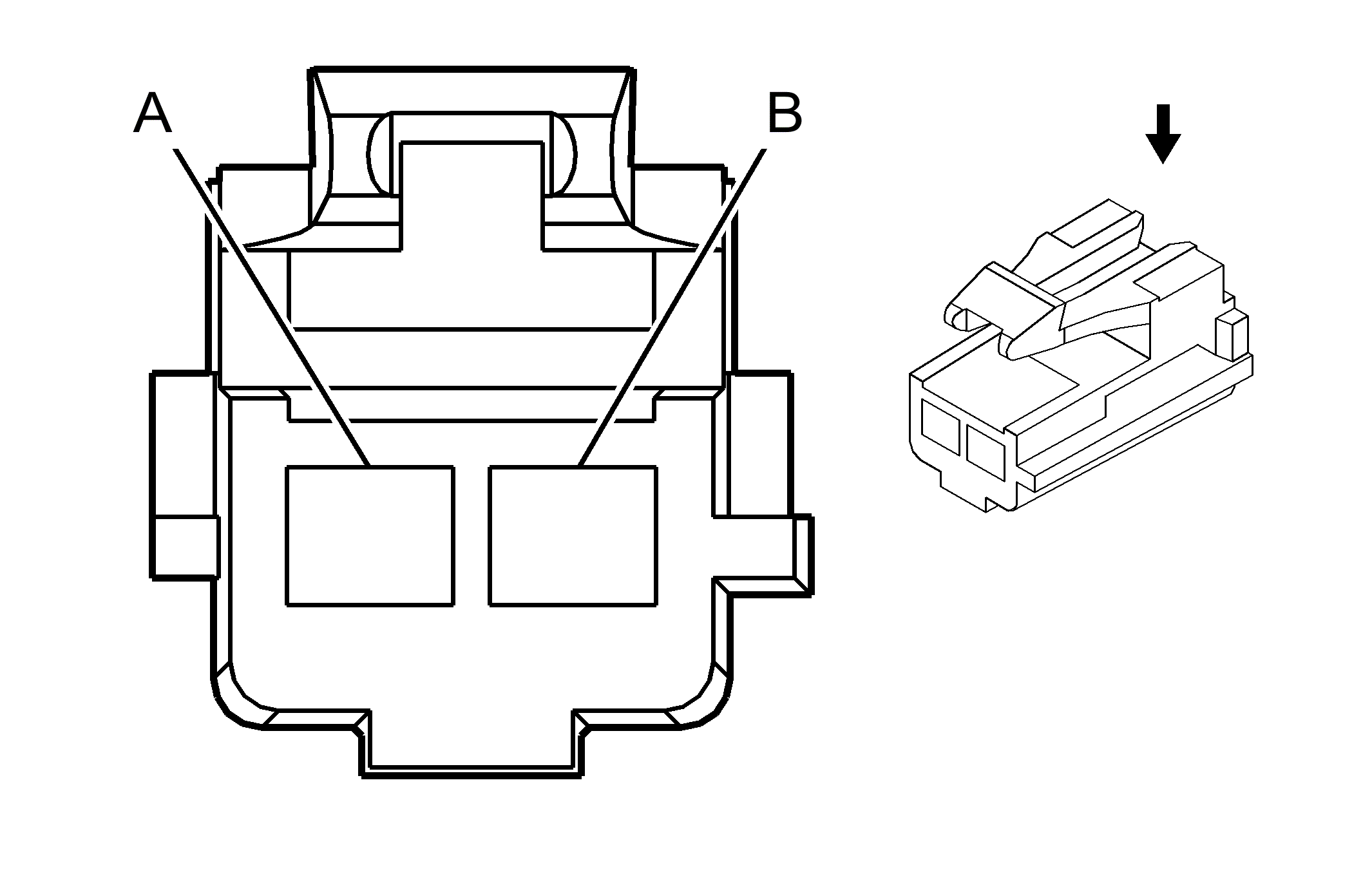

GM153645Courtesy of GENERAL MOTORS CORP.
GM258179Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12129081
  • 2-Way F Metri-Pack 280 Series Flexlock (BLK)
 Connector Part Information
  • 12129155
  • 2-Way M Metri-Pack 280 Series Flexlock (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 2340 Battery Positive Voltage A ORN 2340 Battery Positive Voltage
B WHT 111 Hazard Switch Signal B WHT 111 Hazard Switch Signal
