Inline Harness Connectors: C206
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

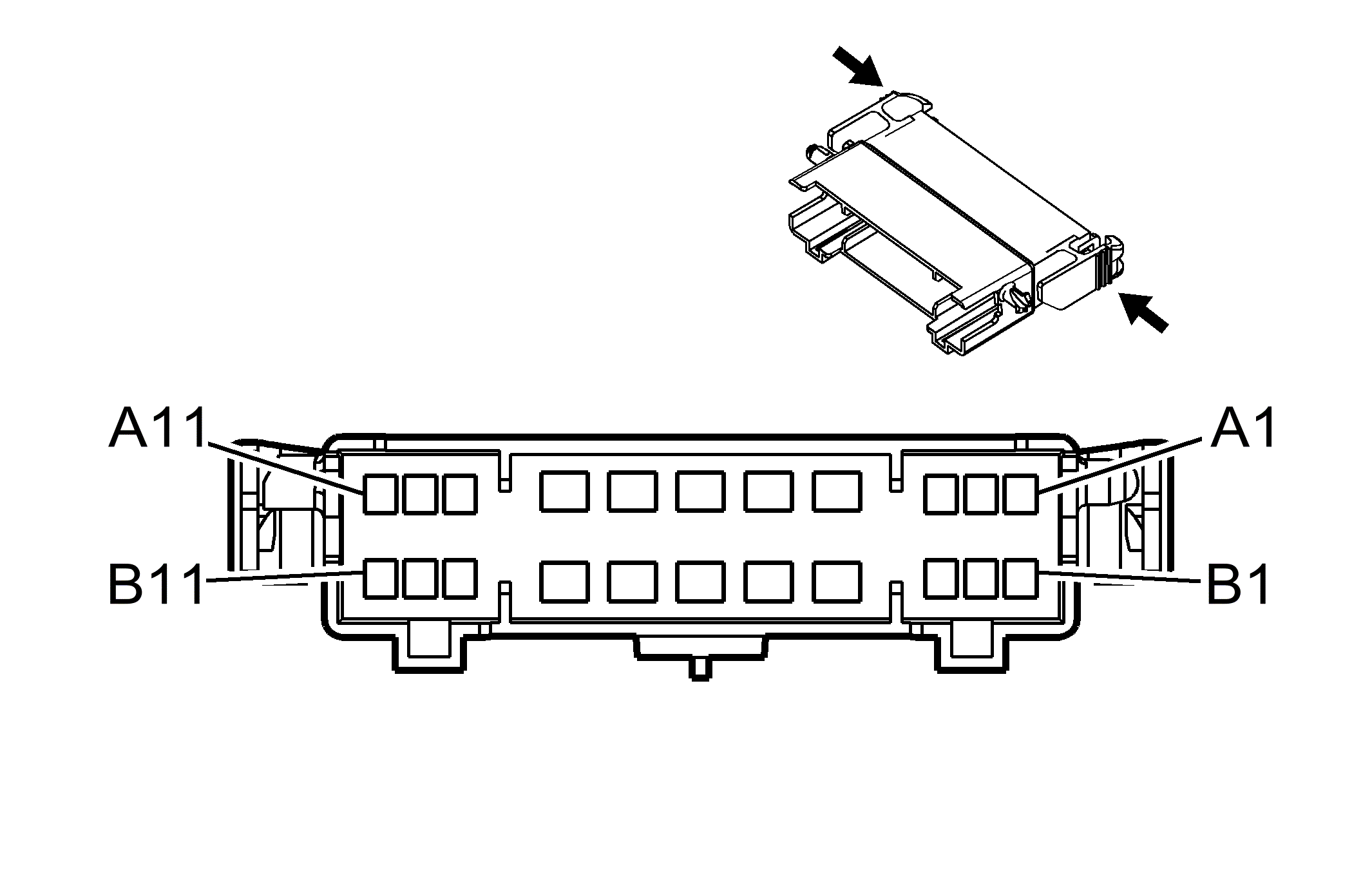

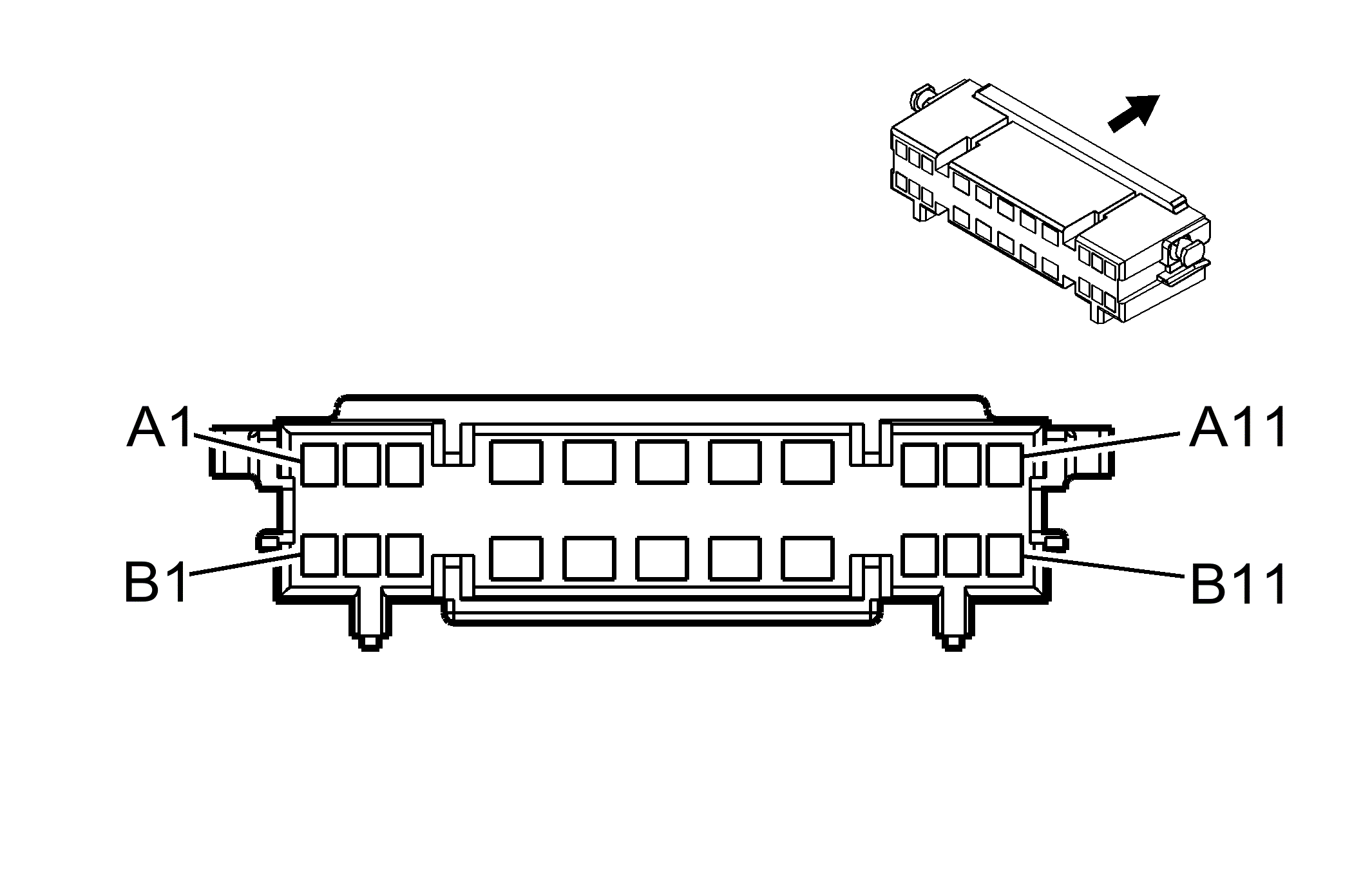

C206 I/P Harness to Body Harness Terminal Identification (Y91/HP2)
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A1 | - | - | Not Used | A1 | - | - | Not Used |
| A2 | YEL | 354 | Discriminating Sensor - Signal | A2 | YEL | 354 | Discriminating Sensor - Signal |
| A3 | GRY | 349 | Discriminating Sensor - Left - Signal | A3 | GRY | 349 | Discriminating Sensor - Left - Signal |
| A4 | LT BLU | 115 | Right Rear Speaker Output (-) | A4 | LT BLU | 115 | Right Rear Speaker Output (-) |
| A5 | DK BLU | 46 | Right Rear Speaker Output (+) | A5 | DK BLU | 46 | Right Rear Speaker Output (+) |
| A6 | TAN/WHT | 2500 | High Speed GMLAN Serial Data Bus+ (HP2) | A6 | TAN/WHT | 2500 | High Speed GMLAN Serial Data Bus+ (HP2) |
| TAN/WHT | 2500 | High Speed GMLAN Serial Data Bus+ (HP2) | |||||
| A7 | YEL | 116 | Left Rear Speaker Output (-) | A7 | YEL | 116 | Left Rear Speaker Output (-) |
| A8 | BRN | 199 | Left Rear Speaker Output (+) | A8 | BRN | 199 | Left Rear Speaker Output (+) |
| A9 | YEL | 1834 | Forward Discriminating Sensor Signal | A9 | YEL | 1834 | Forward Discriminating Sensor Signal |
| A10 | TAN/BLK | 371 | I/P Module Disable Switch - Signal (C99) | A10 | TAN/BLK | 371 | I/P Module Disable Switch - Signal (C99) |
| A11 | PNK | 353 | I/P Module Suppression Indicator Control (C99) | A11 | PNK | 353 | I/P Module Suppression Indicator Control (C99) |
| B1 | DK GRN | 1409 | Discriminating Sensor - Right - Signal | B1 | DK GRN | 1409 | Discriminating Sensor - Right - Signal |
| B2 | DK GRN | 2164 | Side Impact Sensor - Right - Signal (HP2) | B2 | DK GRN | 2164 | Side Impact Sensor - Right - Signal (HP2) |
| B3 | TAN | 2163 | Side Impact Sensor - Right - Voltage (HP2) | B3 | TAN | 2163 | Side Impact Sensor - Right - Voltage (HP2) |
| B4 | TAN | 2501 | High Speed GMLAN Serial Data Bus - (HP2) | B4 | TAN | 2501 | High Speed GMLAN Serial Data Bus - (HP2) |
| TAN | 2501 | High Speed GMLAN Serial Data Bus - (HP2) | |||||
| B5 | DK BLU/ WHT |
2218 | Serial Communications Circuit | B5 | DK BLU/ WHT |
2218 | Serial Communications Circuit |
| B6 | PNK | 1020 | Ignition 0 Voltage (HP2) | B6 | PNK | 1020 | Ignition 0 Voltage (HP2) |
| B7 | PNK | 1939 | Ignition 1 Voltage (HP2) | B7 | PNK | 1939 | Ignition 1 Voltage (HP2) |
| B8 | - | - | Not Used | B8 | - | - | Not Used |
| B9 | ORN | 2740 | Battery Positive Voltage (HP2) | B9 | ORN | 2740 | Battery Positive Voltage (HP2) |
| B10-B11 | - | - | Not Used | B10-B11 | - | - | Not Used |
