Inline Harness Connectors: C205

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C205 Brake/Clutch Harness to Brake Pedal Jumper Terminal Identification (HP2)

GM1243663Courtesy of GENERAL MOTORS CORP.

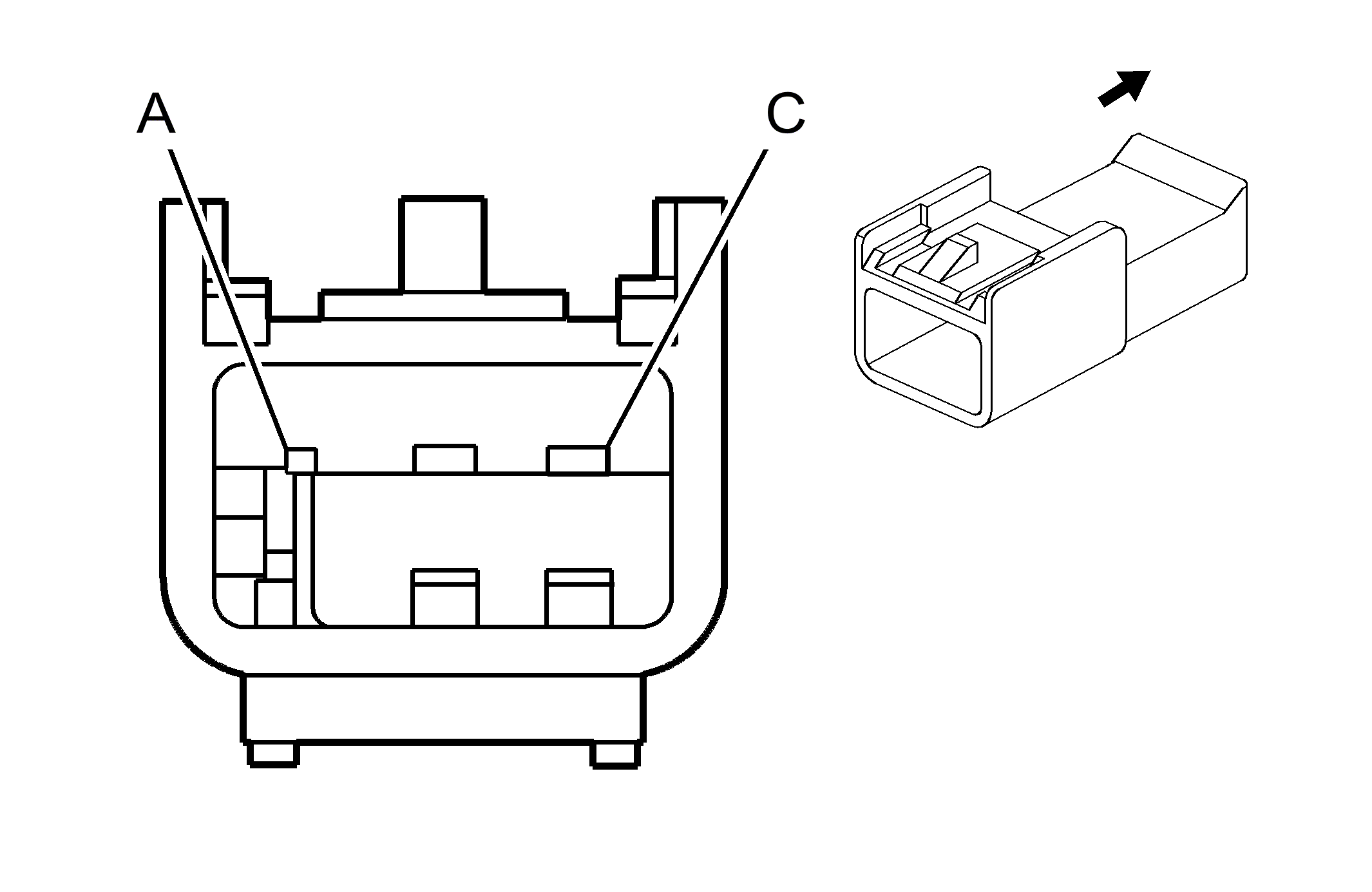

GM1391783Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15332132
  • 3-Way F GT 150 Series (BLK)
 Connector Part Information
  • 15332133
  • 3-Way M GT 150 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN 5688 Brake Pedal Position Sensor 5V Supply A RED 5688 Brake Pedal Position Sensor 5V Supply
B YEL 5066 Brake Pedal Position Sensor Signal B DK BLU 5066 Brake Pedal Position Sensor Signal
C GRY/BLK 5689 Brake Pedal Position Sensor 5V Return C WHT 5689 Brake Pedal Position Sensor 5V Return
