Inline Harness Connectors: C202
WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

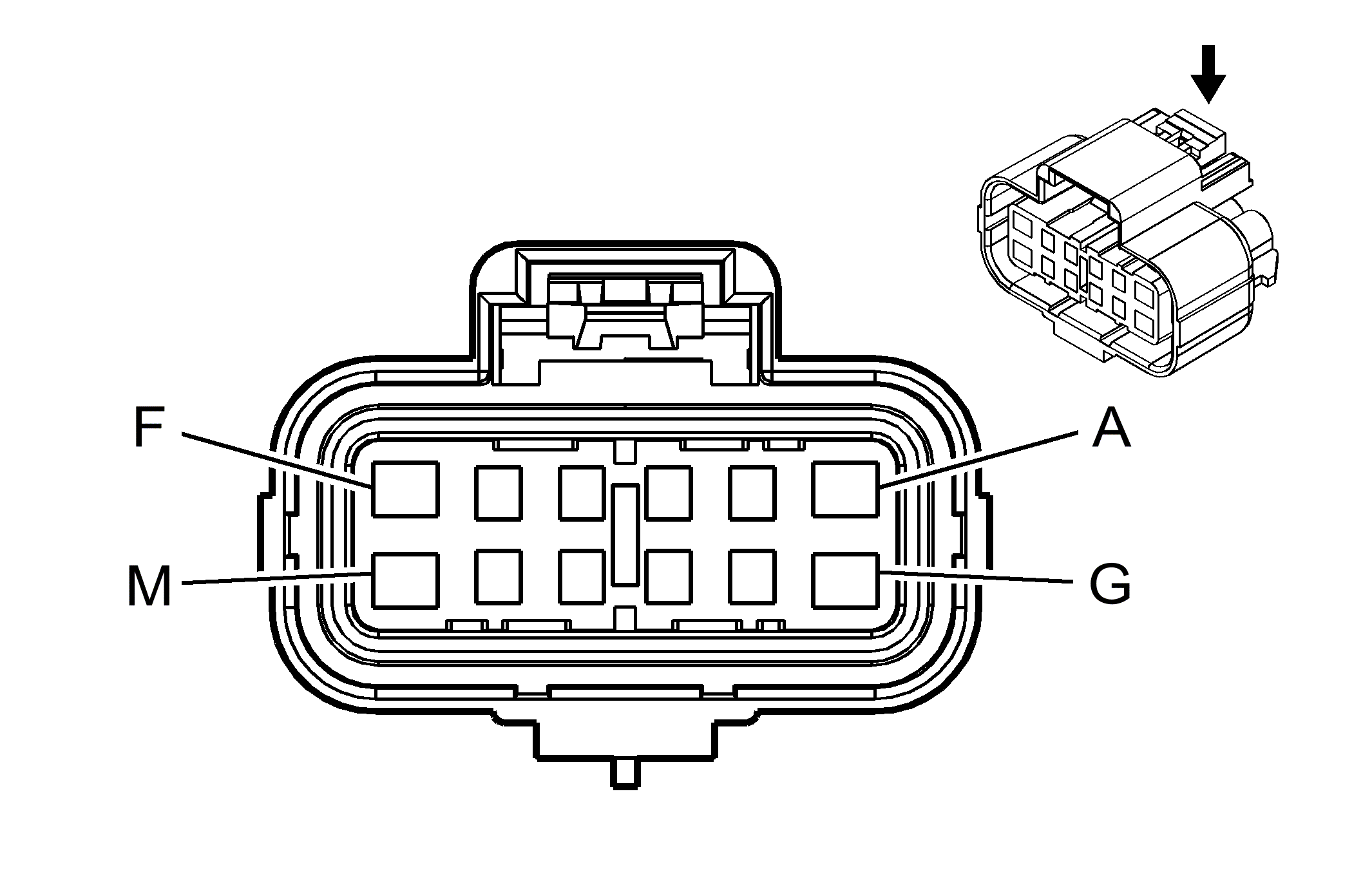

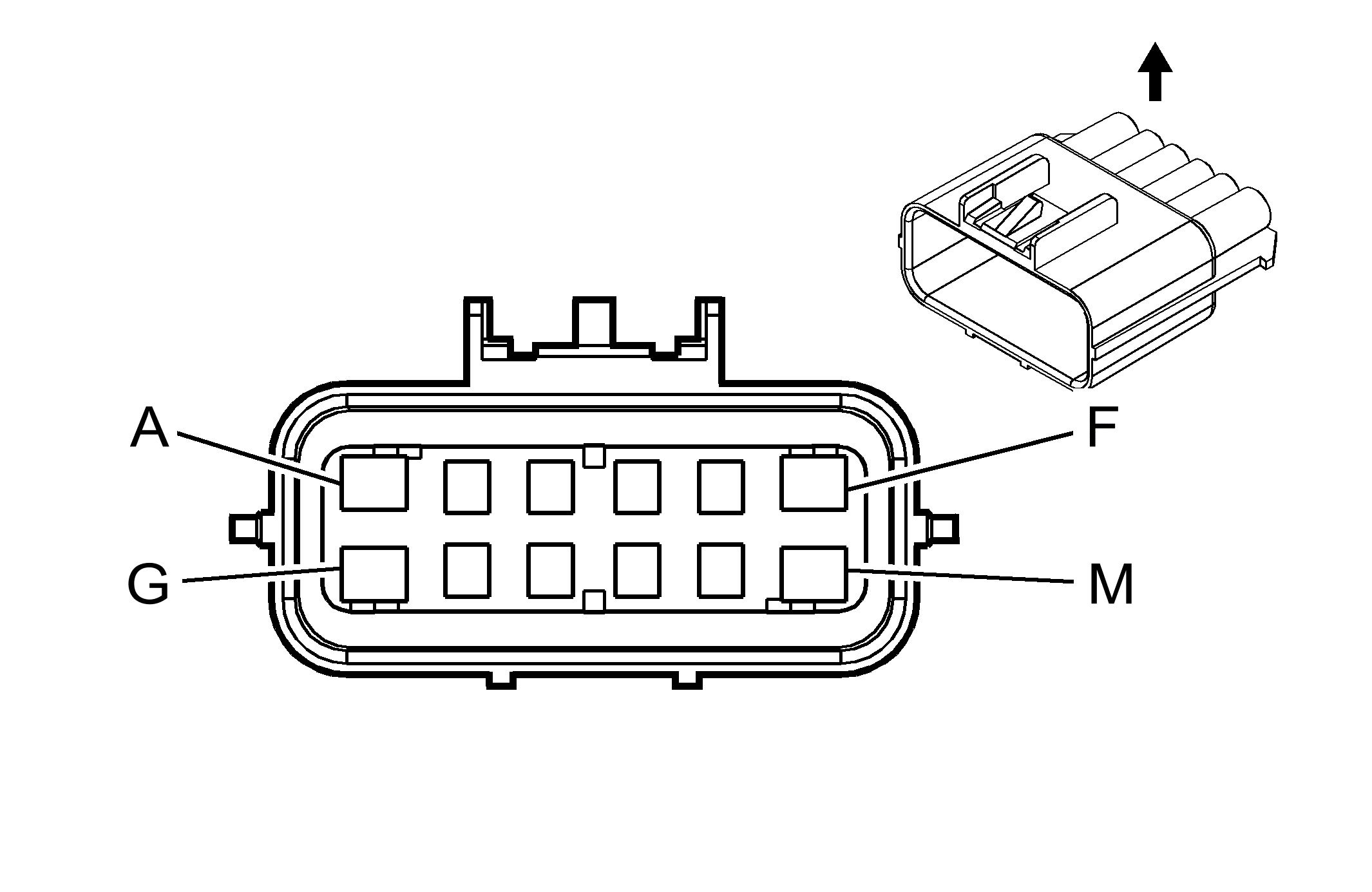

C202 I/P Harness to Brake/Clutch Harness Terminal Identification
| Connector Part Information |
|
Connector Part Information |
|
||||
|---|---|---|---|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function | Pin | Wire Color | Circuit No. | Function |
| A | PPL | 420 | TCC Brake Switch /Cruise Control Release Signal | A | PPL | 420 | TCC Brake Switch /Cruise Control Release Signal |
| B | DK GRN | 1433 | Clutch Start Switch Signal (Man Trans) | B | DK GRN | 1433 | Clutch Start Switch Signal (Man Trans) |
| GRY/BLK | 5689 | Low Reference (HP2) | GRY/BLK | 5689 | Low Reference (HP2) | ||
| C | PNK | 639 | Ignition 1 Voltage (w/o HP2) | C | PNK | 639 | Ignition 1 Voltage (w/o HP2) |
| YEL | 5066 | Brake Pedal Position Sensor Signal (HP2) | YEL | 5066 | Brake Pedal Position Sensor Signal (HP2) | ||
| D | DK GRN /WHT |
1135 | A/T Shift Lock Control Solenoid Supply Voltage | D | DK GRN /WHT |
1135 | A/T Shift Lock Control Solenoid Supply Voltage |
| E | LT GRN/ BLK |
584 | A/T Shift Lock Control Switch Supply Voltage | E | LT GRN/ BLK |
584 | A/T Shift Lock Control Switch Supply Voltage |
| F | BRN | 441 | Ignition 3 Voltage | F | BRN | 441 | Ignition 3 Voltage |
| G | ORN | 1540 | Battery Positive Voltage | G | ORN | 1540 | Battery Positive Voltage |
| H | WHT | 17 | Stop Lamp Switch Signal | H | WHT | 17 | Stop Lamp Switch Signal |
| J | LT BLU | 1134 | Park Brake Switch Signal | J | LT BLU | 1134 | Park Brake Switch Signal |
| K | GRY | 48 | CPP Switch Signal (Man Trans) | K | GRY | 48 | CPP Switch Signal (Man Trans) |
| ORN | 5688 | 5 Volt Reference (HP2) | ORN | 5688 | 5 Volt Reference (HP2) | ||
| L-M | - | - | Not Used | L-M | - | - | Not Used |
