Inline Harness Connectors: C161

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C161 Roof Beacon Harness to Chassis Harness Terminal Identification (5Y0)

GM696940Courtesy of GENERAL MOTORS CORP.

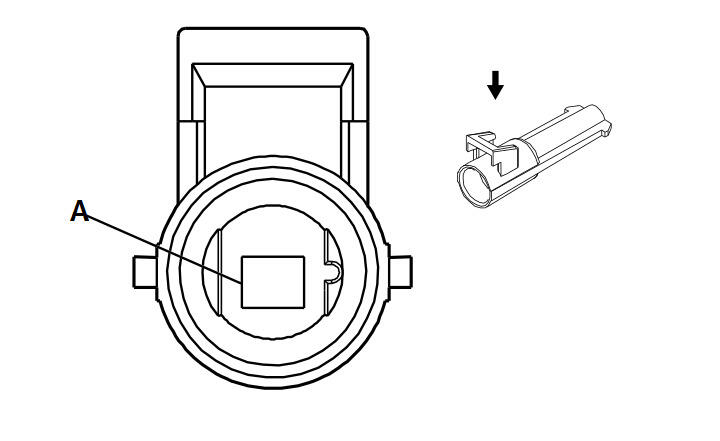

GM696937Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12065172
  • 1-Way F Metri-Pack 280 Series (BLK)
 Connector Part Information
  • 12065171
  • 1-Way M Metri-Pack 280 Series (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BRN 27 Hazard Flasher Signal A BRN 27 Hazard Flasher Signal
