Inline Harness Connectors: C154

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C154 I/P Harness to ATC Harness Terminal Identification (NP1/NP8)

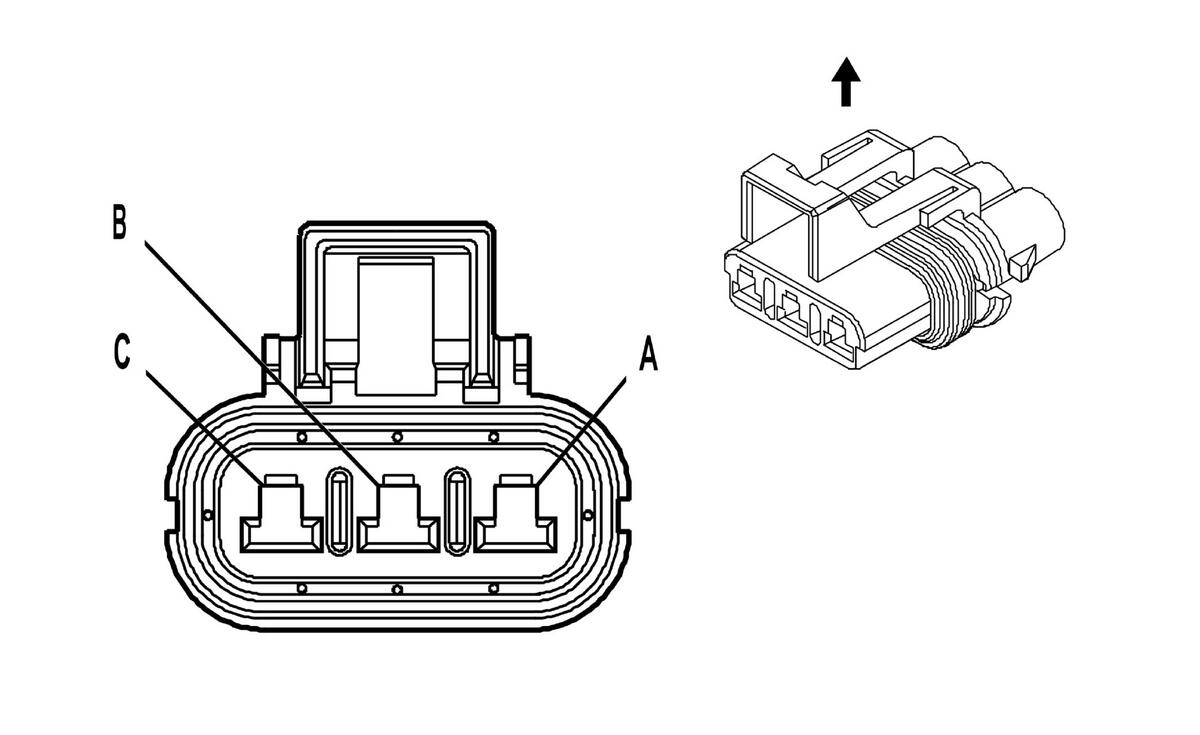

GM847206Courtesy of GENERAL MOTORS CORP.
GM887079Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12040977
  • 3-Way F Metri-Pack 280 Series Sealed (BLK)
 Connector Part Information
  • 15300003
  • 3-Way M Metri-Pack 280 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT GRN/
BLK		 431 5-Volt Reference A LT GRN/
BLK		 431 5-Volt Reference
B TAN 1569 Lock Solenoid Control (NP8) B TAN 1569 Lock Solenoid Control (NP8)
C BLK/WHT 1554 Encoder Low Reference C BLK/WHT 1554 Encoder Low Reference
