Inline Harness Connectors: C150

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C150 4-Wheel Drive Harness to 4-Wheel Drive Jumper Harness Terminal Identification (NP8)

GM684854Courtesy of GENERAL MOTORS CORP.

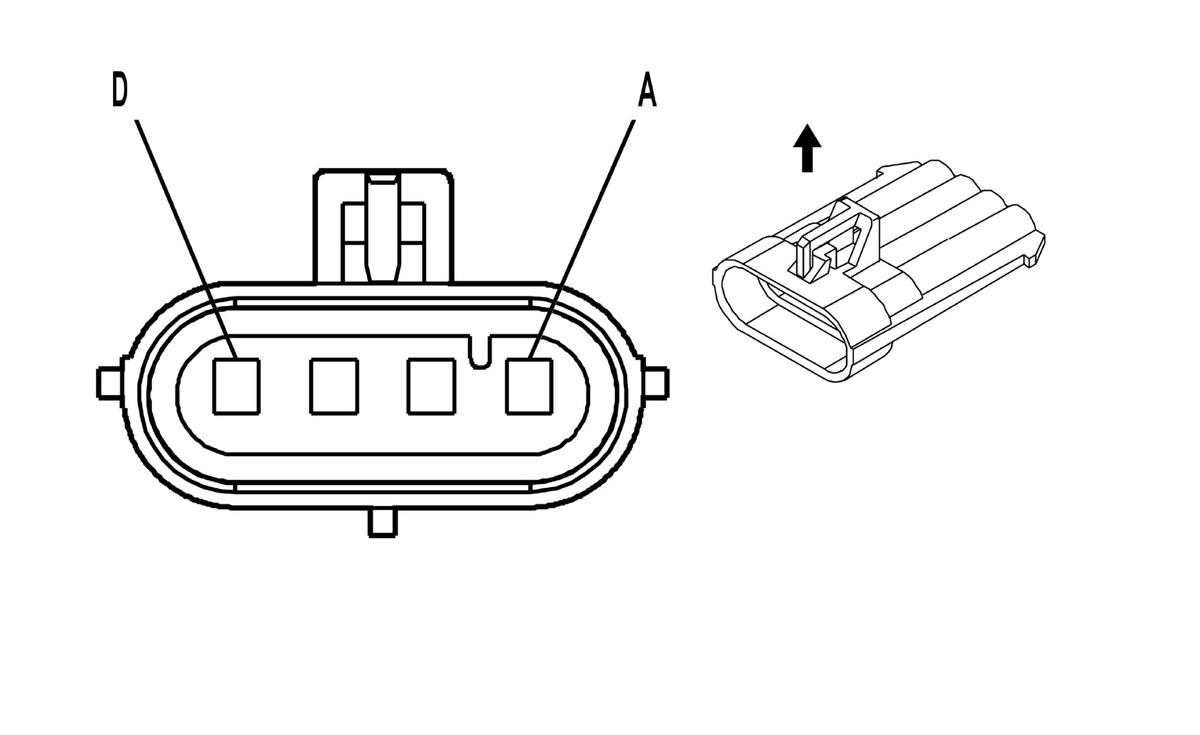

GM396241Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
 Connector Part Information
  • 12162102
  • 4-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK/WHT 1695 Axle Switch Signal A BLK/WHT 1695 Axle Switch Signal
B LT BLU 1296 Axle Actuator - Control B LT BLU 1296 Axle Actuator - Control
C BRN 241 Ignition 3 Voltage C BRN 241 Ignition 3 Voltage
D BLK 2150 Ground D BLK 2150 Ground
