Inline Harness Connectors: C149

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

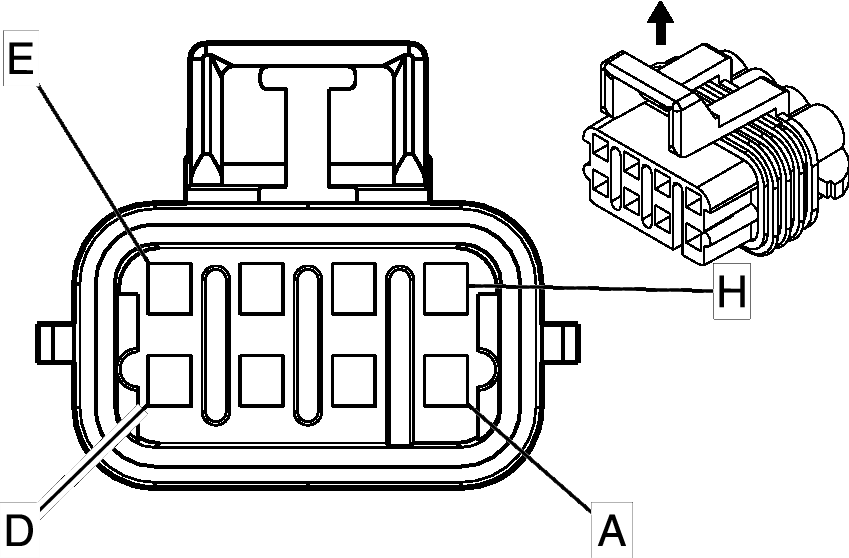

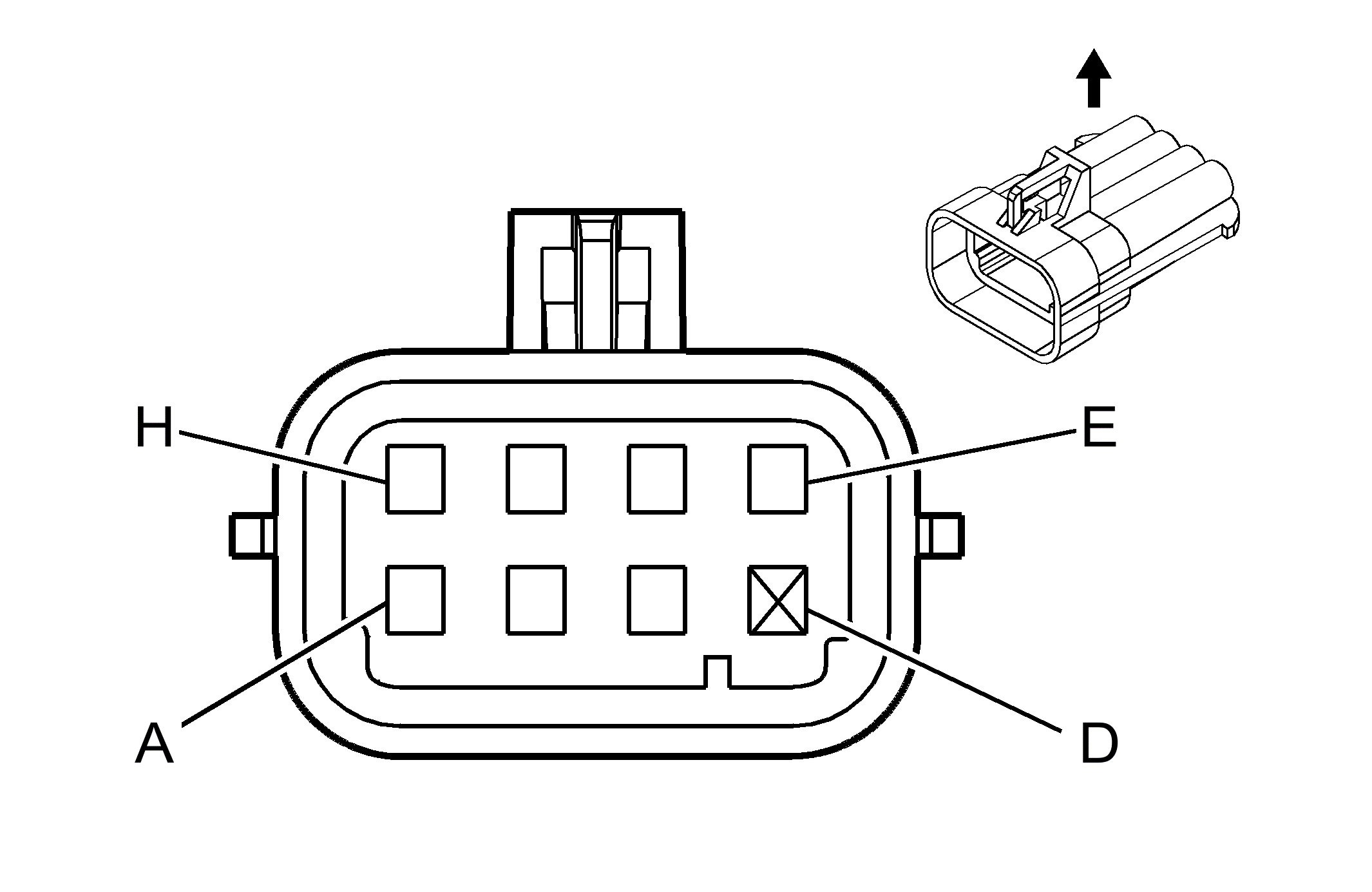

C149 Engine Harness to Coil Jumper Harness Terminal Identification (Gas)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12047938 7-Way F Metri-Pack 150 Series (LT GRY)		Connector Part Information		12047933 7-Way M Metri-Pack 150 Series (LT GRY)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	BLK	550	Ground	A	BLK	550	Ground
B	RED/WHT	2122	IC 2 Control	B	RED	2122	IC 2 Control
C	DK GRN/WHT	2124	IC 4 Control	C	DK GRN	2124	IC 4 Control
D	-	-	Not Available	D	-	-	Not Available
E	BRN/WHT	2130	Low Reference	E	BRN	2130	Low Reference
F	LT BLU/WHT	2126	IC 6 Control	F	LT BLU	2126	IC 6 Control
G	PPL/WHT	2128	IC 8 Control	G	PPL	2128	IC 8 Control
H	PNK	1239	Ignition 1 Voltage	H	PNK	1239	Ignition 1 Voltage
