Inline Harness Connectors: C122

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C122 EHPS Harness to 42V Harness Terminal Identification (HP2)

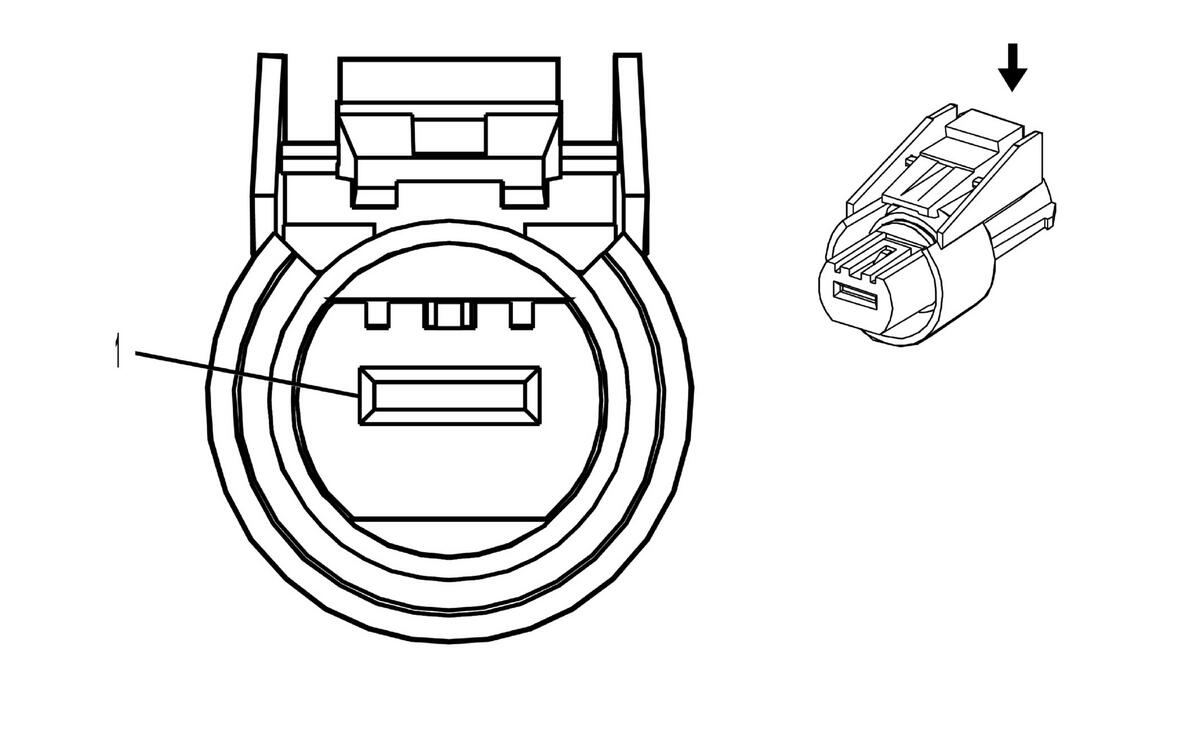

GM814659Courtesy of GENERAL MOTORS CORP.

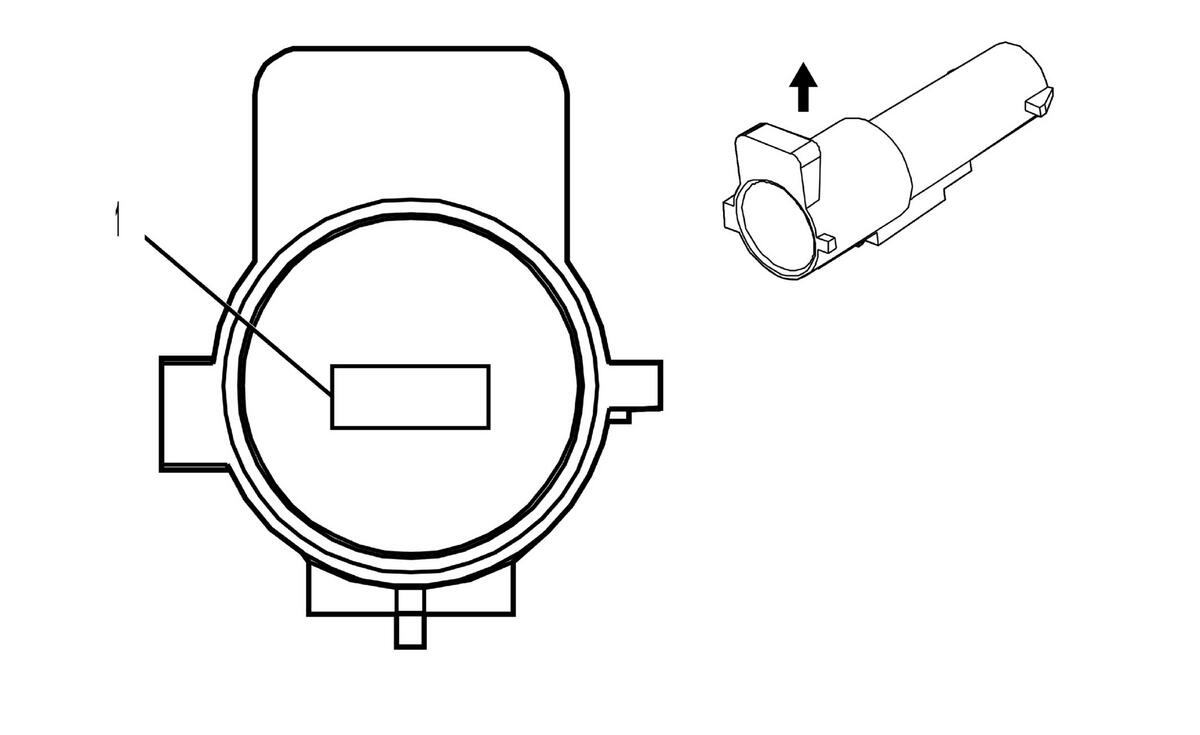

GM814660Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326120
  • 1-Way F Maxi SLD (BLK)
 Connector Part Information
  • 15326119
  • 1-Way M Maxi SLD (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A BLK 5691 EHPS 42V Ground A BLK 5691 EHPS 42V Ground
