Inline Harness Connectors: C111

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C111 Main Engine Harness to Injector 5, and 7 Jumper Harness Terminal Identification (LB7)

GM684908Courtesy of GENERAL MOTORS CORP.

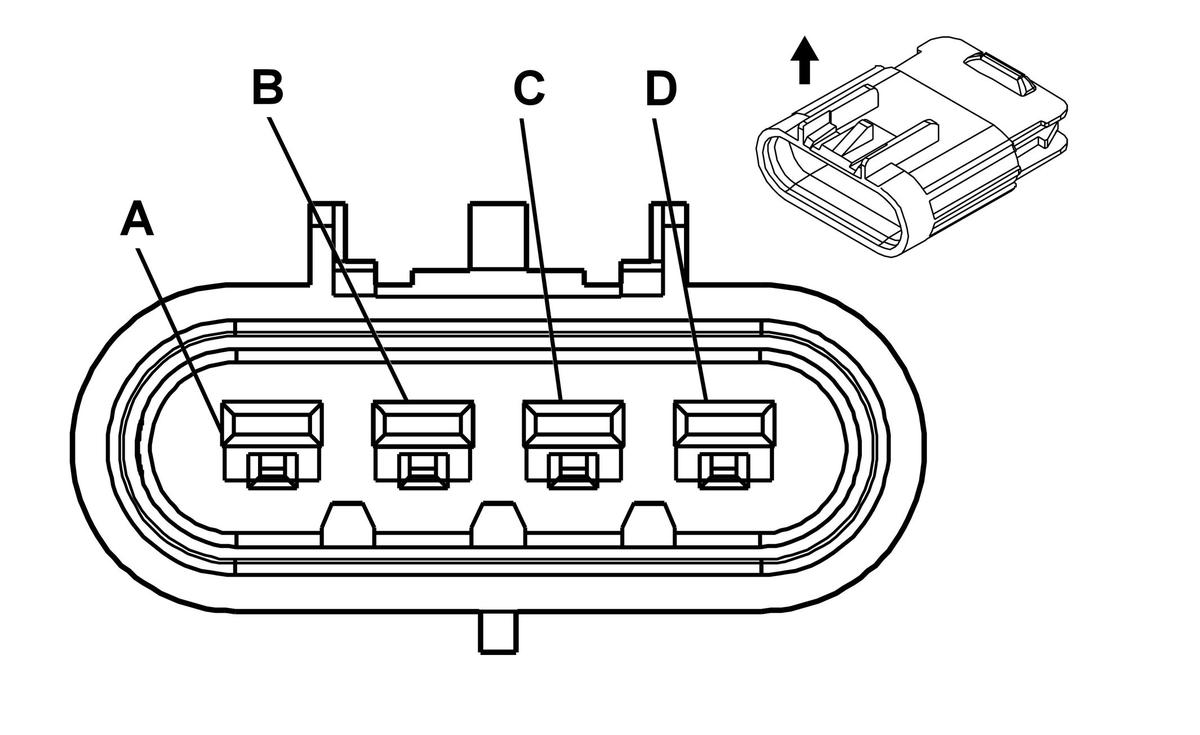

GM697038Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 15326632
  • 4-Way F GT 280 Sealed (BLK)
 Connector Part Information
  • 15326633
  • 4-Way M GT 280 Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A ORN/WHT - Ignition Voltage A RED - Ignition Voltage
B LT GRN/
RED		 - Fuel Injector 5 Command B RED - Fuel Injector 5 Command
C ORN/BLK - Ignition Voltage C YEL - Ignition Voltage
D LT GRN/ORN - Fuel Injector 7 Command D YEL - Fuel Injector 7 Command
