C104 (Ye9)

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

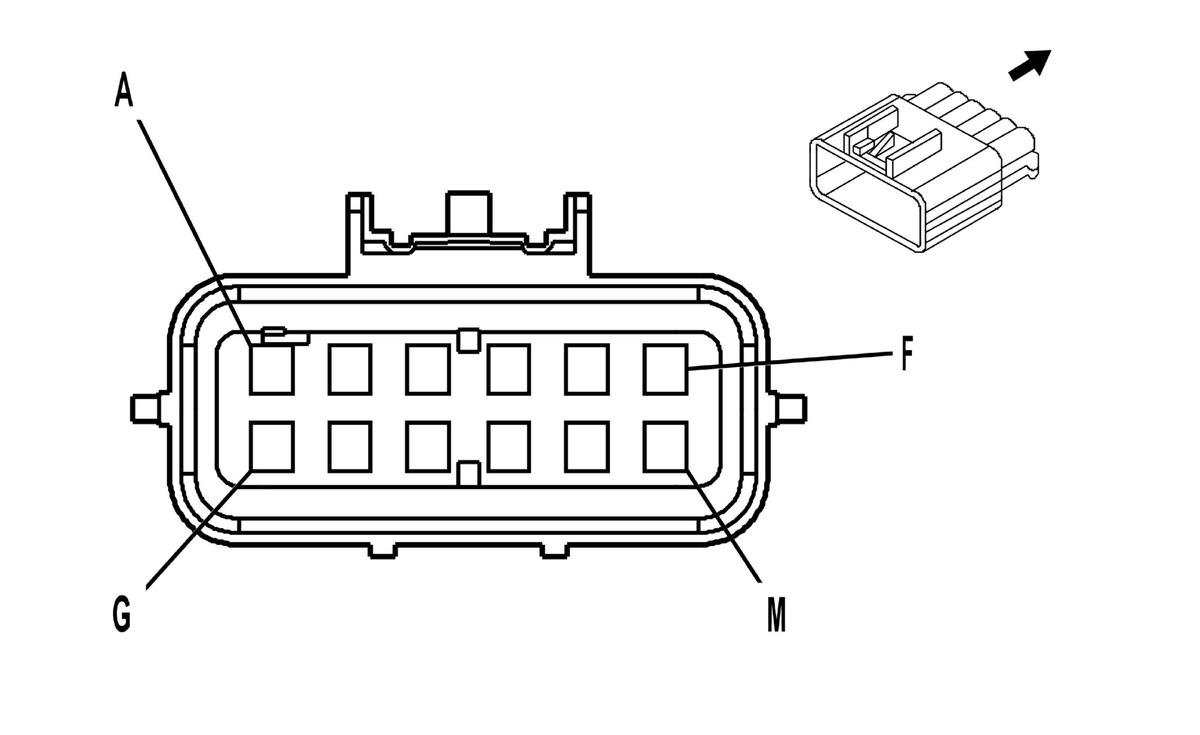

C104 I/P Harness to Forward Lamp Harness Terminal Identification (YE9)

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326849 12-Way F GT 150 SLD 4.0 (BLK)		Connector Part Information		12052189 12-Way M GT 150 SLD 4.0 (BLK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	GRY	349	Discriminating Sensor - Left - Signal	A	GRY	349	Discriminating Sensor - Left - Signal
B	YEL	354	Discriminating Sensor - Signal	B	YEL	354	Discriminating Sensor - Signal
C	YEL	1834	Forward Discriminating Sensor Signal	C	YEL	1834	Forward Discriminating Sensor Signal
D	DK GRN	1409	Discriminating Sensor - Right - Signal	D	DK GRN	1409	Discriminating Sensor - Right - Signal
E	-	-	Not Used	E	-	-	Not Used
F	BLK/WHT	174	Low Washer Fluid Indicator Signal	F	BLK/WHT	174	Low Washer Fluid Indicator Signal
G	DK GRN /WHT	636	Ambient Air Temperature Sensor Signal	G	DK GRN /WHT	636	Ambient Air Temperature Sensor Signal
H	BLK/WHT	1704	Low Reference	H	BLK/WHT	1704	Low Reference
J	LT GRN/ BLK	735	Ambient Air Temperature Sensor Signal (CJ2)	J	LT GRN/ BLK	735	Ambient Air Temperature Sensor Signal (CJ2)
K	BRN	718	Low Reference (CJ2)	K	BRN	718	Low Reference (CJ2)
L-M	-	-	Not Used	L-M	-	-	Not Used
