Inline Harness Connectors: C103

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
C103 I/P Harness to Forward Lamp Harness Terminal Identification (Export)

GM697039Courtesy of GENERAL MOTORS CORP.

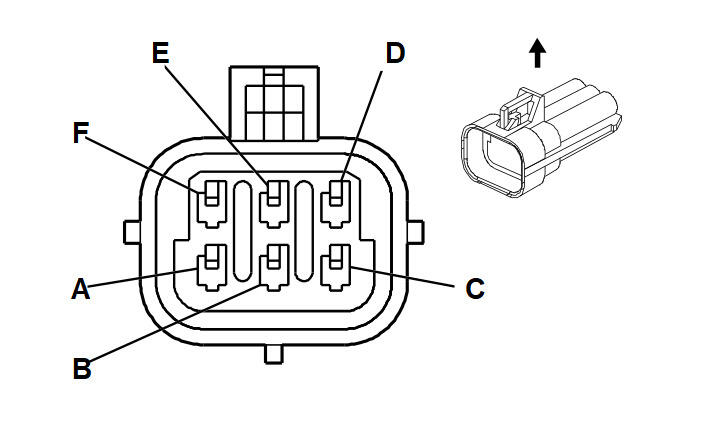

GM333040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12052848
  • 6-Way F Metri-Pack 150 Series Sealed (BLK)
 Connector Part Information
  • 12124107
  • 6-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A - - Not Used A - - Not Used
B BLK 150 Ground B BLK 150 Ground
C DK GRN 189 Headlamp Leveling Motor Supply Voltage C DK GRN 189 Headlamp Leveling Motor Supply Voltage
D - - Not Used D - - Not Used
E PNK 639 Ignition 1 Voltage E PNK 639 Ignition 1 Voltage
F PNK 639 Ignition 1 Voltage F PNK 639 Ignition 1 Voltage
