Inline Harness Connectors: C102

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

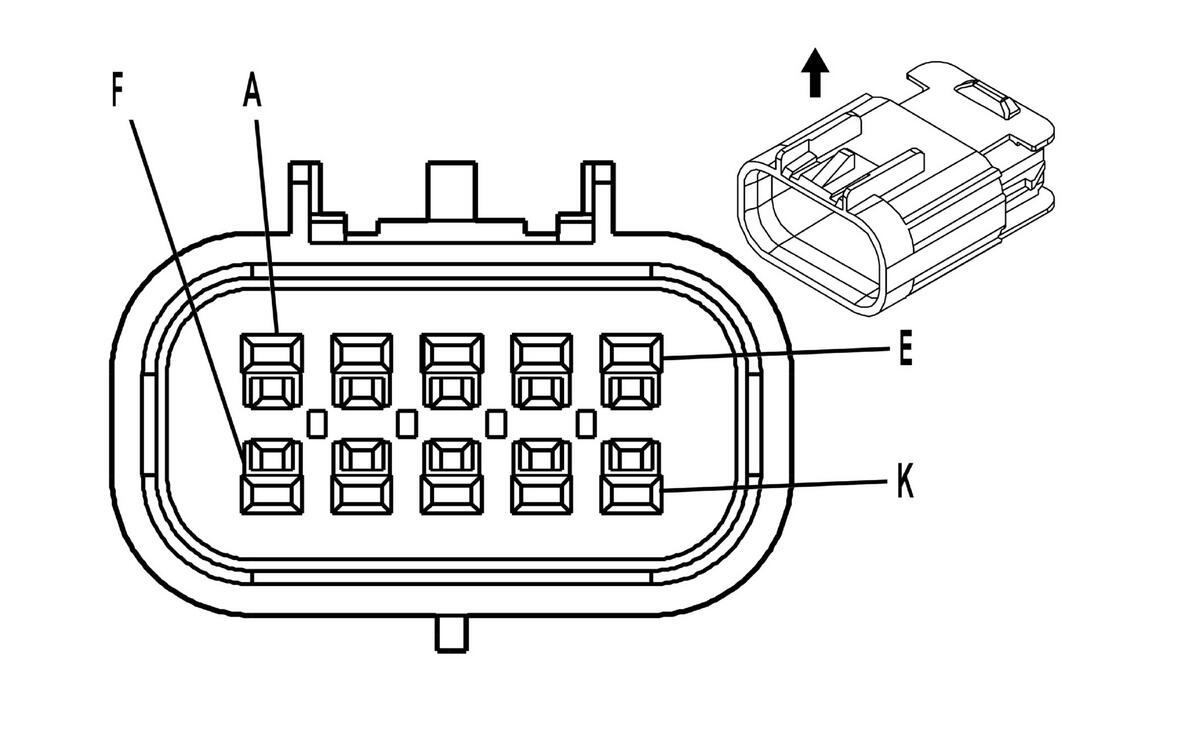

C102 I/P Harness to Chassis Harness Terminal Identification

Courtesy of GENERAL MOTORS CORP.				Courtesy of GENERAL MOTORS CORP.
Connector Part Information		15326842 10-Way F Metri-Pack 150 Series Sealed (BLK)		Connector Part Information		15326847 10-Way M Metri-Pack 150 Series Sealed (BLK)
Pin	Wire Color	Circuit No.	Function	Pin	Wire Color	Circuit No.	Function
A	DK GRN	1619	Trailer Right Rear Turn/Stop Lamp Supply Voltage	A	DK GRN	1619	Trailer Right Rear Turn/Stop Lamp Supply Voltage
B	LT GRN	24	Backup Lamp Supply Voltage	B	LT GRN	24	Backup Lamp Supply Voltage
C	LT BLU	1122	ABS/TCS Class 2 Serial Data	C	LT BLU	1122	ABS/TCS Class 2 Serial Data
D	BRN	441	Ignition 3 Voltage	D	BRN	441	Ignition 3 Voltage
E	-	-	Not Used	E	-	-	Not Used
F	TAN/WHT	1384	Selective Ride Control Switch Signal (ZX3)	F	TAN/WHT	1384	Selective Ride Control Switch Signal (ZX3)
G	RED	122	Rear Fog Lamp Supply Voltage (T79)	G	RED	122	Rear Fog Lamp Supply Voltage (T79)
H	YEL	1618	Trailer Left Rear Turn/Stop Lamp Supply Voltage	H	YEL	1618	Trailer Left Rear Turn/Stop Lamp Supply Voltage
J	LT BLU	1620	CHMSL Supply Voltage	J	LT BLU	1620	CHMSL Supply Voltage
K	PNK	139	Ignition 1 Voltage (w/ Sec Fuel Tank)	K	PNK	139	Ignition 1 Voltage (w/ Sec Fuel Tank)
