Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System (with HP2) or Draining and Filling Cooling System (without HP2) in Engine Cooling.
  2. Remove the air intake tube.
  3. Remove the heater and surge tank hose from the mounting clip.
  4. Using the J 43181  disconnect the heater hose from the heater core inlet.
    Fig 1: Identifying Heater Hose To Heater Core Fittings
    GM362171Courtesy of GENERAL MOTORS CORP.
    1. Install the J 43181  to the heater core pipe.
    2. Close the tool around the heater core pipe.
    3. Firmly pull the tool into the quick connect end of the heater hose.
    4. Firmly grasp the heater hose. Pull the heater hose forward in order to disengage the hose from the heater core.

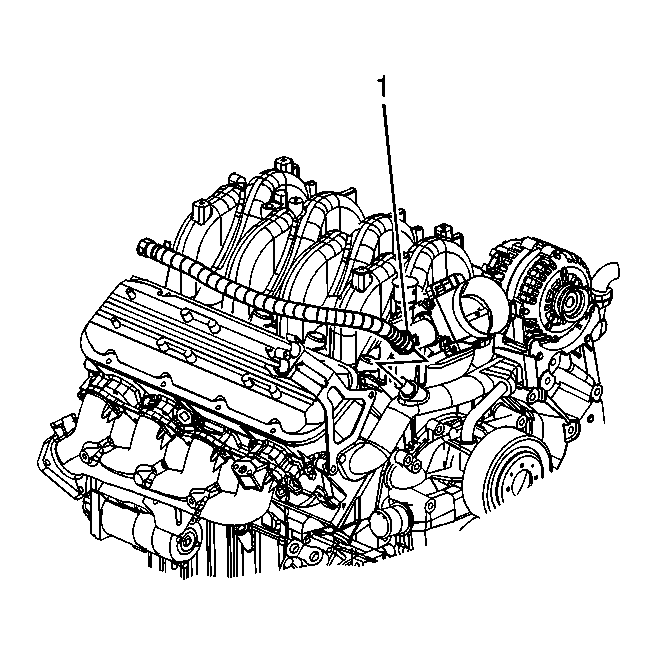

    5. Fig 2: Removing Inlet Heater Hose From The Engine Coolant Inlet Fitting (L18)
    GM651354Courtesy of GENERAL MOTORS CORP.
  5. Remove the inlet heater hose (1) from the engine coolant inlet fitting.
  6. Remove the inlet heater hose.
