Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, 2004 Chevrolet Cab & Chassis Silverado, and 2003 GMC Sierra. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to Battery Disconnect Caution in Cautions and Notices.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure (Single Battery) or Battery Negative Cable Disconnect/Connect Procedure (Auxiliary Battery) in Engine Electrical.
  2. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
  3. For all 15 series vehicles, relieve the tension from the park brake cable by pulling down on the park brake cable in front of the equalizer then removing the cables from the equalizer bar.
    4. Fig 1: Equalizer Bar & Park Brake Cable - Rear
    GM791349Courtesy of GENERAL MOTORS CORP.
  4. For 25/35 series vehicles, disable the park brake cable automatic adjuster. Refer to Disabling the Park Brake Cable Automatic Adjuster .
  5. Remove the safety stands and lower the vehicle.
  6. Remove the left side hinge pillar panel. Refer to Trim Panel Replacement - Hinge Pillar in Interior Trim.
  7. Remove the MID-bussed electrical center from the bracket.
  8. Disconnect the park brake warning lamp connection.
    9. Fig 2: Park Brake Warning Lamp Switch Electrical Connector
    GM606395Courtesy of GENERAL MOTORS CORP.
  9. Disconnect the park brake release cable and housing from the park brake lever.
    10. Fig 3: View Of Park Brake Release Lever Handle & Bolt
    GM376009Courtesy of GENERAL MOTORS CORP.
  10. Remove the park brake lever mounting nuts.

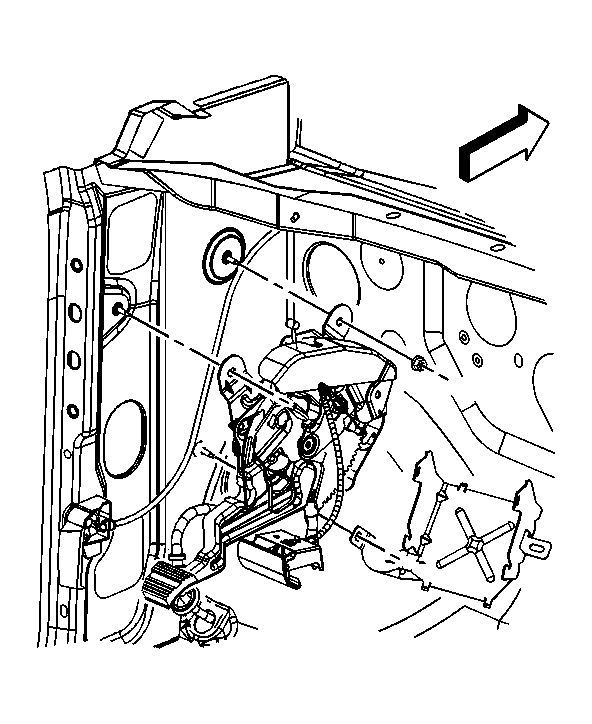

    11. Fig 4: Park Brake Lever & Mounting Nuts
    GM376012Courtesy of GENERAL MOTORS CORP.
  11. Disconnect the front park brake cable from the park brake lever.
    12. Fig 5: Front Brake Cable & Park Brake Lever
    GM913310Courtesy of GENERAL MOTORS CORP.
  12. Remove the park brake lever.
