Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System (with HP2)  or Draining and Filling Cooling System (without HP2) .
  2. Reposition the vent inlet hose clamp from the radiator.
  3. Remove the vent inlet hose from the radiator.
  4. Reposition the vent inlet hose clamp from the surge tank.
  5. Remove the vent inlet hose from the surge tank.

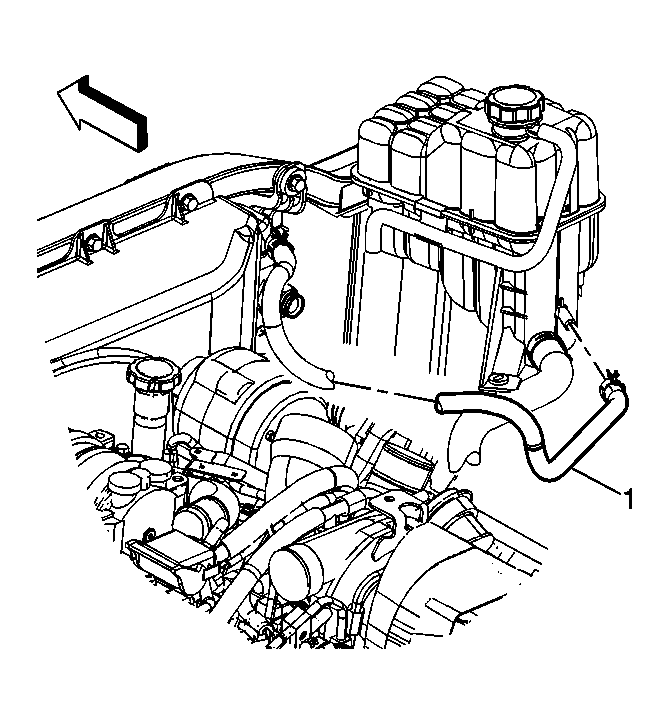

    6. Fig 1: View Of Surge Tank & Inlet Hose
    GM721988Courtesy of GENERAL MOTORS CORP.
