Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Refer to Draining and Filling Cooling System (with HP2)  or Draining and Filling Cooling System (without HP2) .
  2. Position the inlet hose clamp from the radiator.
  3. Remove the inlet hose from the radiator.

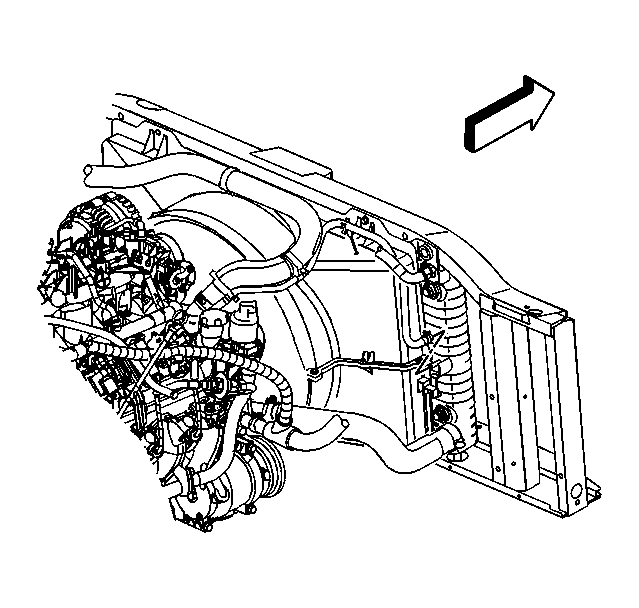

    4. Fig 1: View Of Radiator Inlet & Outlet Hoses
    GM659469Courtesy of GENERAL MOTORS CORP.
  4. Position the outlet hose clamp from the radiator.
  5. Remove the radiator outlet hose from the radiator.
  6. Remove the lower fan shroud. Refer to Fan Shroud Replacement - Lower .
  7. Position the radiator vent inlet hose clamp from the radiator.
  8. Remove the vent inlet hose from the radiator.
    9. Fig 2: View Of Surge Tank Inlet Hose & Radiator
    GM404039Courtesy of GENERAL MOTORS CORP.
  9. Remove the engine oil cooler lines from the radiator. Refer to Engine Oil Cooler Pipe/Hose Quick Connect Fitting .
  10. Remove the transmission oil cooler lines from the radiator. Refer to Transmission Fluid Cooler Line Quick Connect Fitting in Transmission 4L80E or Transmission Fluid Cooler Line Quick Connect Fitting in Transmission 4L60E.
    11. Fig 3: View Of Radiator & Bolts
    GM660895Courtesy of GENERAL MOTORS CORP.
  11. Remove the radiator bolts.
  12. Remove the radiator from the vehicle.
