Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator. Refer to Radiator Replacement (EXC 8.1L)  or Radiator Replacement (8.1L) .
  2. Remove the radiator air baffle retainers.

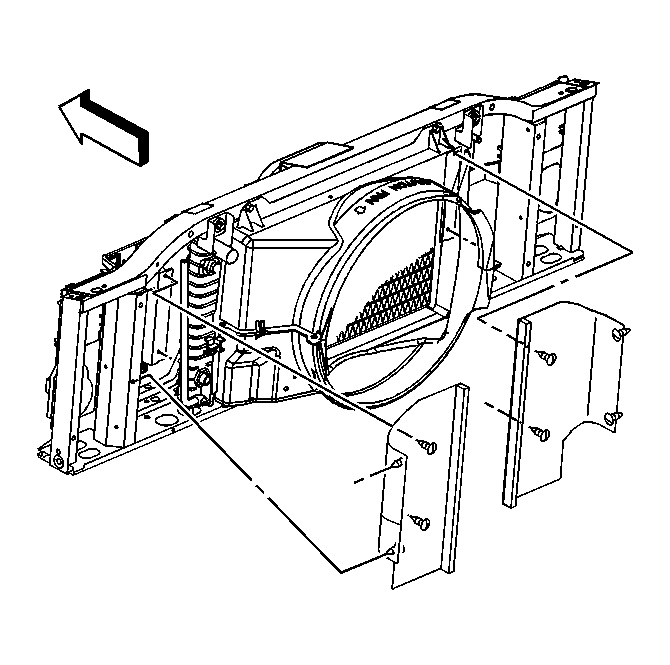

    3. Fig 1: View Of Radiator Air Baffle & Retainers
    GM375769Courtesy of GENERAL MOTORS CORP.
  3. Remove the radiator air baffles.
