Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the upper fan shroud.
NOTE: Refer to Fastener Notice in Cautions and Notices.
Install the fan shroud bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).

Fig 1: View Of Fan Shroud & Bolts

GM362162

Courtesy of GENERAL MOTORS CORP.

Install the fan shroud retainers.

Fig 2: View Of Fan Shroud Retainers

GM362174

Courtesy of GENERAL MOTORS CORP.

Connect the TCM electrical connectors (1).

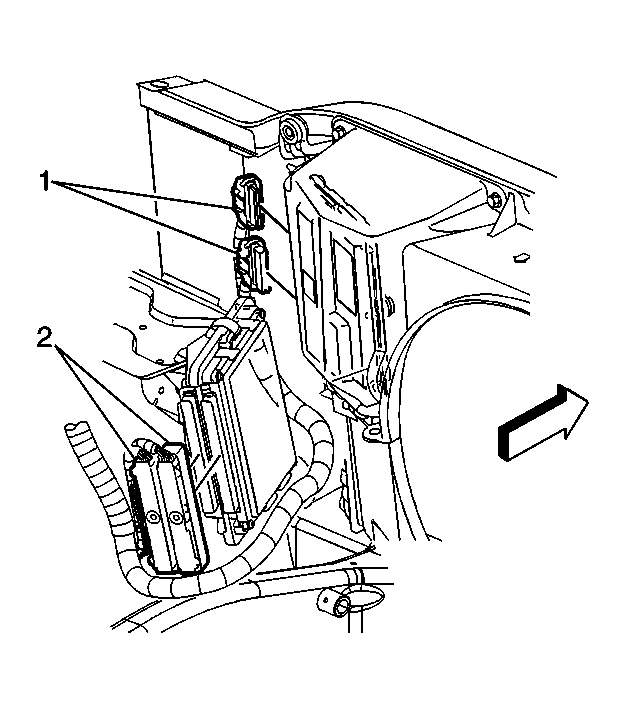

Fig 3: View Of TCM Electrical Connectors

GM700599

Courtesy of GENERAL MOTORS CORP.

Install the TCM and cover.
Tighten the TCM electrical connector bolts.
Tighten: Tighten the bolts to 8 N.m (71 lb in).
Install the TCM cover to the fan shroud.
Install the TCM cover bolts.
Tighten: Tighten the bolts to 9 N.m (80 lb in).

Fig 4: View Of TCM Cover & Bolts

GM700600

Courtesy of GENERAL MOTORS CORP.

Install the engine harness clip to the PCM cover.

Fig 5: View Of PCM Engine Harness Clip

GM700598

Courtesy of GENERAL MOTORS CORP.

Install the A/C line retainer to the fan shroud.
Install the air cleaner outlet duct.

Fig 6: View Of Air Cleaner Outlet Duct

GM700979

Courtesy of GENERAL MOTORS CORP.

Tighten the air cleaner outlet duct clamp at the throttle body.
Tighten: Tighten the clamp screws to 7 N.m (62 lb in).
Tighten the air cleaner outlet duct clamp at the mass airflow sensor.
Tighten: Tighten the clamp screws to 7 N.m (62 lb in).
