"U" Series (Front Camber)

WARNING: This page does not describe the selected car, but rather 47 other vehicles, including the 2001 Pontiac Montana, 2001 Pontiac Aztek, 2001 Oldsmobile Silhouette, 2001 Oldsmobile Bravada, and 2001 GMC Sonoma. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support vehicle. Remove front wheel. Remove strut. Put strut in a vise. Use a file to elongate bolt hole at lower end of strut. See Fig 1 .
  2. Install strut, but DO NOT fully tighten strut mounting bolts at knuckle. Lower vehicle. Adjust camber to specification. See WHEEL ALIGNMENT SPECIFICATIONS  table. Tighten bolts to specification. See TORQUE SPECIFICATIONS  .
Fig 1: Elongating Bolt Hole For Camber Adjustment ("A", "B" & "U" Series)
G95G14627Courtesy of GENERAL MOTORS CORP.

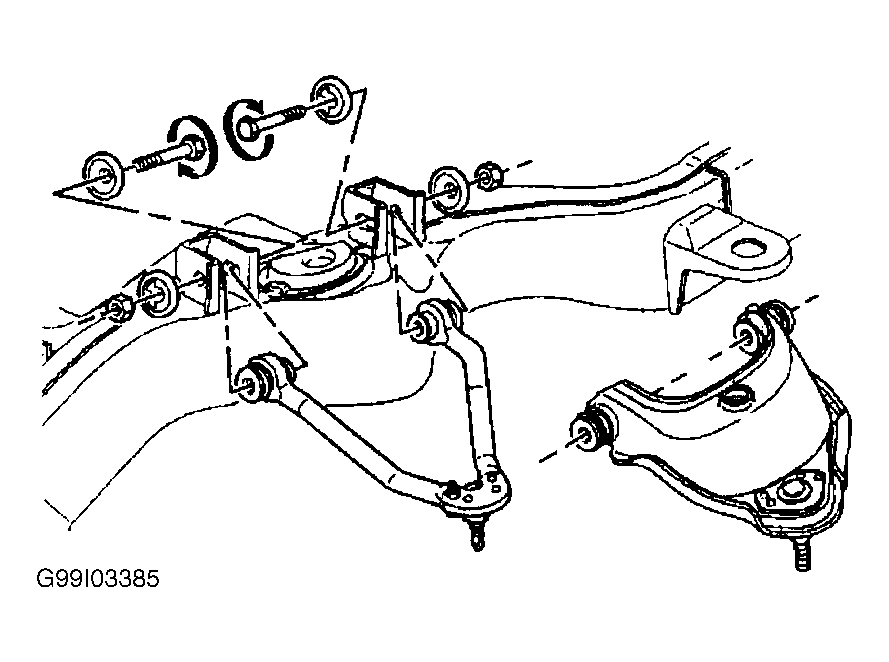

Fig 2: View Of Typical Upper Control Arm & Frame Brackets ("C" & "K" Old Style & "G" Series)
G99I03385Courtesy of GENERAL MOTORS CORP.

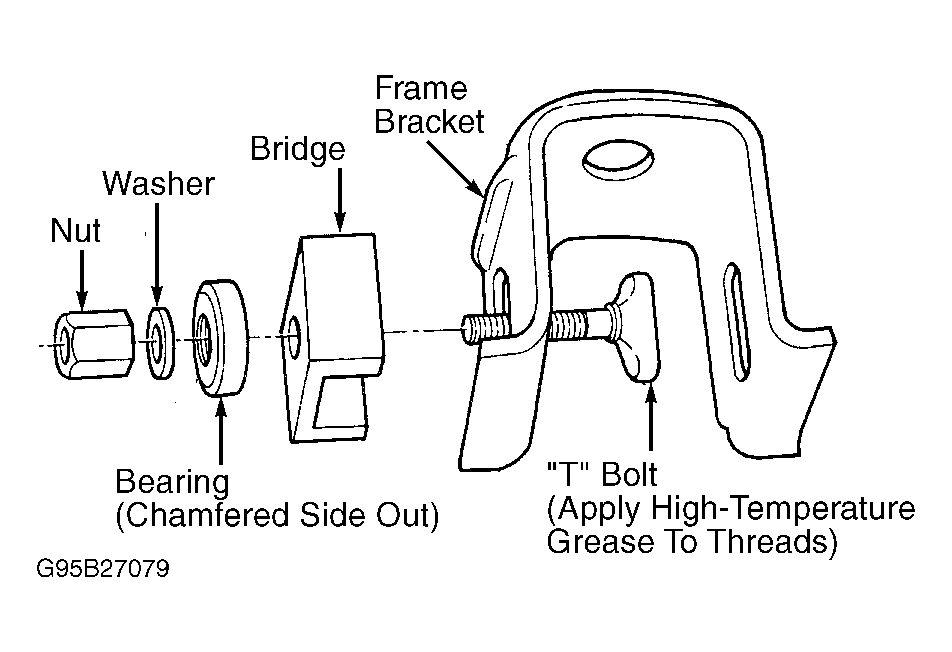

Fig 3: Installing Knockout Remover ("C" & "K" Old Style & "G" Series)
G95B27079Courtesy of GENERAL MOTORS CORP.

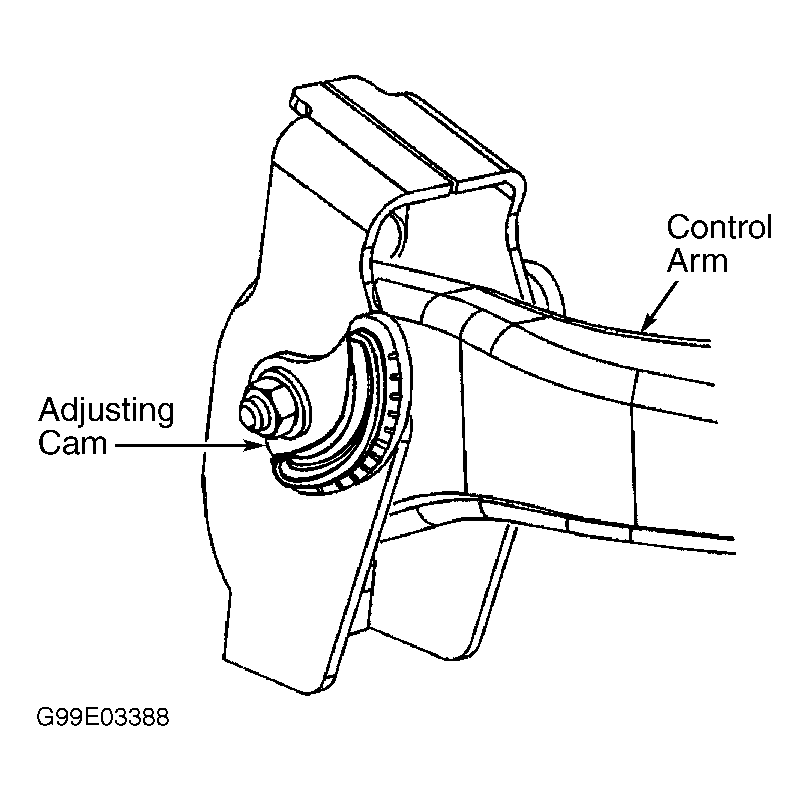

Fig 4: Adjusting Caster & Camber ("C" & "K" Series - Old Style)
G99E03388Courtesy of GENERAL MOTORS CORP.
Fig 5: Adjusting Caster & Camber ("M" & "S" Series)
G90I04484Courtesy of GENERAL MOTORS CORP.
Fig 6: Adjusting Caster & Camber ("L" & "T" Series)
G90D04486Courtesy of GENERAL MOTORS CORP.
