Removal & Installation (Blazer & Jimmy Canadian - 2-Door)

Raise and support vehicle. Remove shield behind left rear wheel, near fuel tank, to access EVAP canister. See Fig 1. Remove EVAP canister retainer. See Fig 2. Disconnect vent hose from EVAP canister. Disconnect fuel tank pipe and purge pipe from EVAP canister. Remove EVAP canister. To install, reverse removal procedure. Check for leaks.

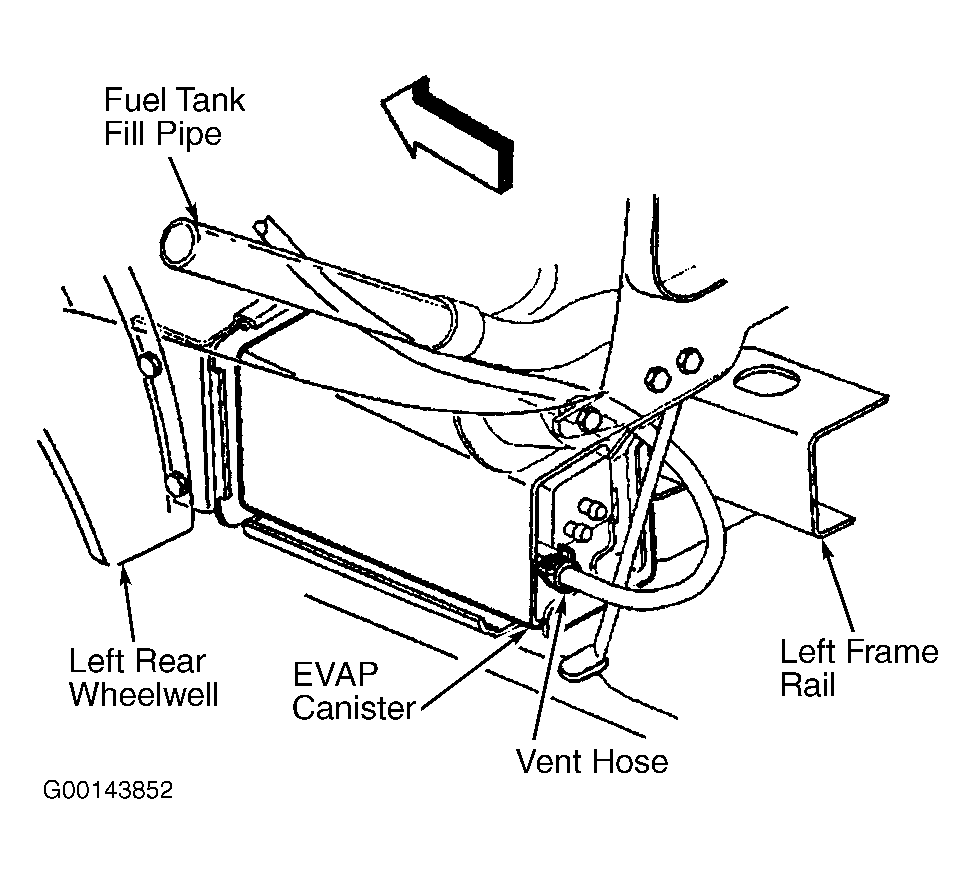

Fig 1: Locating EVAP Canister (Blazer & Jimmy Canadian - 2-Door)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Removing/Installing EVAP Canister (Blazer & Jimmy Canadian - 2-Door)

Courtesy of GENERAL MOTORS CORP.
