Removal & Installation (2.2L)

  1. Raise and support vehicle. Remove right front wheel/tire assembly. Disconnect EVAP canister purge solenoid harness connector. See Fig 1. Disconnect purge pipe from EVAP canister purge solenoid.
  2. Remove EVAP canister purge solenoid mounting nut. Remove EVAP canister purge solenoid. Remove EVAP canister purge solenoid from the mounting bracket. To install, reverse removal procedure. Tighten EVAP canister purge solenoid mounting nut to specification. See TORQUE SPECIFICATIONS .

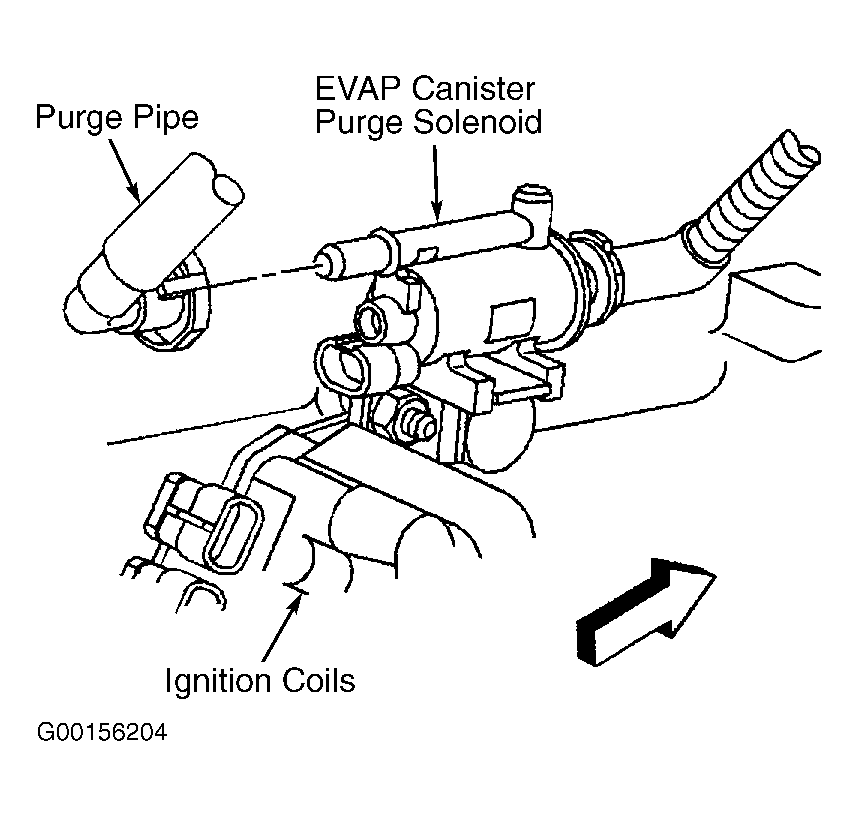

Fig 1: Locating EVAP Canister Purge Solenoid (2.2L)
G00156204Courtesy of GENERAL MOTORS CORP.
