Vacuum Hose Diagram(S)

NOTE: Vacuum diagrams for applications not shown were not available from manufacturer. Use underhood emission and vacuum labels. See Fig 1 - Fig 15 .

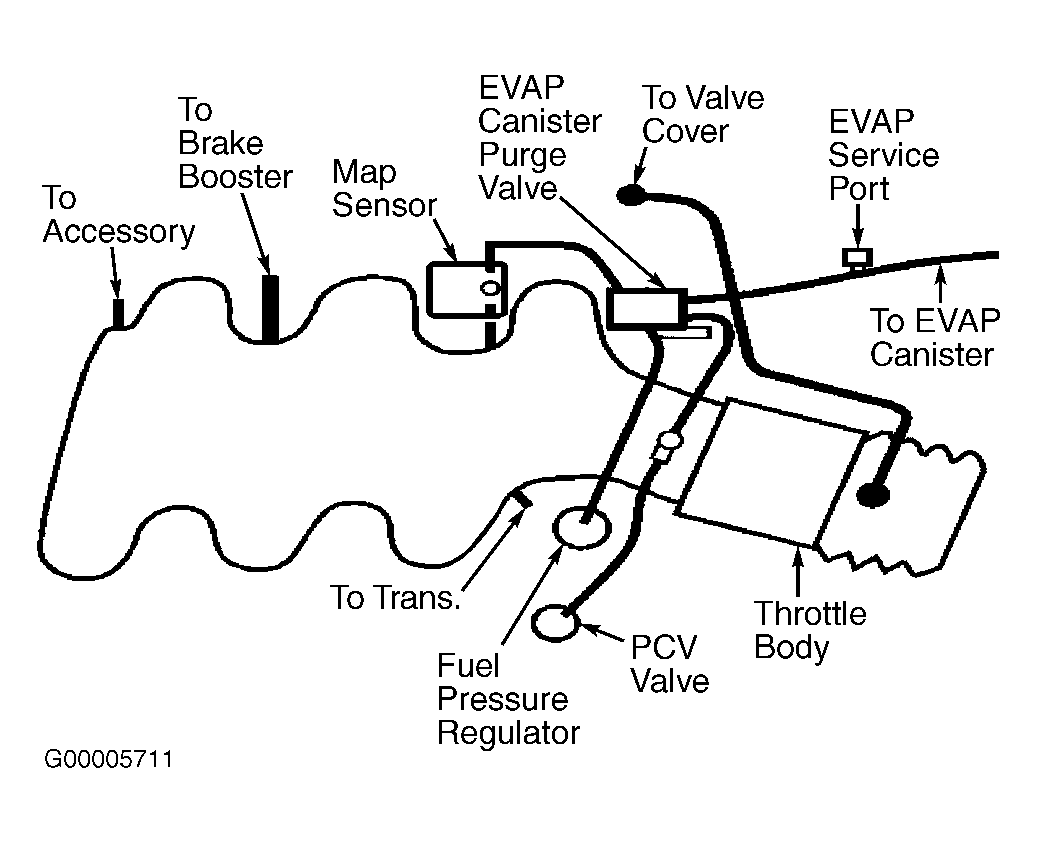

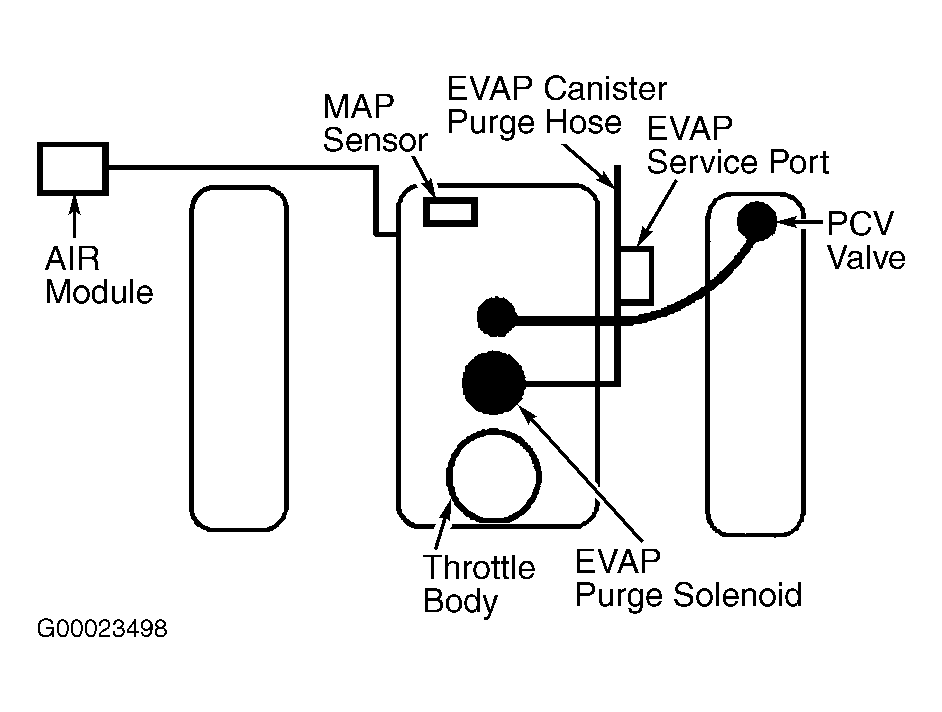

Fig 1: Vacuum Diagram - 2.0L SFI (VIN C) Tracker

Courtesy of GENERAL MOTORS CORP.

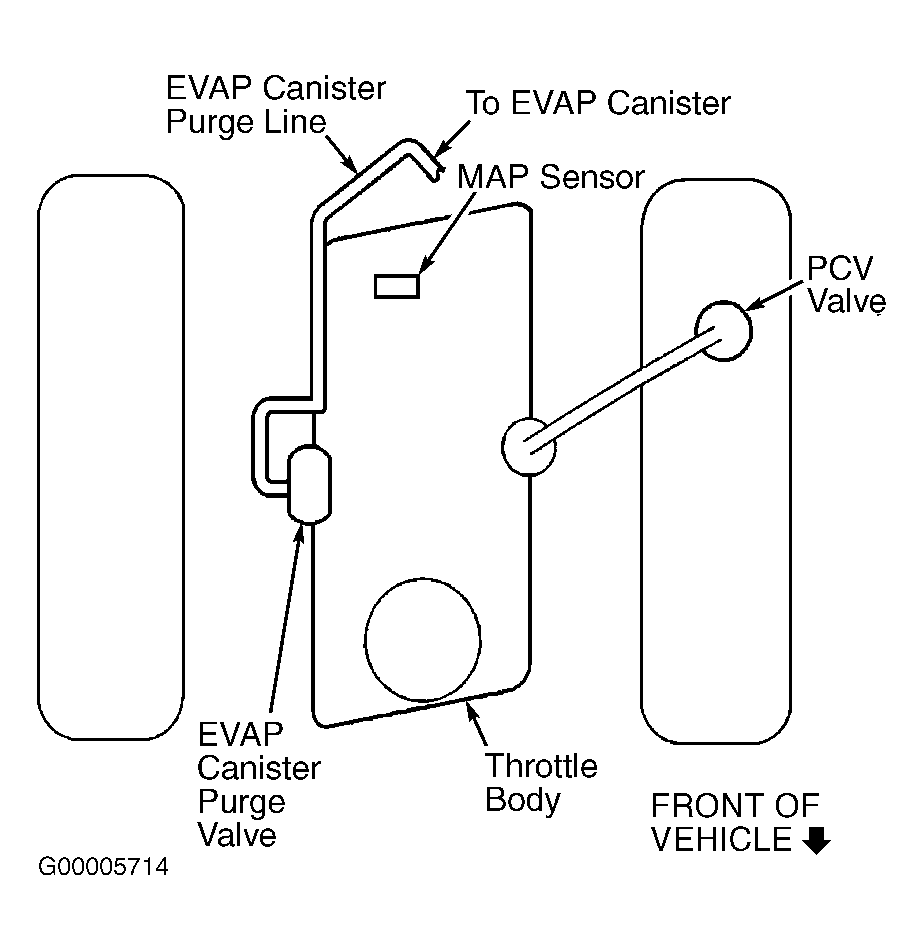

Fig 2: Vacuum Diagram - 2.2L SFI (VIN F) Saturn Vue

Courtesy of GENERAL MOTORS CORP.

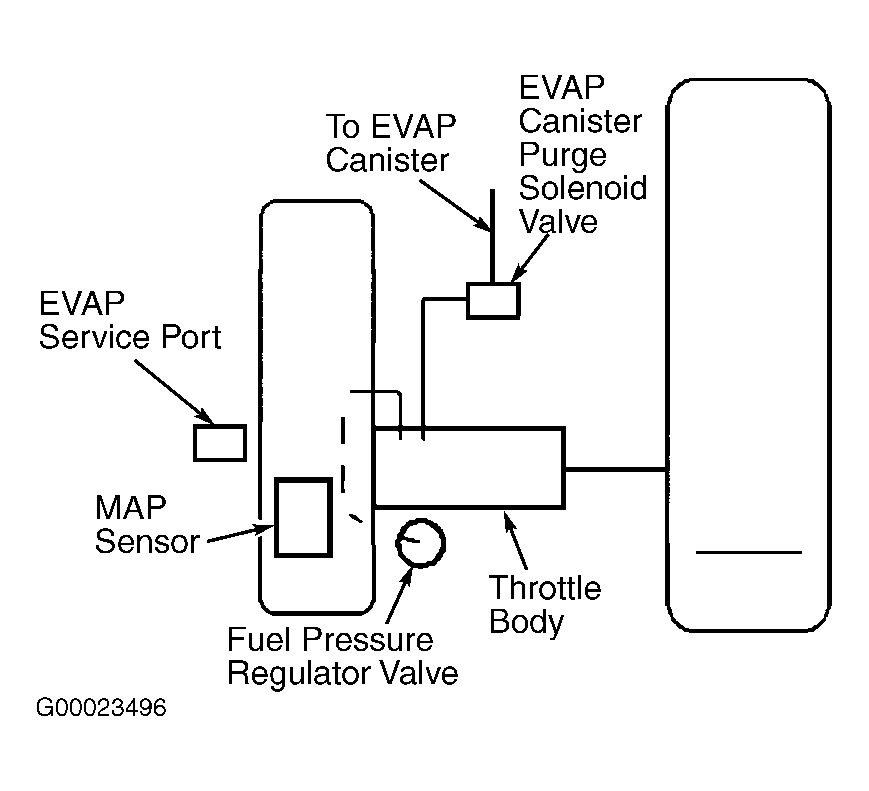

Fig 3: Vacuum Diagram - 2.2L SFI (VIN 4) S10 & Sonoma

Courtesy of GENERAL MOTORS CORP.

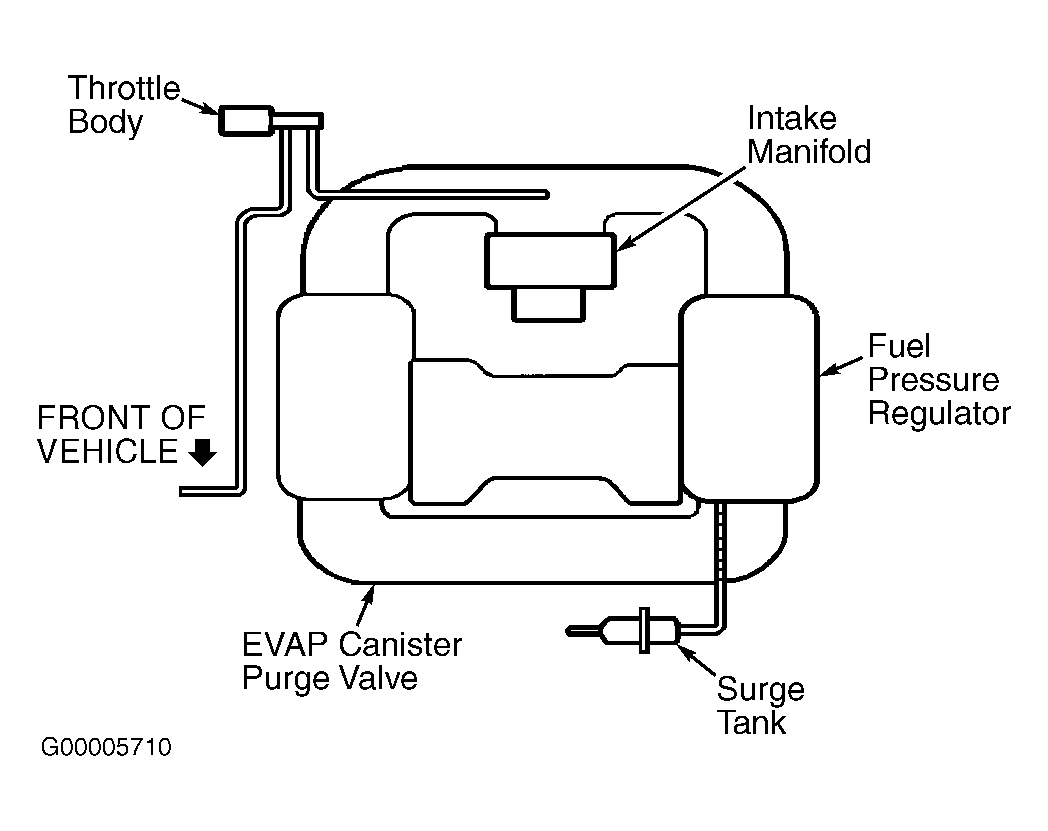

Fig 4: Vacuum Diagram - 2.5L SFI (VIN L) Tracker

Courtesy of GENERAL MOTORS CORP.

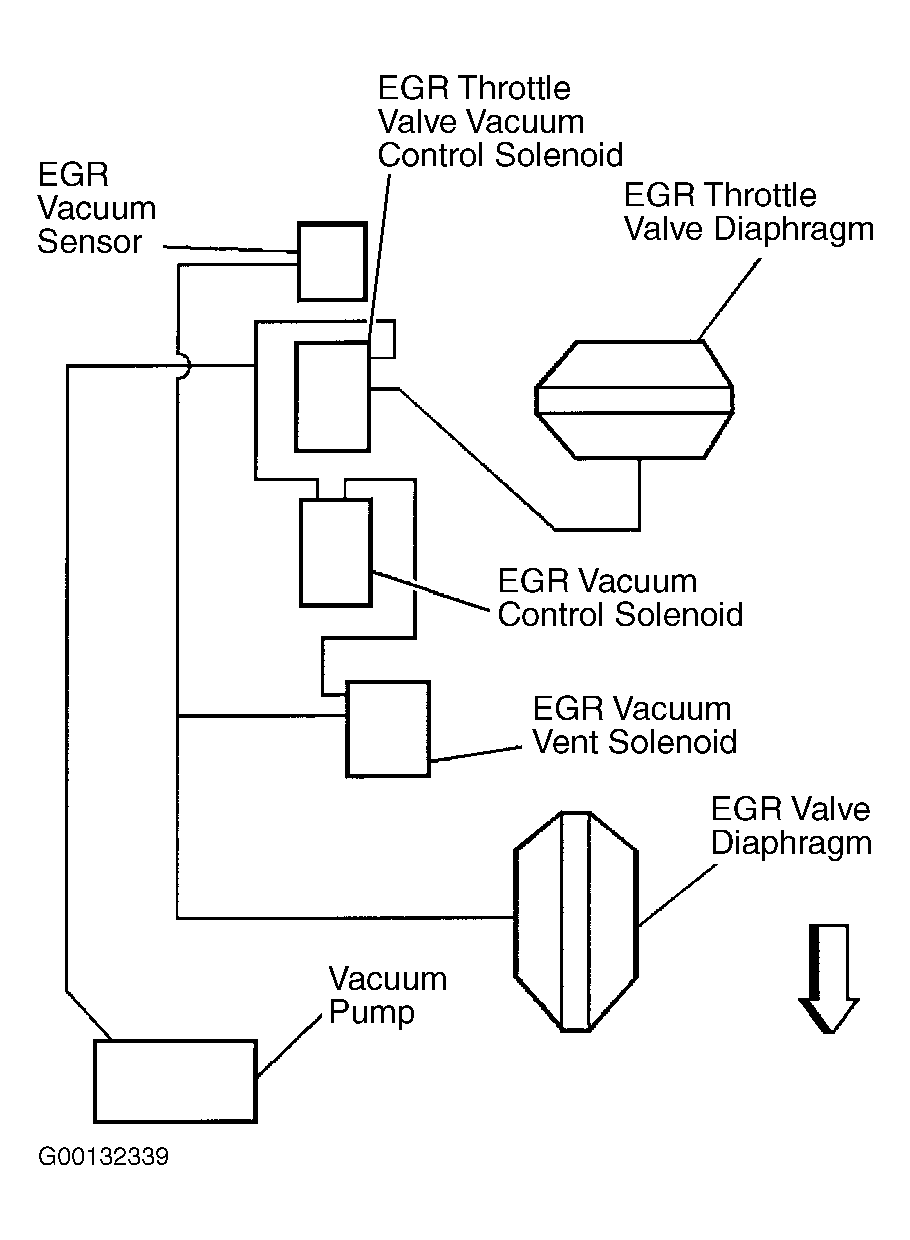

Fig 5: Vacuum Diagram - 3.0L SFI (VIN R) Saturn Vue

Courtesy of GENERAL MOTORS CORP.

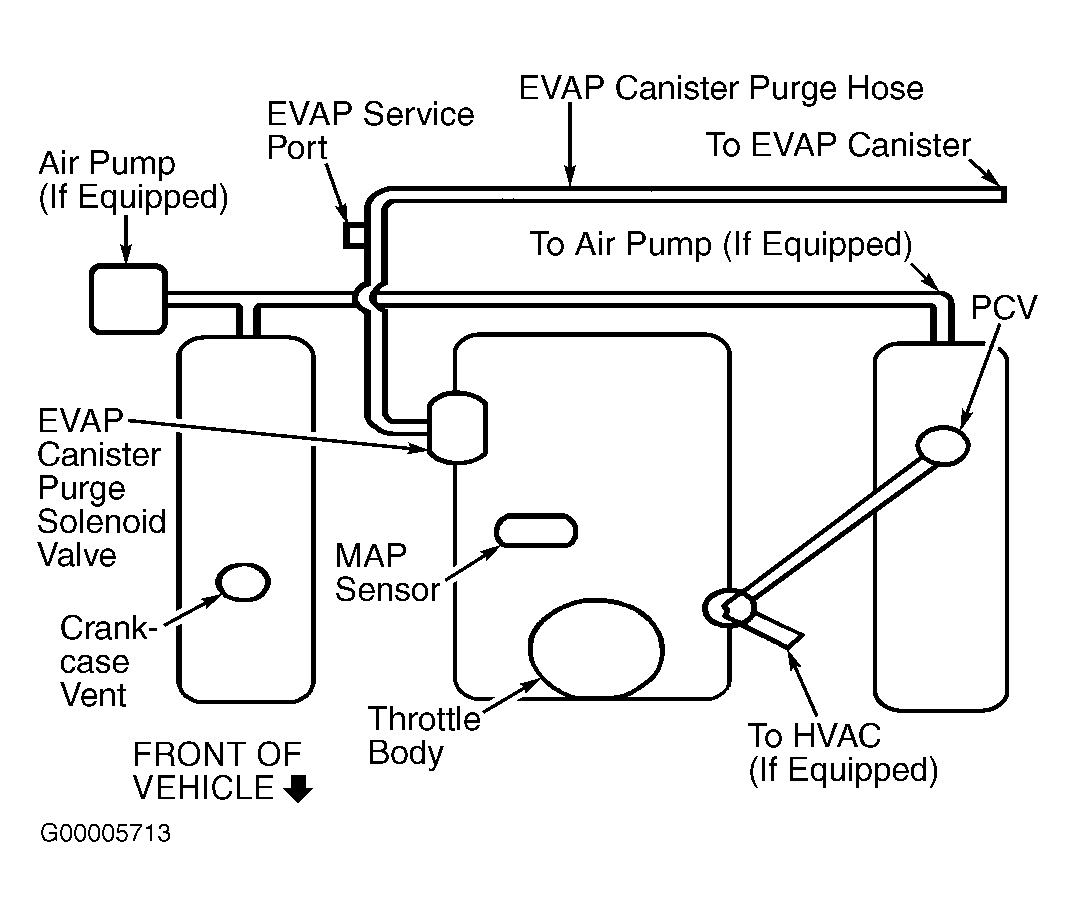

Fig 6: Vacuum Diagram - 3.4L SFI (VIN E) Aztek & Rendezvous

Courtesy of GENERAL MOTORS CORP.

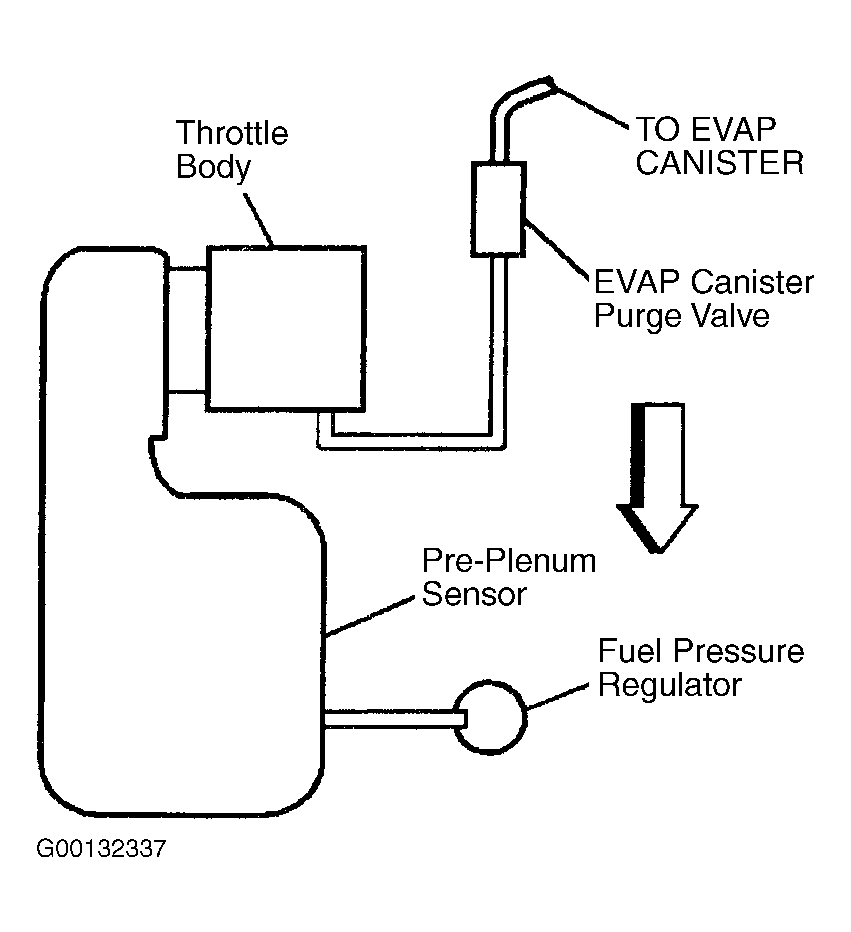

Fig 7: Vacuum Diagram - 3.4L SFI (VIN E) Montana, Silhouette & Venture

Courtesy of GENERAL MOTORS CORP.

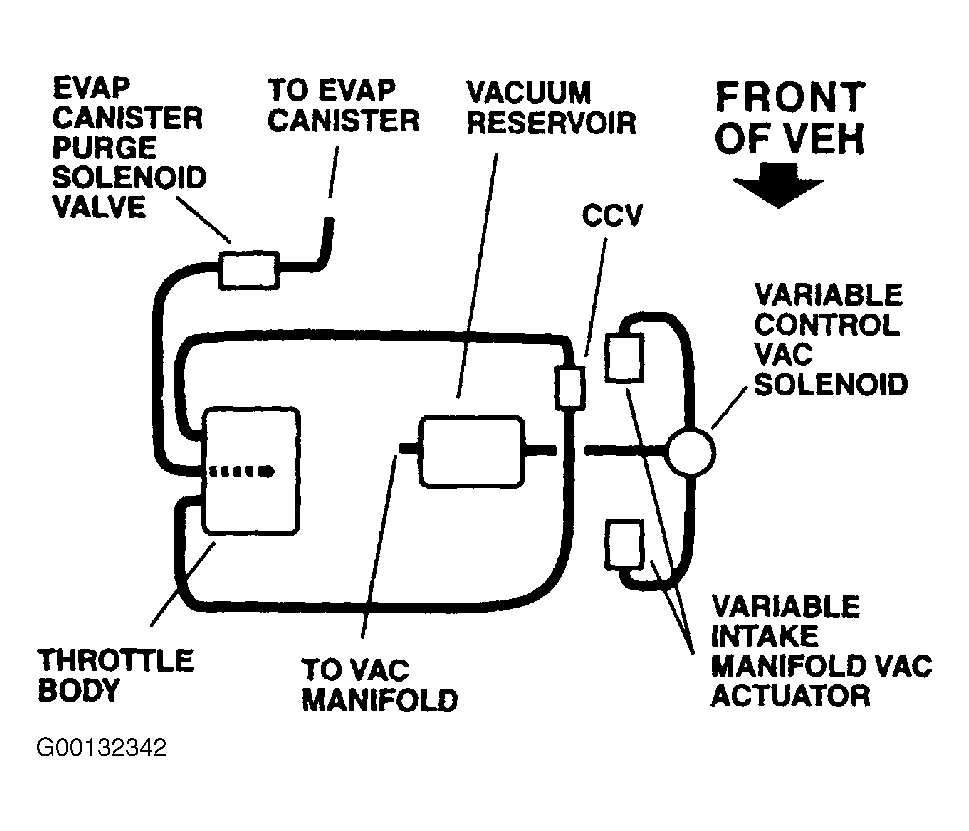

Fig 8: Vacuum Diagram - 4.2L SFI (VIN X) Bravada, Envoy, Envoy XL & TrailBlazer

Courtesy of GENERAL MOTORS CORP.

Fig 9: Vacuum Diagram - 4.3L SFI (VIN W) Astro, Blazer, Jimmy (Canadian), Express, Safari, Savana, Sierra, Silverado, Sonoma & S10

Courtesy of GENERAL MOTORS CORP.

Fig 10: Vacuum Diagram - 4.8L SFI (VIN V) Sierra, Silverado, Tahoe & Yukon; 5.3L SFI (VIN T) Avalanche, Escalade, Sierra, Silverado, Suburban, Tahoe, Yukon & Yukon XL; & 6.0L SFI (VIN U) Escalade, Sierra, Silverado, Suburban, Yukon & Yukon XL

Courtesy of GENERAL MOTORS CORP.

Fig 11: Vacuum Diagram - 5.0L SFI (VIN M) Express & Savana; & 5.7L SFI (VIN R) Cutaway, Express, RV Cutaway & Savana

Courtesy of GENERAL MOTORS CORP.

Fig 12: Vacuum Diagram - 6.5L Diesel (VIN F) Cutaway, Express, RV Cutaway & Savana

Courtesy of GENERAL MOTORS CORP.

Fig 13: Vacuum Diagram - 6.5L Turbo Diesel (VIN F) Cab & Chassis

Courtesy of GENERAL MOTORS CORP.

Fig 14: Vacuum Diagram - 6.6L Turbo Diesel (VIN 1) Sierra & Silverado

Courtesy of GENERAL MOTORS CORP.

Fig 15: Vacuum Diagram - 8.1L SFI (VIN G) Cab & Chassis, Cutaway, Express, RV Cutaway, Savana, Sierra, Silverado, Suburban & Yukon XL

Courtesy of GENERAL MOTORS CORP.
