Valve Rocker Arm and Push Rod Removal

Important:  Mark, sort, and organize all the components for assembly.

1. Remove the valve rocker arms.

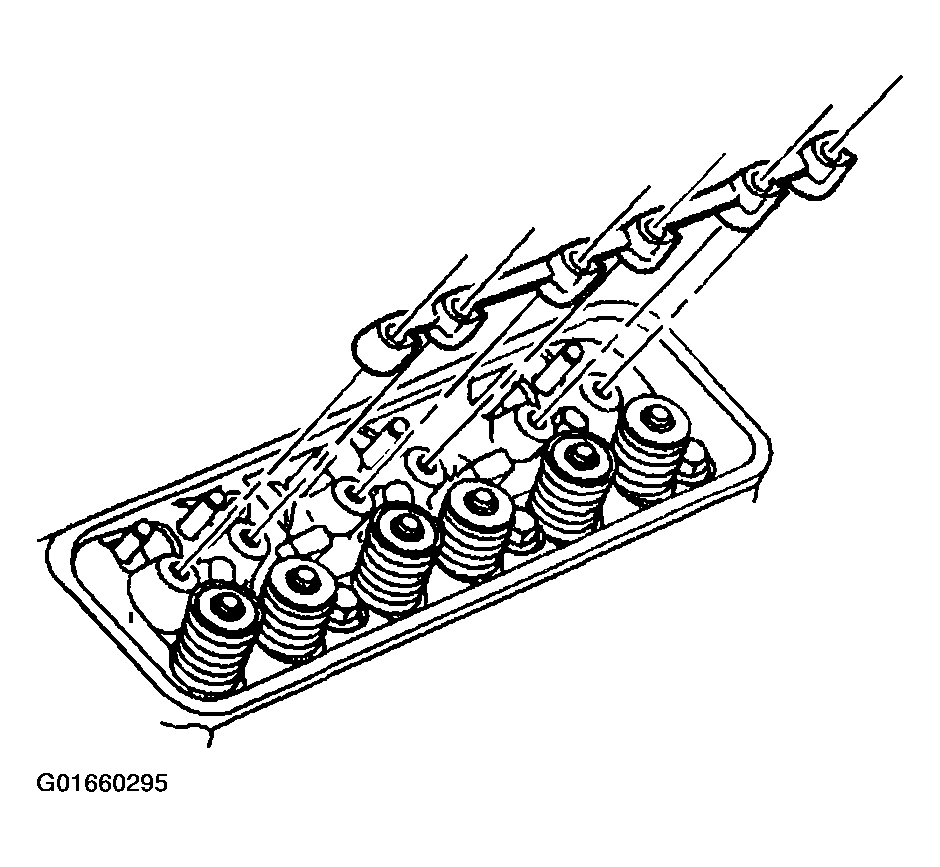

   Fig 1: Valve Rocker Arms

   Courtesy of GENERAL MOTORS CORP.
2. Remove the valve rocker arm supports.

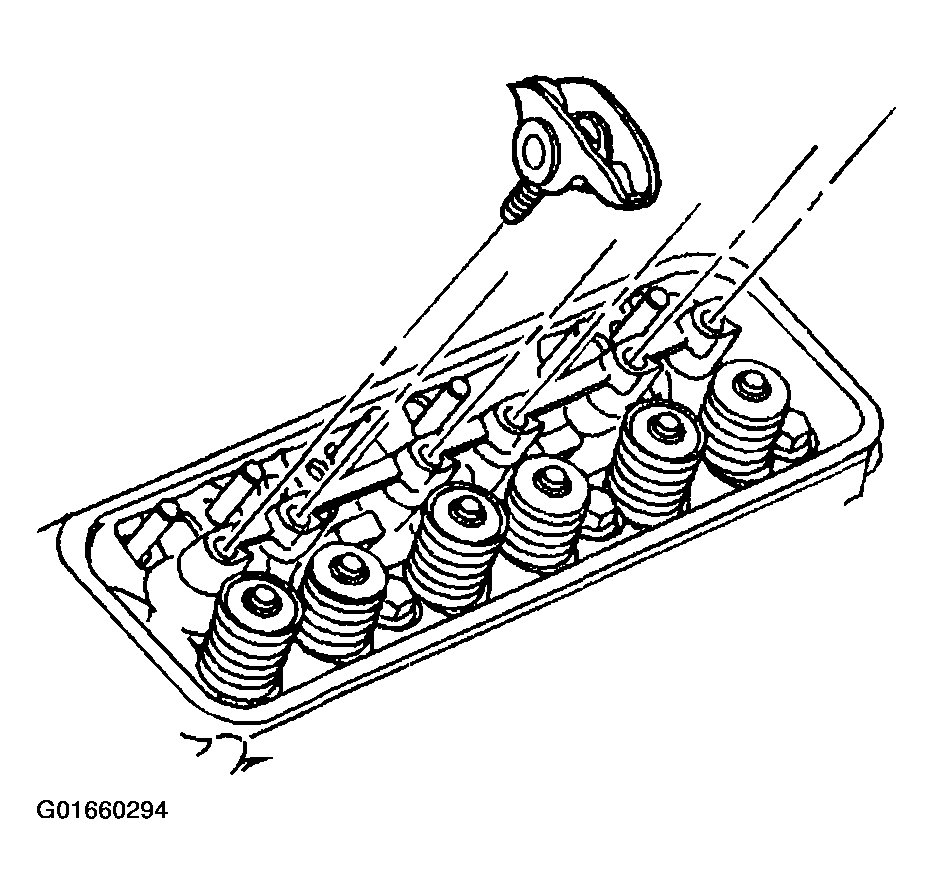

   Fig 2: Valve Rocker Arms Supports

   Courtesy of GENERAL MOTORS CORP.
3. Remove the valve pushrods.

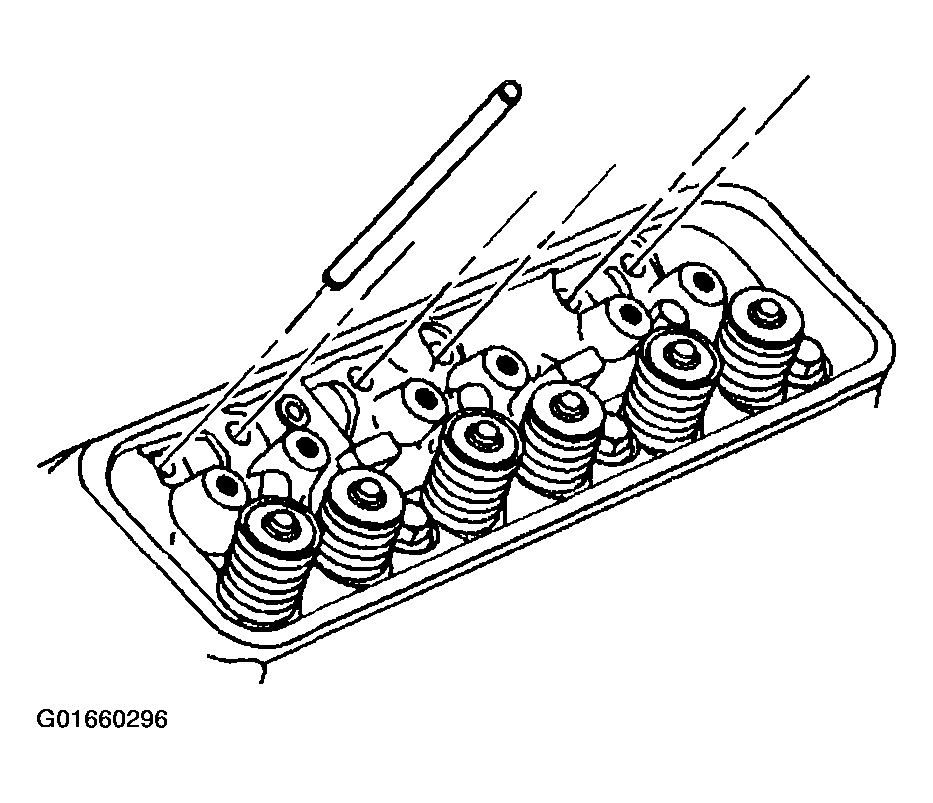

   Fig 3: Valve Pushrods

   Courtesy of GENERAL MOTORS CORP.
