Valve Rocker Arm Cover Removal - Right

  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover bolt grommets.
  3. Discard the valve rocker arm cover bolt grommets.

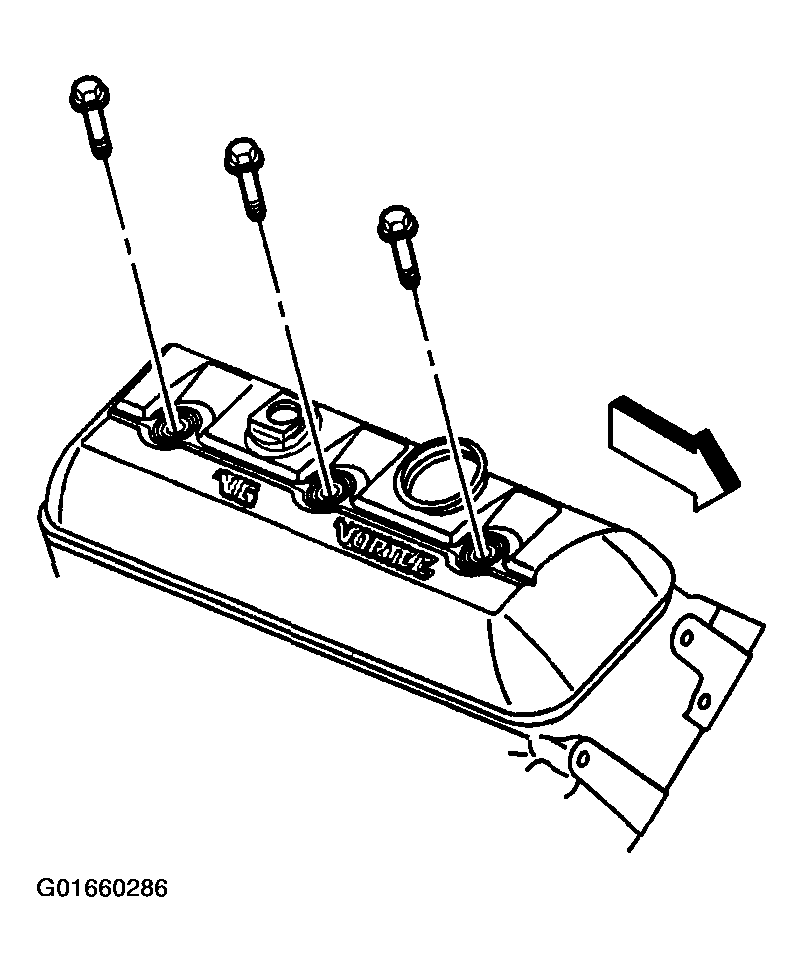

    Fig 1: Right Valve Rocker Arm Cover Bolt
    G01660286Courtesy of GENERAL MOTORS CORP.
  4. Remove the valve rocker arm cover.

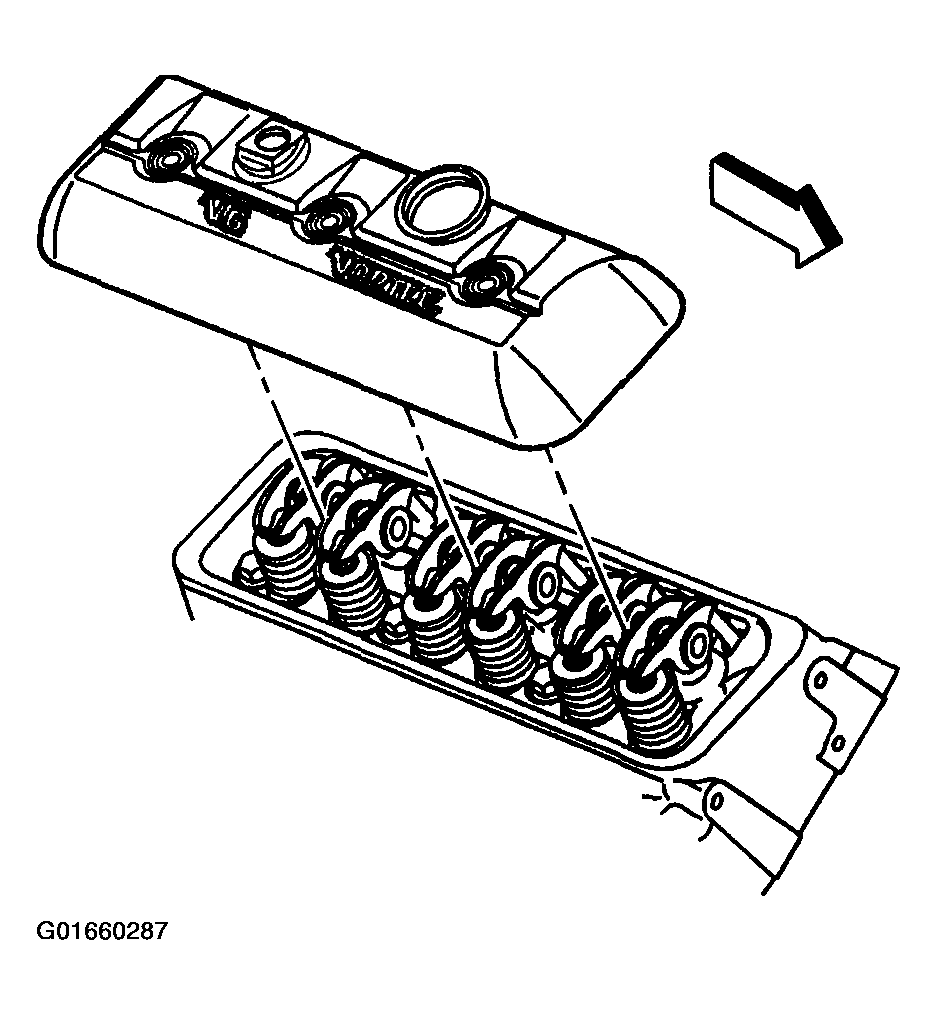

    Fig 2: Right Valve Rocker Arm Cover
    G01660287Courtesy of GENERAL MOTORS CORP.
  5. Remove the valve rocker arm cover gasket.
  6. Discard the valve rocker arm cover gasket.

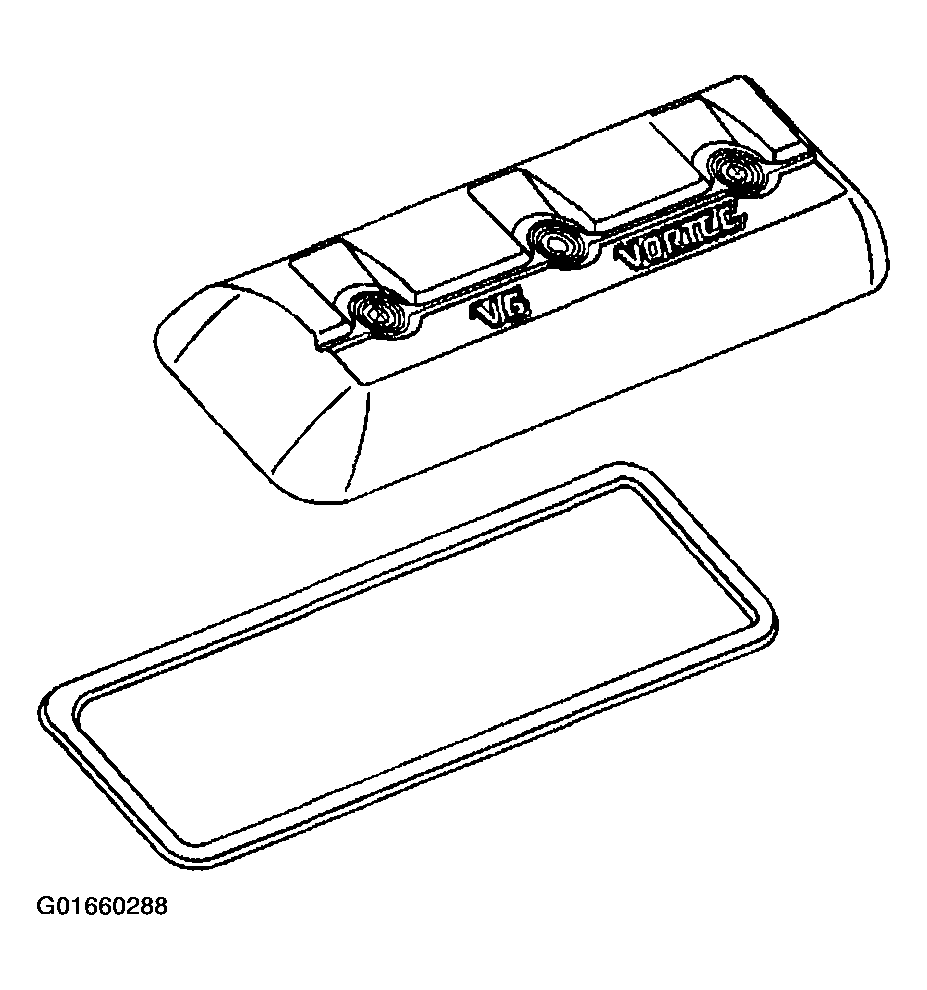

    Fig 3: Right Valve Rocker Arm Cover & Gasket
    G01660288Courtesy of GENERAL MOTORS CORP.
