Valve Rocker Arm Cover Removal - Left

  1. Remove the valve rocker arm cover bolts.
  2. Remove the valve rocker arm cover bolt grommets.
  3. Discard the valve rocker arm cover bolt grommets.

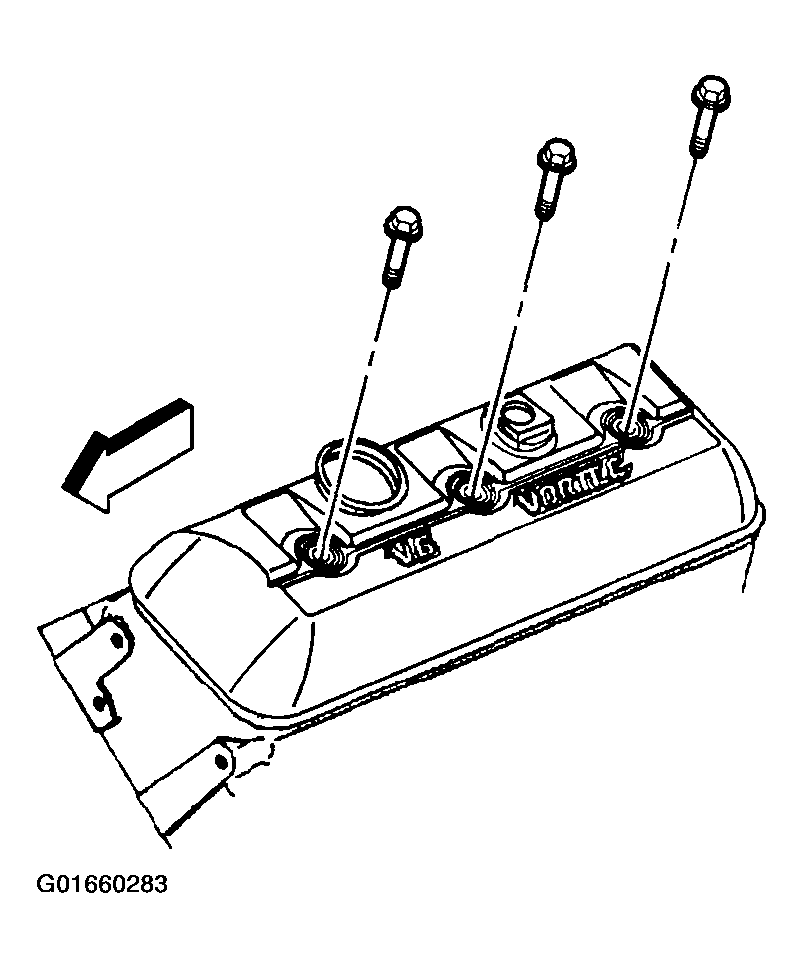

    Fig 1: Left Valve Rocker Arm Cover Bolts
    G01660283Courtesy of GENERAL MOTORS CORP.
  4. Remove the valve rocker arm cover.

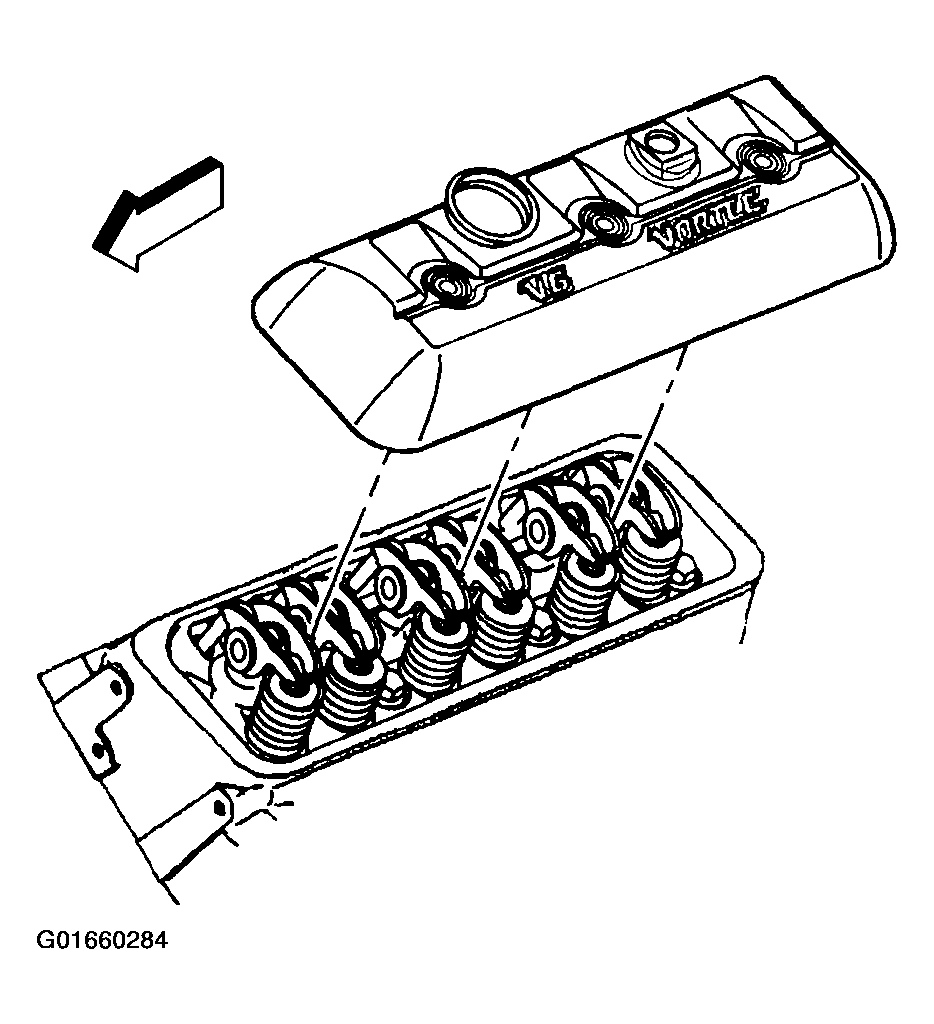

    Fig 2: Left Valve Rocker Arm Cover
    G01660284Courtesy of GENERAL MOTORS CORP.
  5. Remove the valve rocker arm cover gasket.
  6. Discard the valve rocker arm cover gasket.

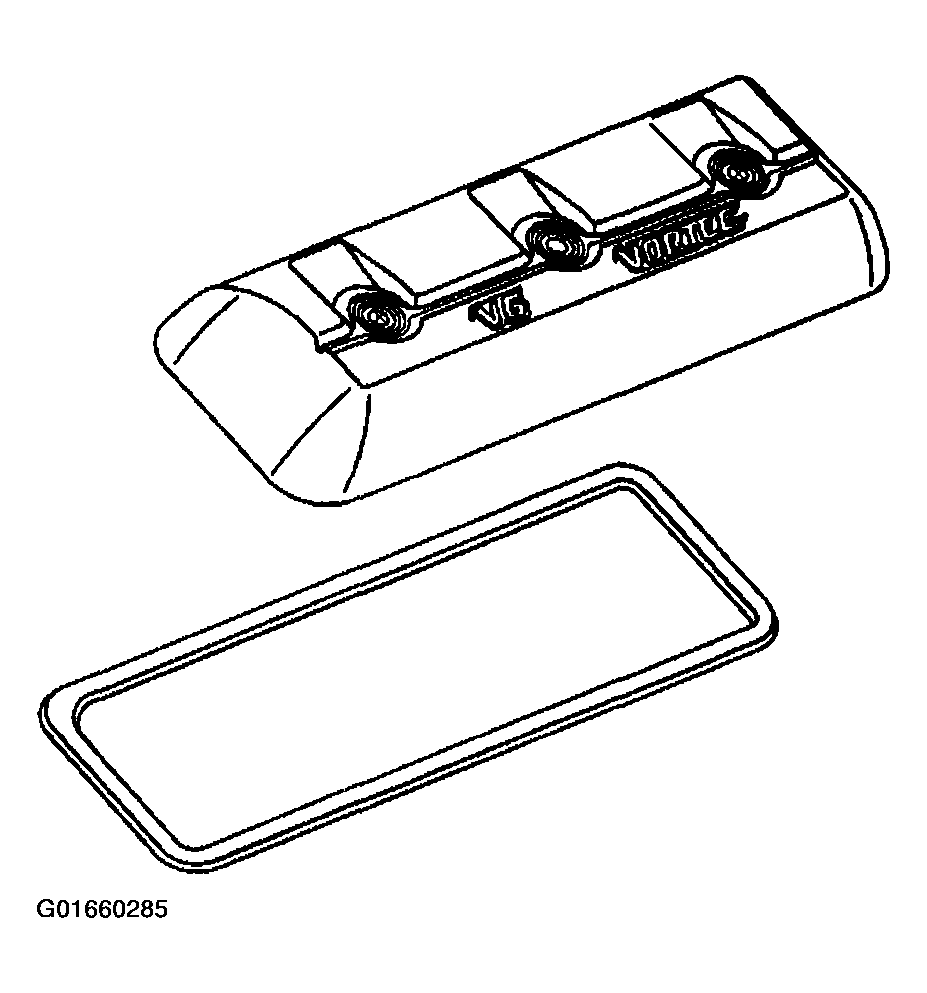

    Fig 3: Left Valve Rocker Arm & Gasket
    G01660285Courtesy of GENERAL MOTORS CORP.
