Valve Rocker Arm Cover Installation - Right

Important:  Do not reuse the valve cover gasket or the valve rocker arm cover bolt grommets.

1. Install the NEW valve rocker arm cover gasket into the groove of the valve rocker arm cover.
2. Install the NEW valve rocker arm cover bolt grommets into the valve rocker arm cover.

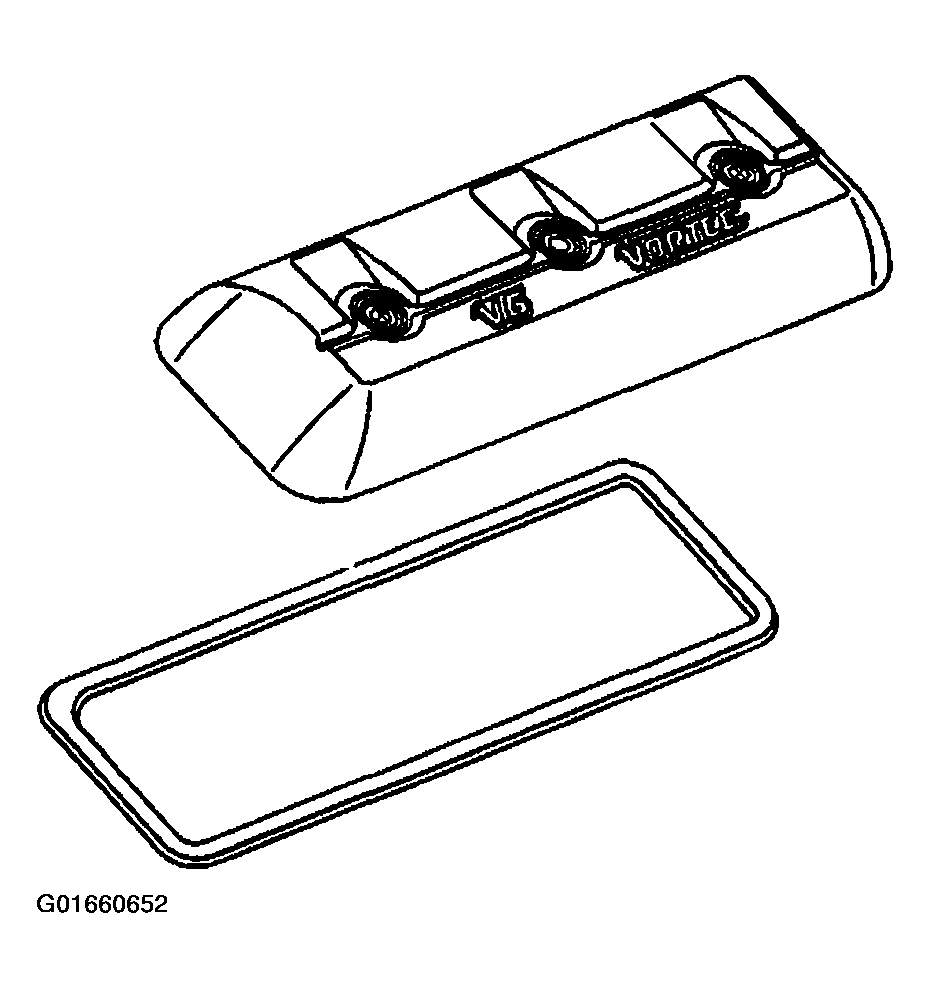

   Fig 1: Right Valve Rocker Arm Cover & Gasket

   Courtesy of GENERAL MOTORS CORP.
3. Install the valve rocker arm cover onto the cylinder head.

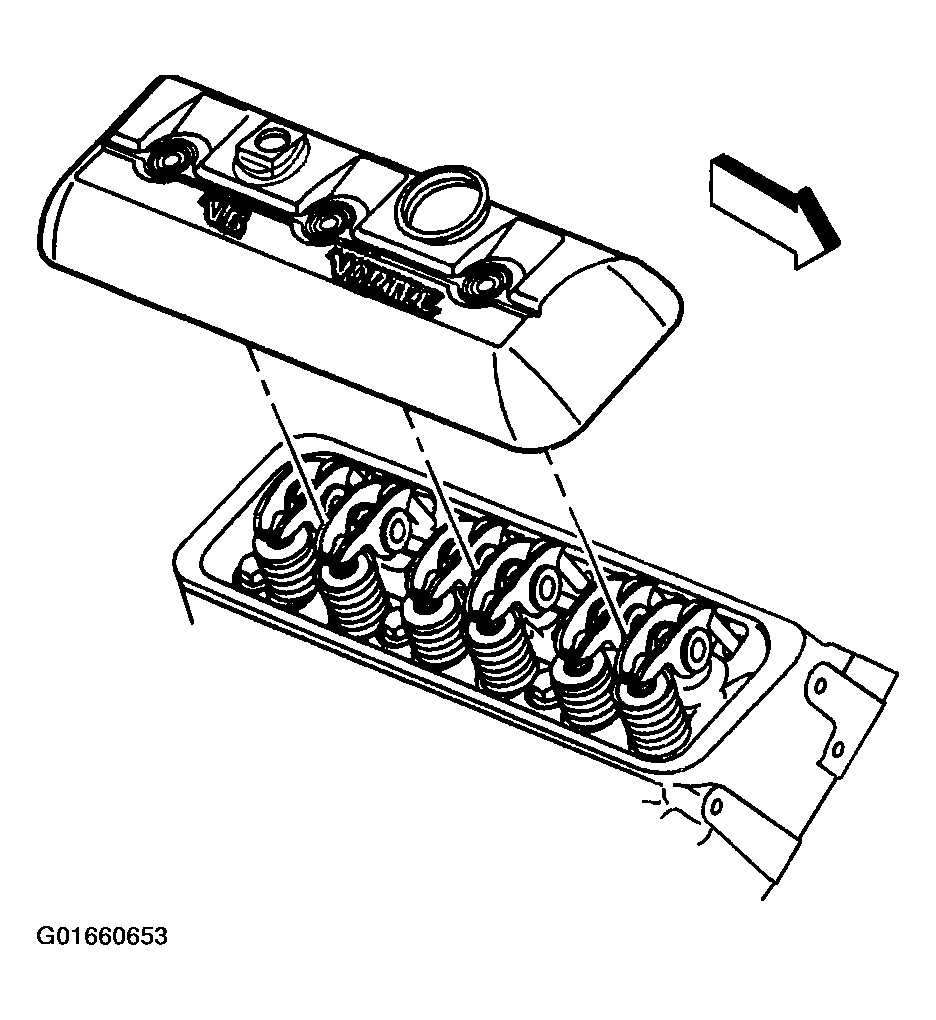

   Fig 2: Right Valve Rocker Arm Cover

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
4. Install the valve rocker arm cover bolts.

   Tighten

   Tighten the valve rocker arm cover bolts to 12 N.m (106 lb in).

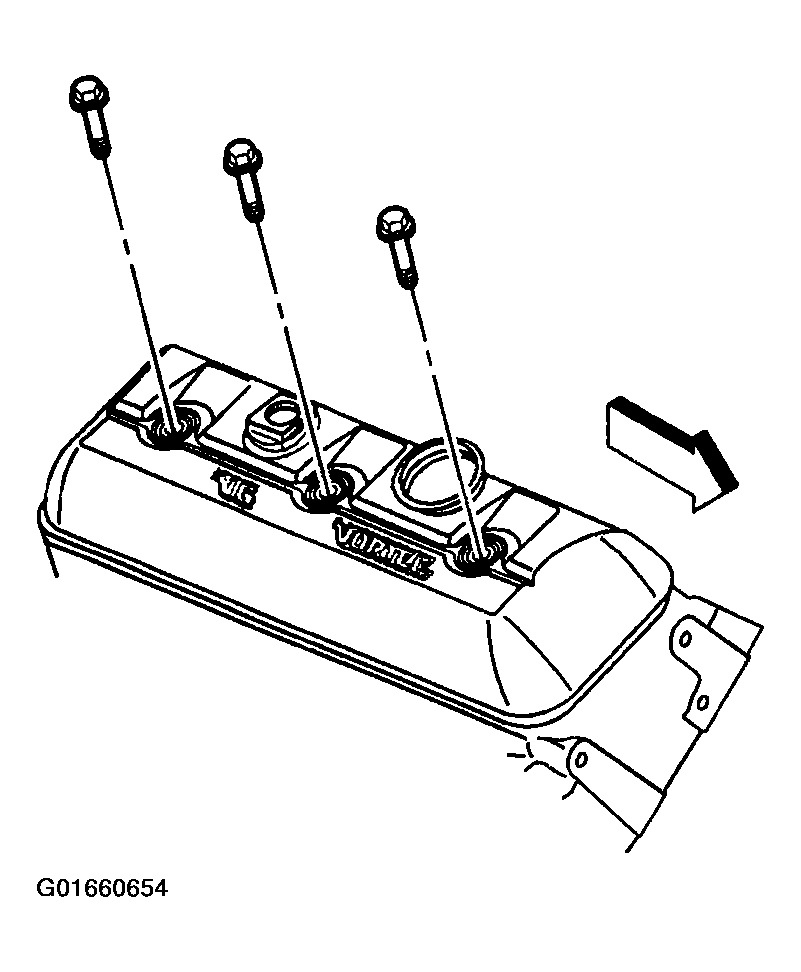

   Fig 3: Right Valve Rocker Arm Cover & Bolts

   Courtesy of GENERAL MOTORS CORP.
