Valve Rocker Arm Cover Cleaning and Inspection
CAUTION:
Refer to SAFETY GLASSES CAUTION
in Cautions and Notices.
- Clean the valve rocker arm cover in cleaning solvent.
- Dry the valve rocker arm cover with compressed air.

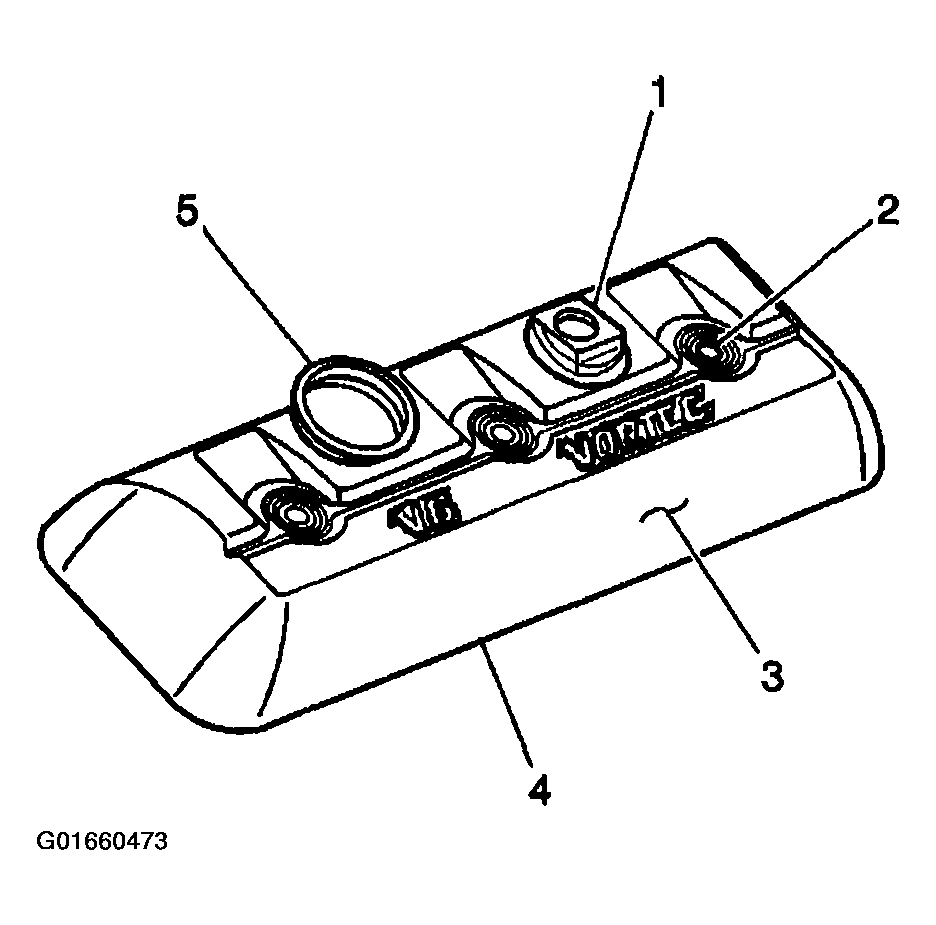

- Inspect the valve rocker arm cover for the following:
- Damage to the PCV valve grommet (1)
- Damage to the bolt holes (2)
A damaged valve rocker arm cover may interfere with the valve rocker arms.
- Damage to the exterior of the valve rocker arm cover (3)
- Gouges or damage to the sealing surface (4)
- Damage to the oil fill tube grommet (5)
- Restrictions to the ventilation system passages
