Oil Pump Removal

  1. Remove the oil pump bolt.

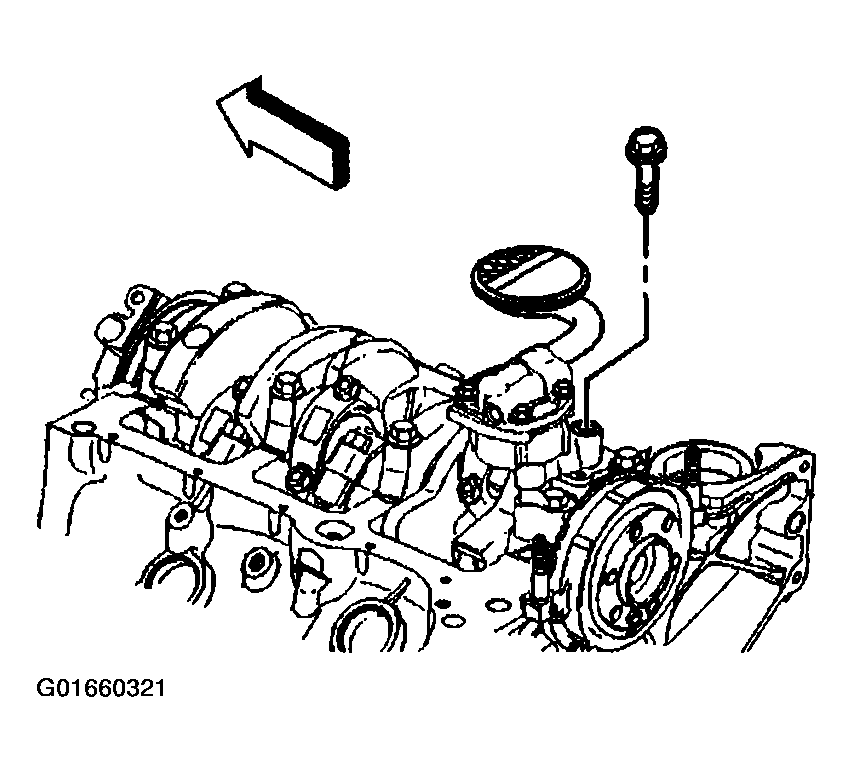

    Fig 1: Oil Pump & Bolt
    G01660321Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pump.

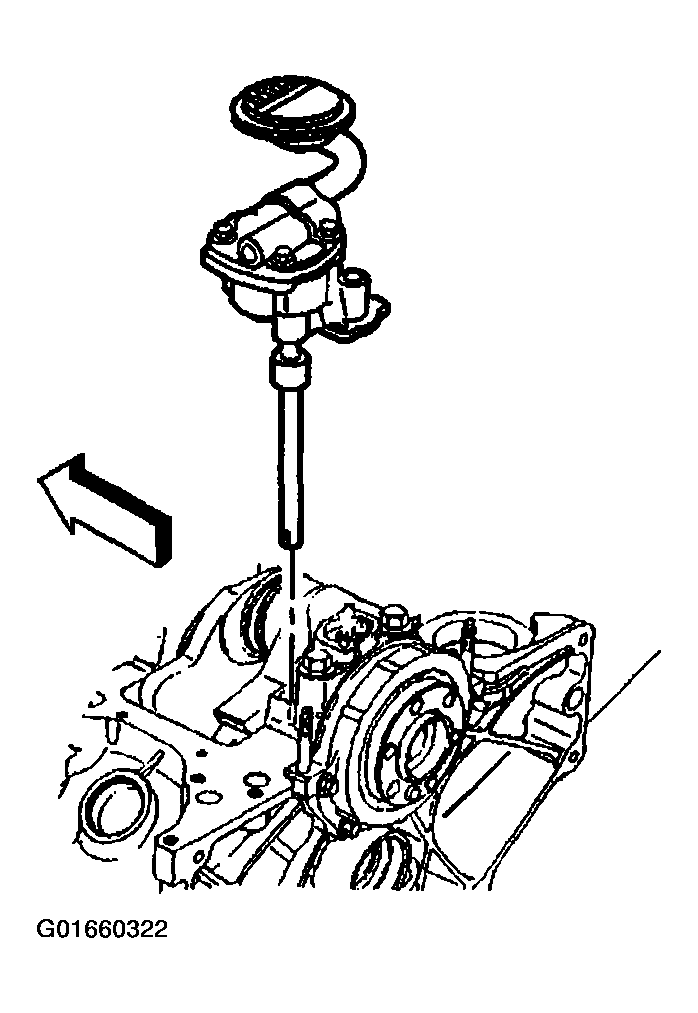

    Fig 2: Oil Pump
    G01660322Courtesy of GENERAL MOTORS CORP.
  3. Inspect the oil pump locator pins for damage, and replace the pins if required.

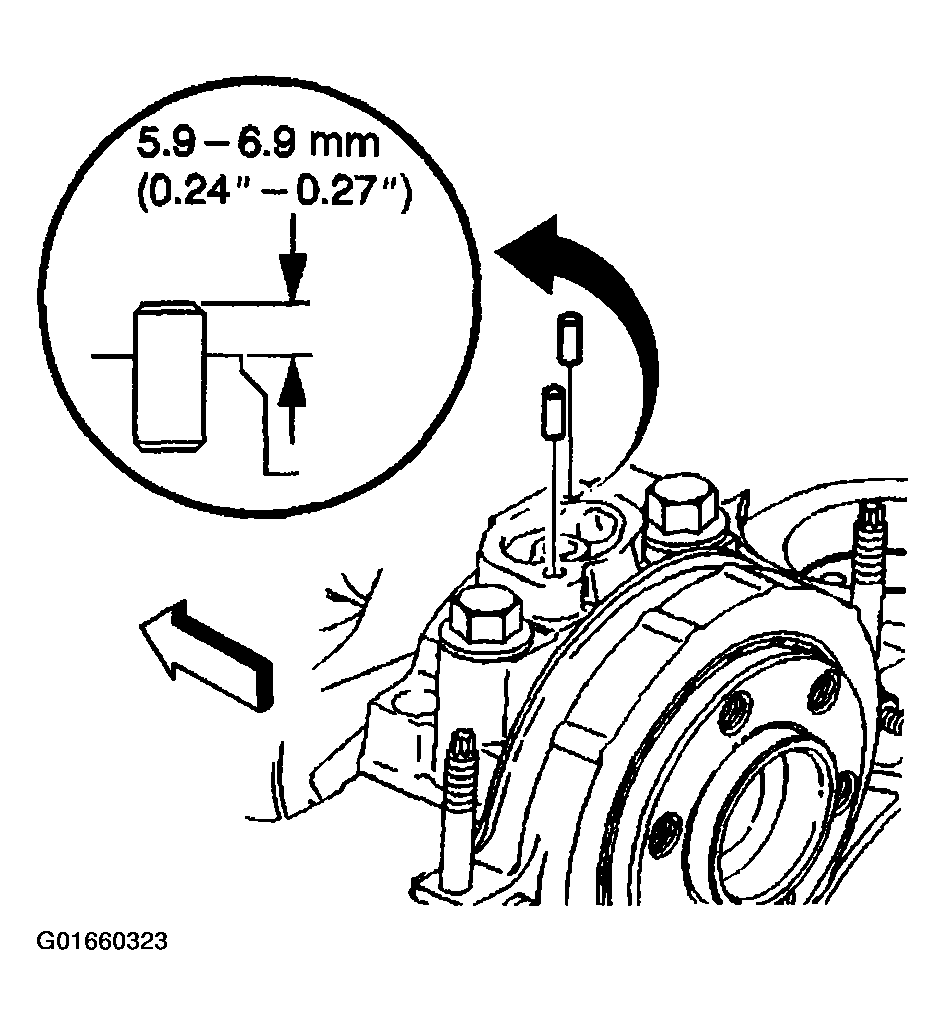

    Fig 3: Oil Pump Locator Pins Measurements
    G01660323Courtesy of GENERAL MOTORS CORP.
