Oil Pan Removal

  1. Remove and discard the engine oil level sensor, if applicable.

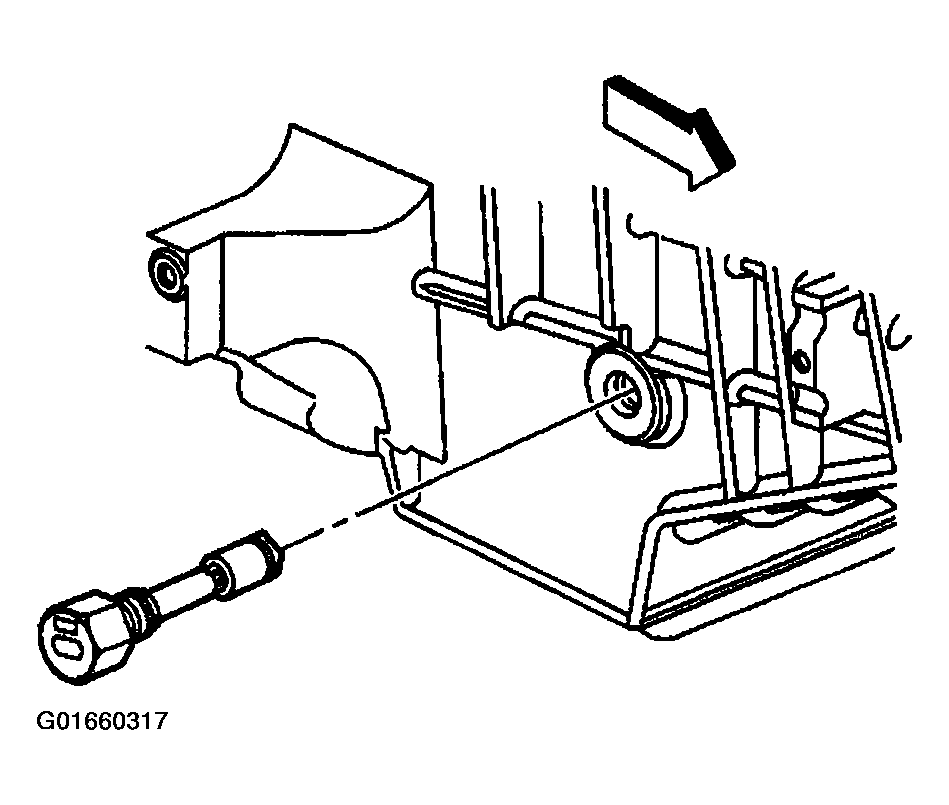

    Fig 1: Engine Oil Level Sensor
    G01660317Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil pan bolts and nuts.

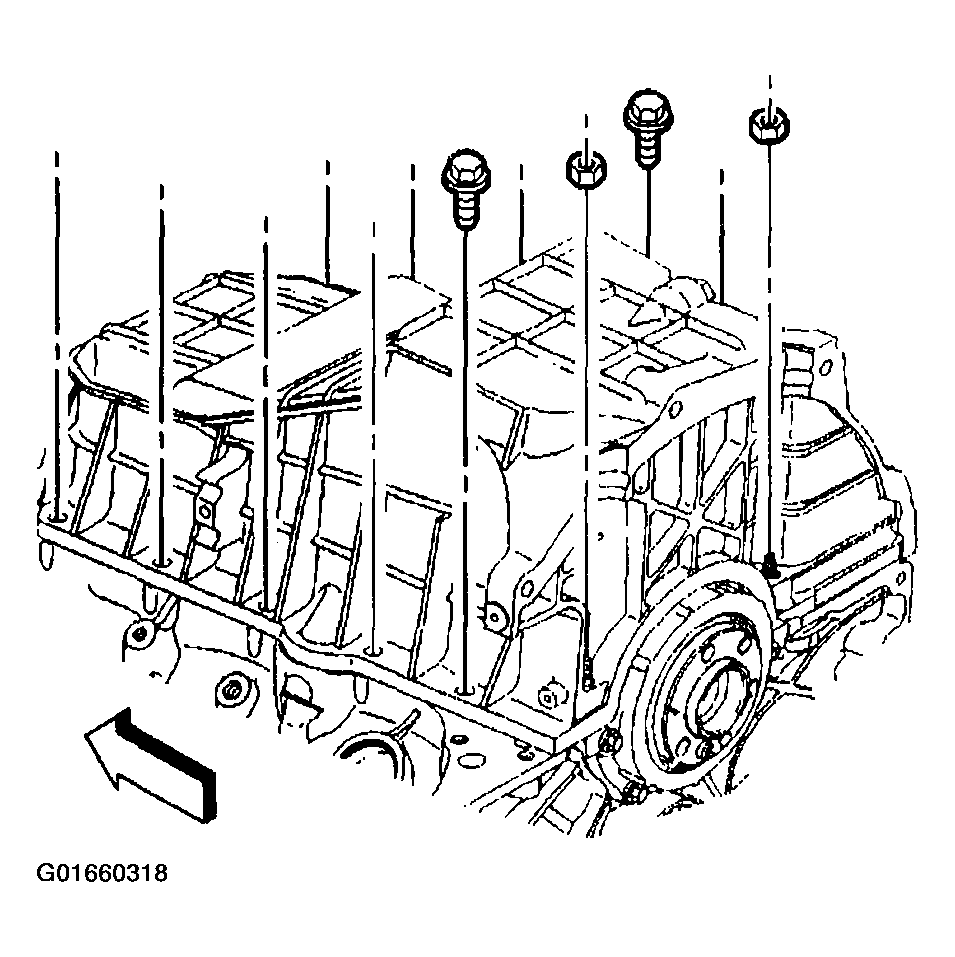

    Fig 2: Oil Pan Bolts & Nuts
    G01660318Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil pan.

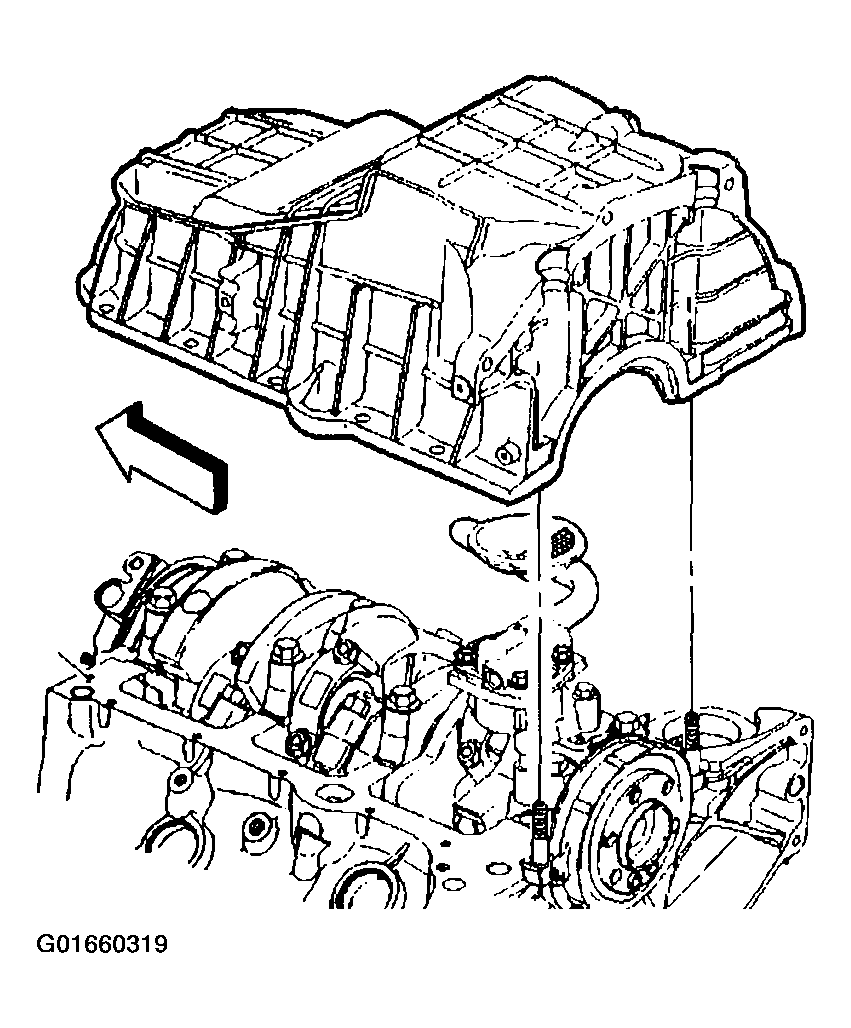

    Fig 3: Oil Pan
    G01660319Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan gasket.
  5. Discard the oil pan gasket.

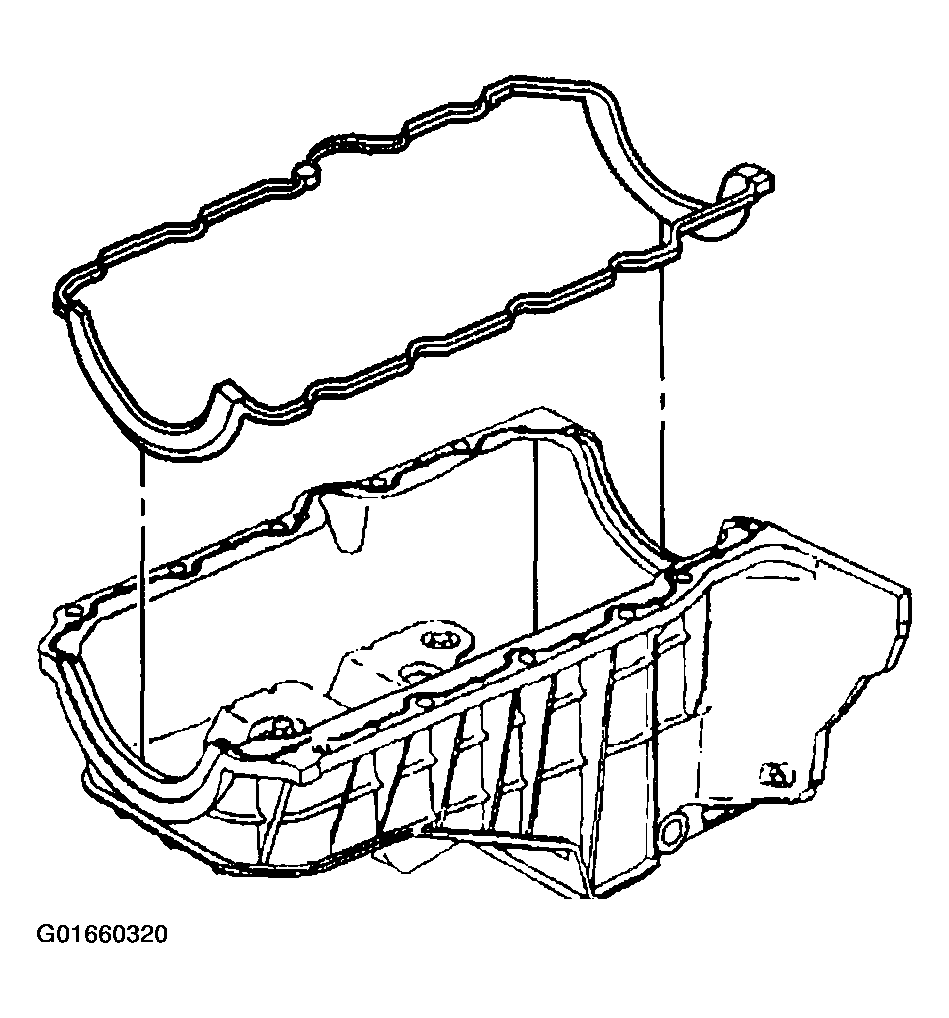

    Fig 4: Oil Pan Gasket
    G01660320Courtesy of GENERAL MOTORS CORP.
