Oil Level Indicator and Tube Removal

  1. Remove the oil level indicator from the oil level indicator tube, if required.

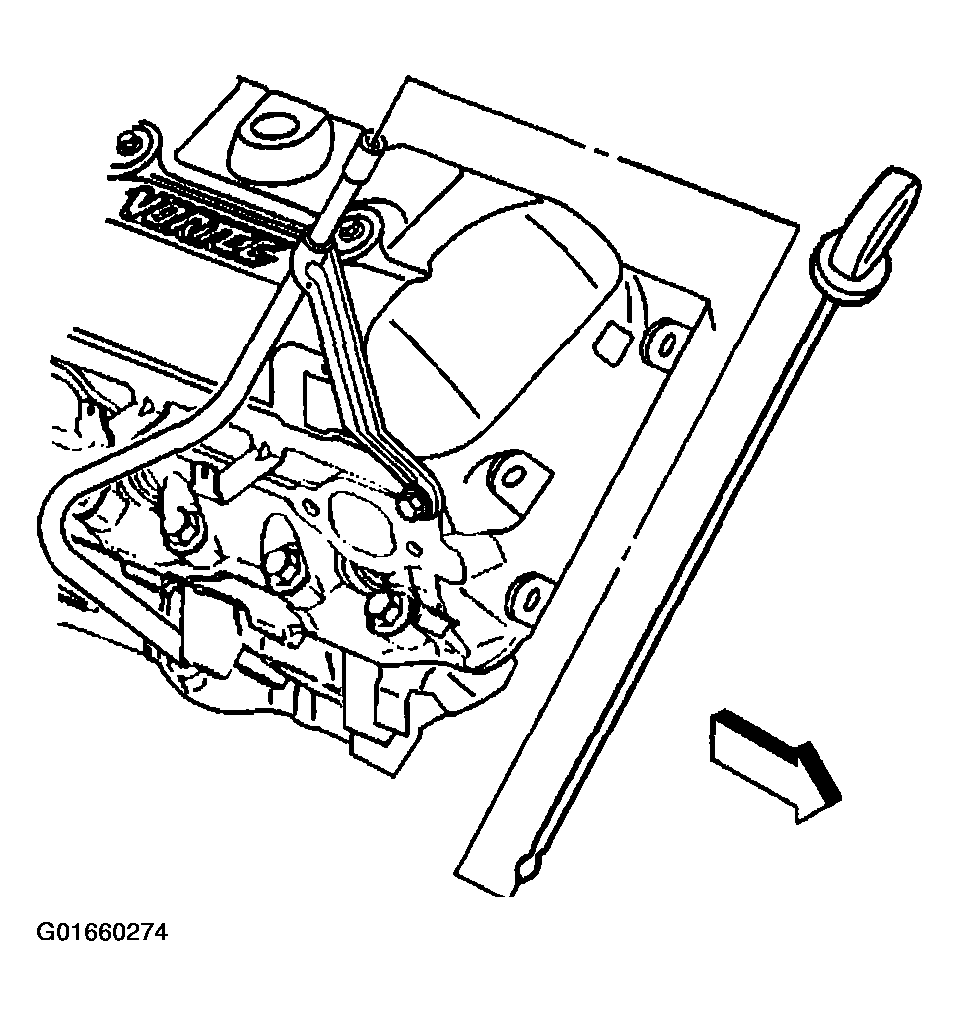

    Fig 1: Oil Level Indicator
    G01660274Courtesy of GENERAL MOTORS CORP.
  2. Remove the oil level indicator tube bolt.
  3. Remove the oil level indicator tube from the engine block.

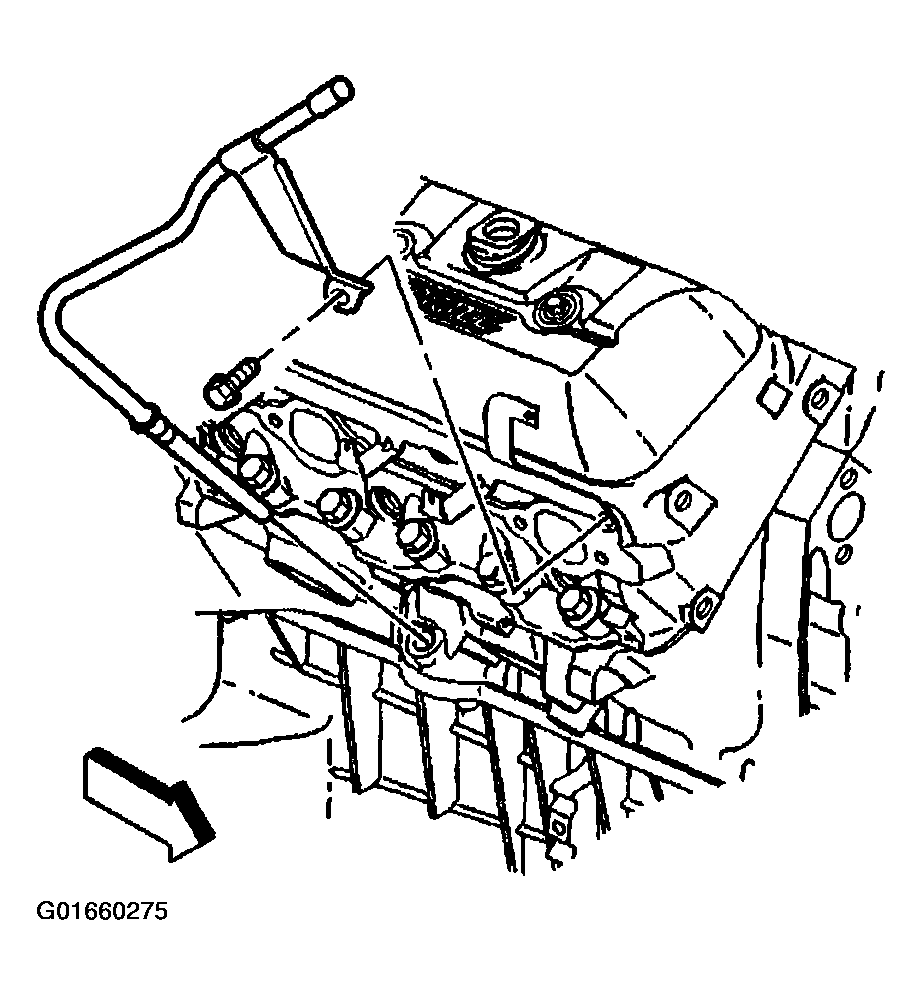

    Fig 2: Oil Level indicator Tube & Bracket
    G01660275Courtesy of GENERAL MOTORS CORP.
