Engine Front Cover Removal

  1. Remove the crankshaft position sensor bolt.
  2. Remove the crankshaft position sensor.

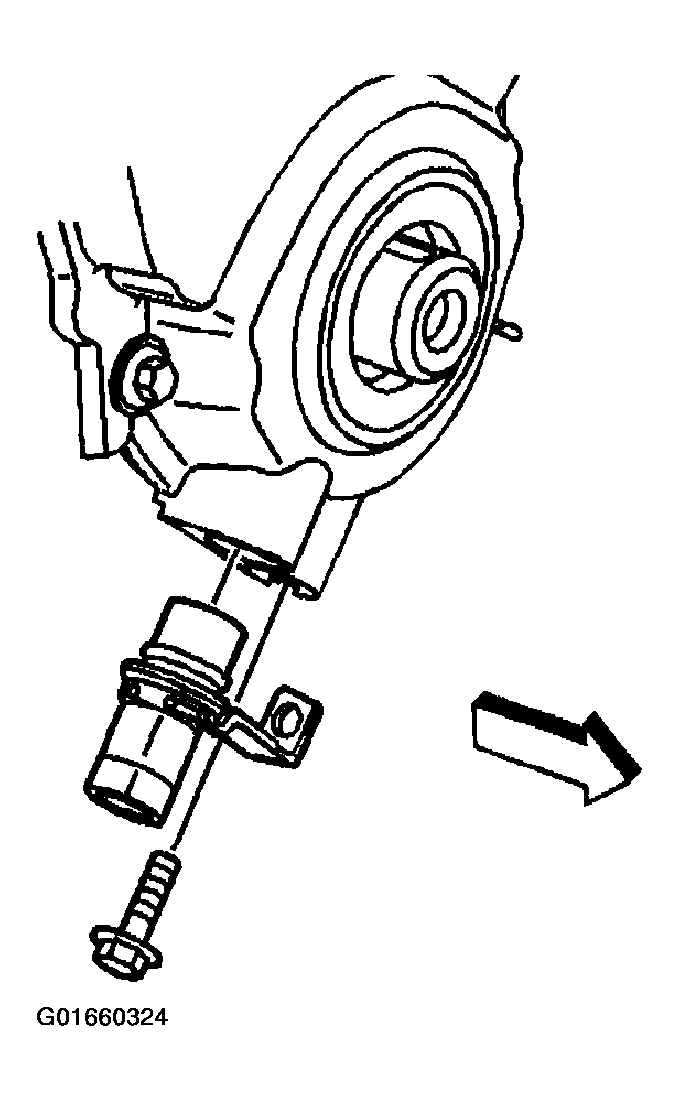

    Fig 1: Crankshaft Position Sensor
    G01660324Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft position sensor seal, O-ring.
  4. Discard the crankshaft position sensor seal, O-ring.

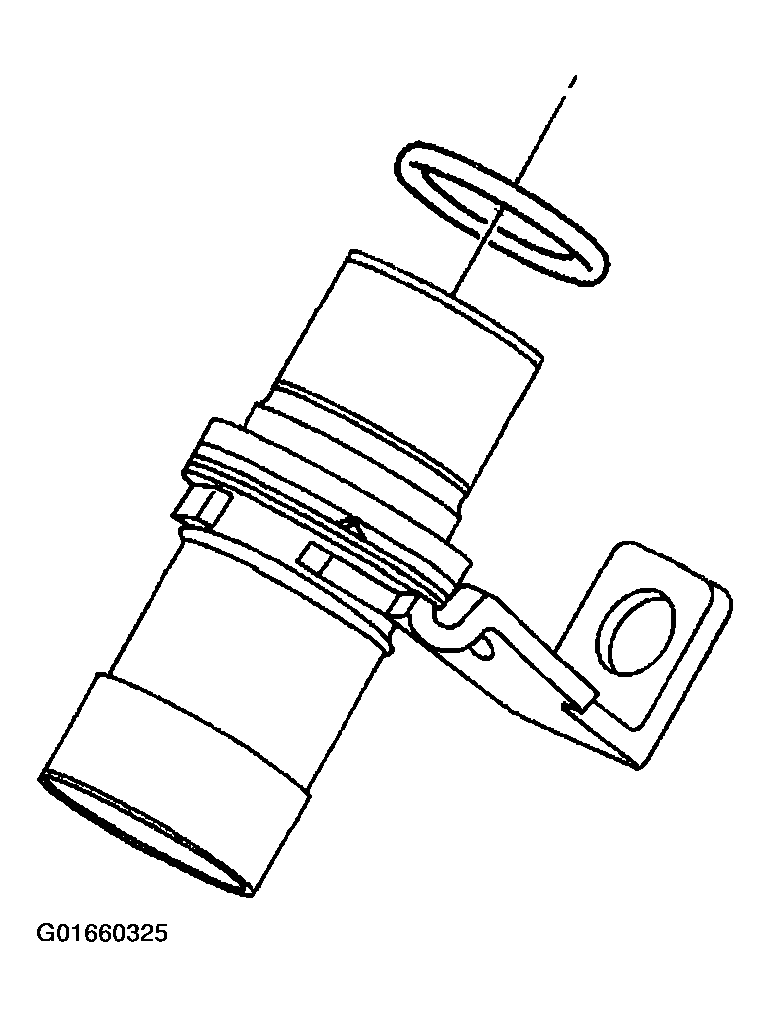

    Fig 2: Crankshaft Position Sensor O-Ring Seal
    G01660325Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine front cover bolts.

    Important:  After the composite engine front cover is removed do not reinstall the engine front cover. Always install a NEW engine front cover.

  6. Remove the engine front cover.
  7. Discard the engine front cover.

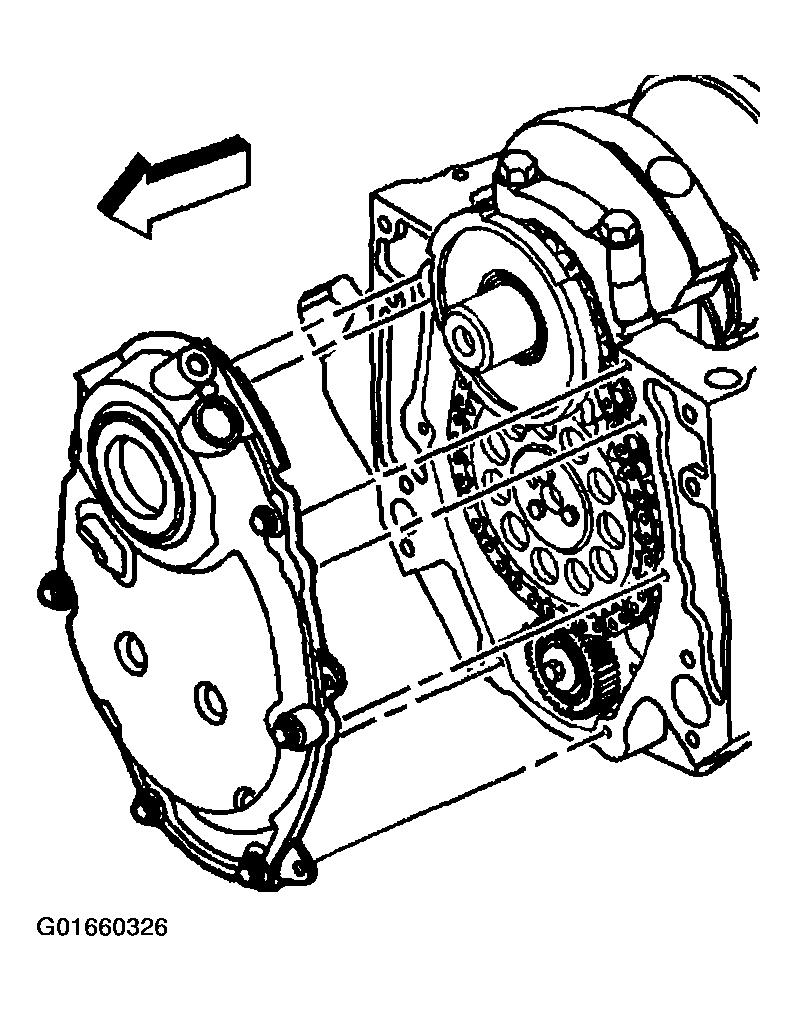

    Fig 3: Engine Front Cover
    G01660326Courtesy of GENERAL MOTORS CORP.
