Engine Flywheel Removal

  1. Remove the engine flywheel bolts.
  2. Remove the engine flywheel (1), automatic transmission, if applicable.
  3. Remove the engine flywheel (2), manual transmission, if applicable.

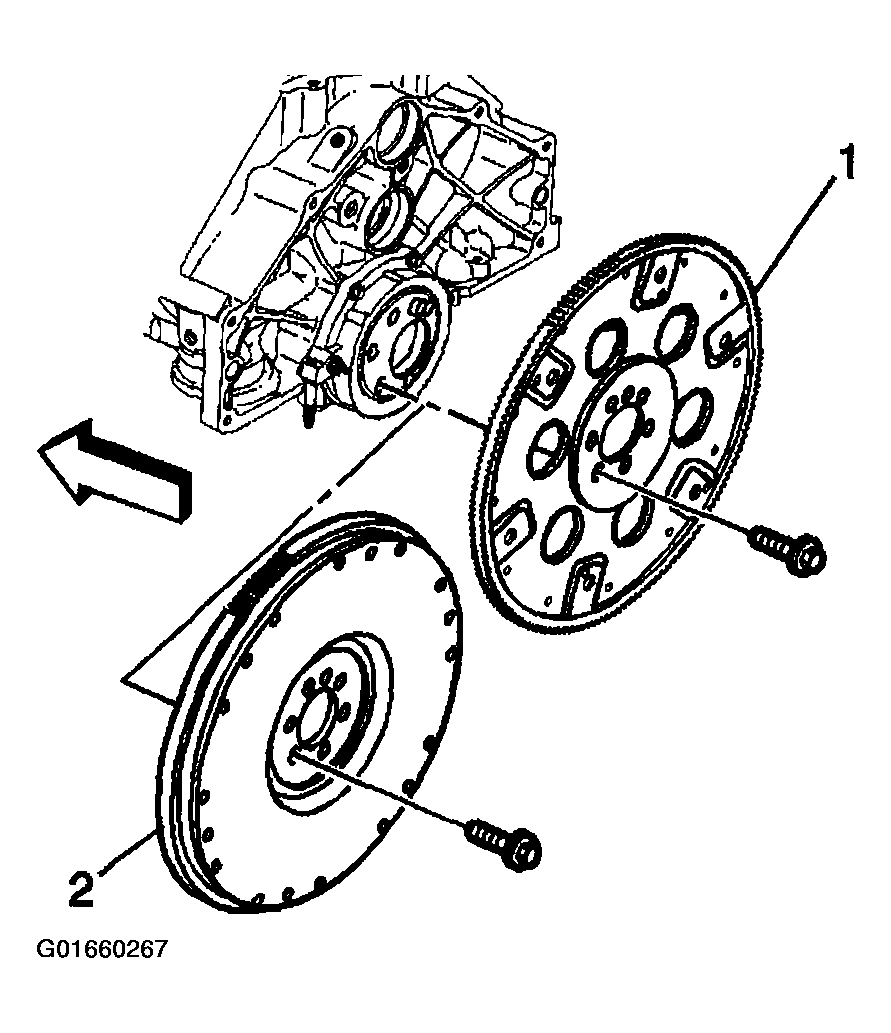

    Fig 1: Engine Flywheels (Automatic & Manual Transmission)
    G01660267Courtesy of GENERAL MOTORS CORP.

    Important:  If replacing the engine flywheel, manual transmission, NEW flywheel weights must be installed into the NEW engine flywheel in the same location as the old flywheel weights in the old engine flywheel.

  4. Note the position of any flywheel weights for assembly, if applicable.

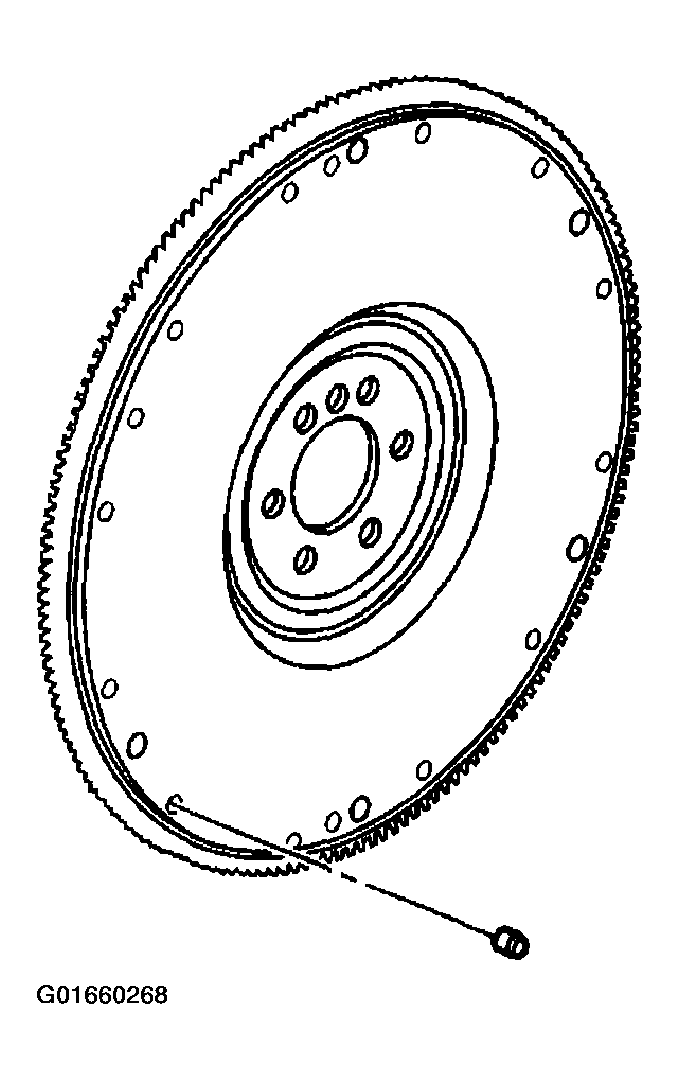

    Fig 2: Flywheel & Weights
    G01660268Courtesy of GENERAL MOTORS CORP.
