Crankshaft Rear Oil Seal and Housing Removal

  1. Remove the crankshaft rear oil seal from the crankshaft rear oil seal housing.

    Insert a suitable tool into the access notches and then carefully pry the crankshaft rear oil seal from the crankshaft rear oil seal housing.

  2. Discard the crankshaft rear oil seal.

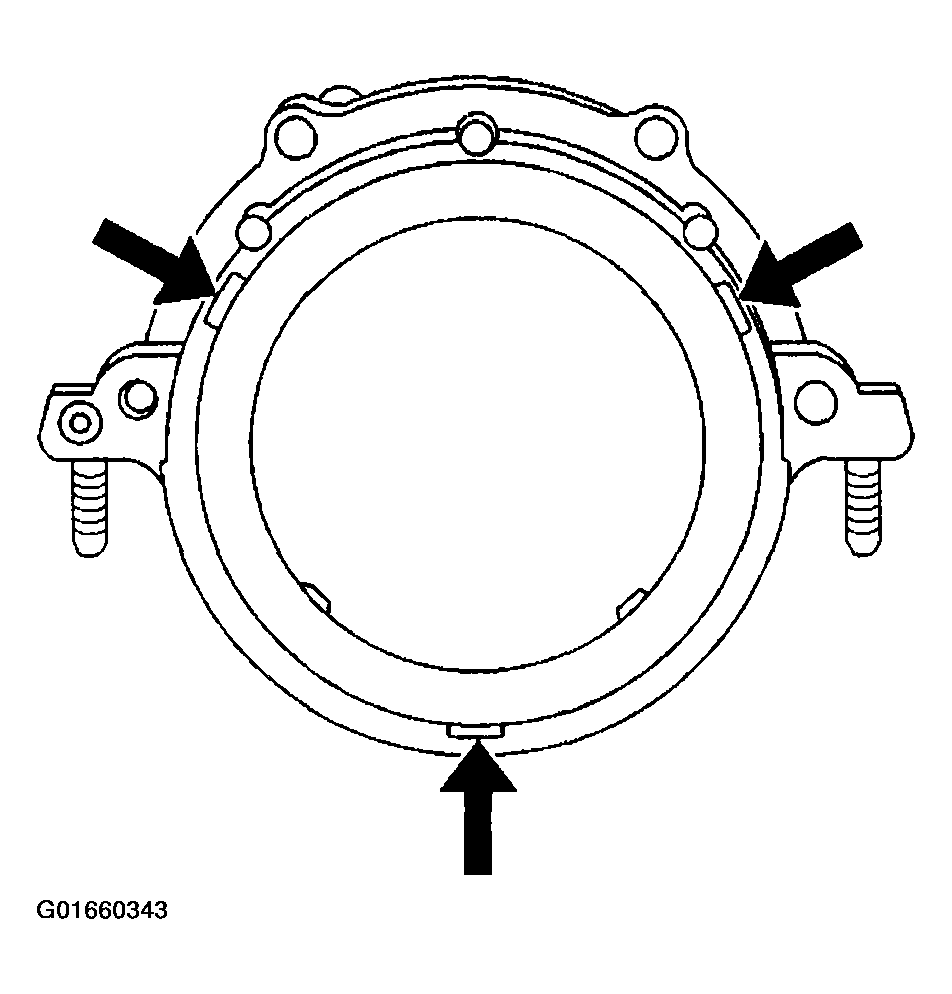

    Fig 1: Crankshaft Rear Oil Seal Access Notches
    G01660343Courtesy of GENERAL MOTORS CORP.
  3. Remove the crankshaft rear oil seal housing nut and bolts.
  4. Remove the crankshaft rear oil seal housing.

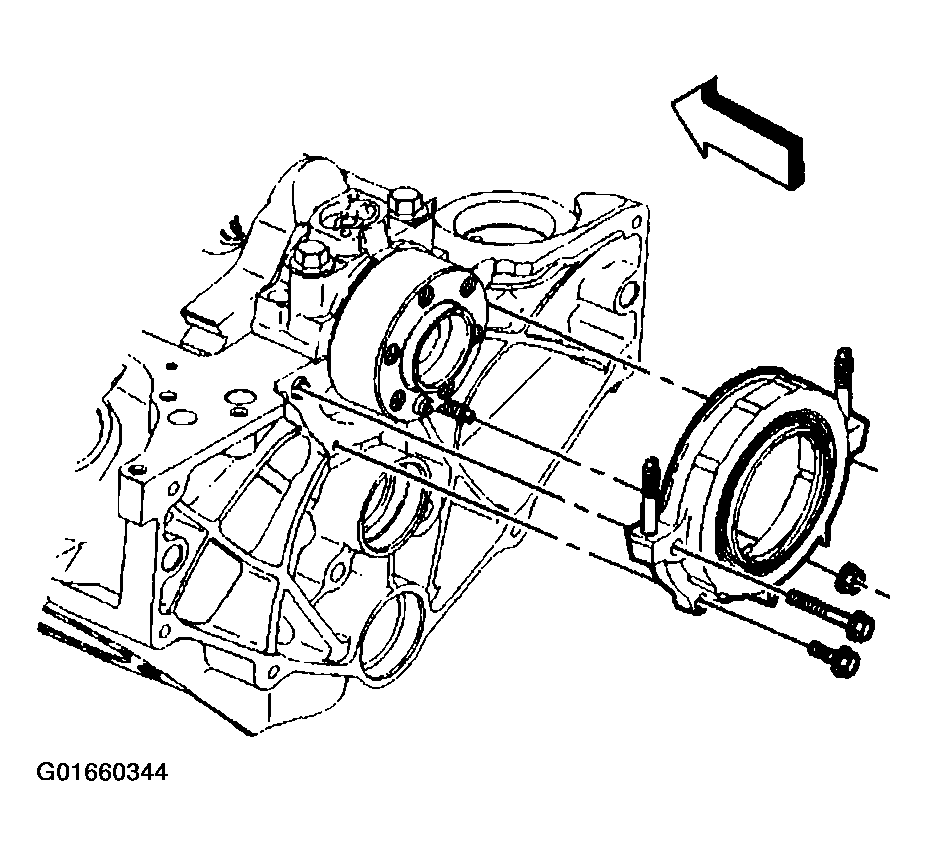

    Fig 2: Crankshaft Rear Oil Seal Housing, Nuts & Bolts
    G01660344Courtesy of GENERAL MOTORS CORP.
  5. Remove the crankshaft rear oil seal housing gasket.
  6. Discard the crankshaft rear oil seal housing gasket.

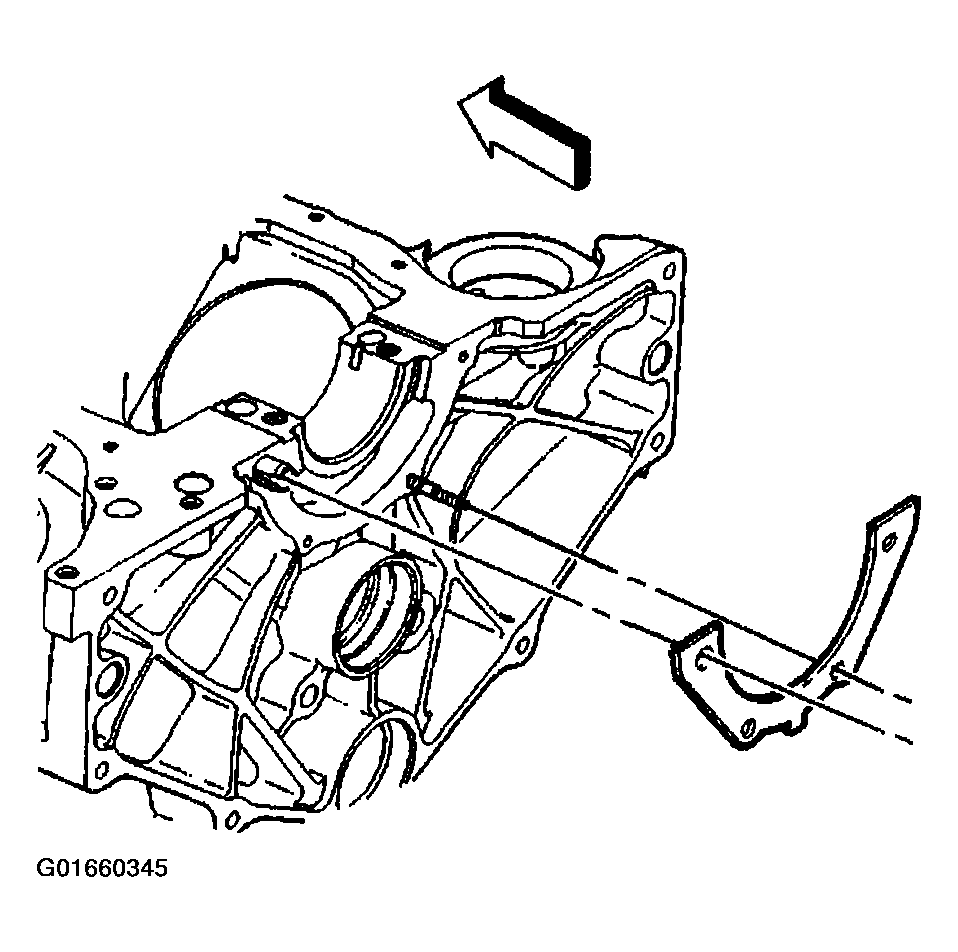

    Fig 3: Crankshaft rear Oil Seal Housing Gasket
    G01660345Courtesy of GENERAL MOTORS CORP.
  7. Remove the crankshaft rear oil seal housing retainer stud from the engine block.

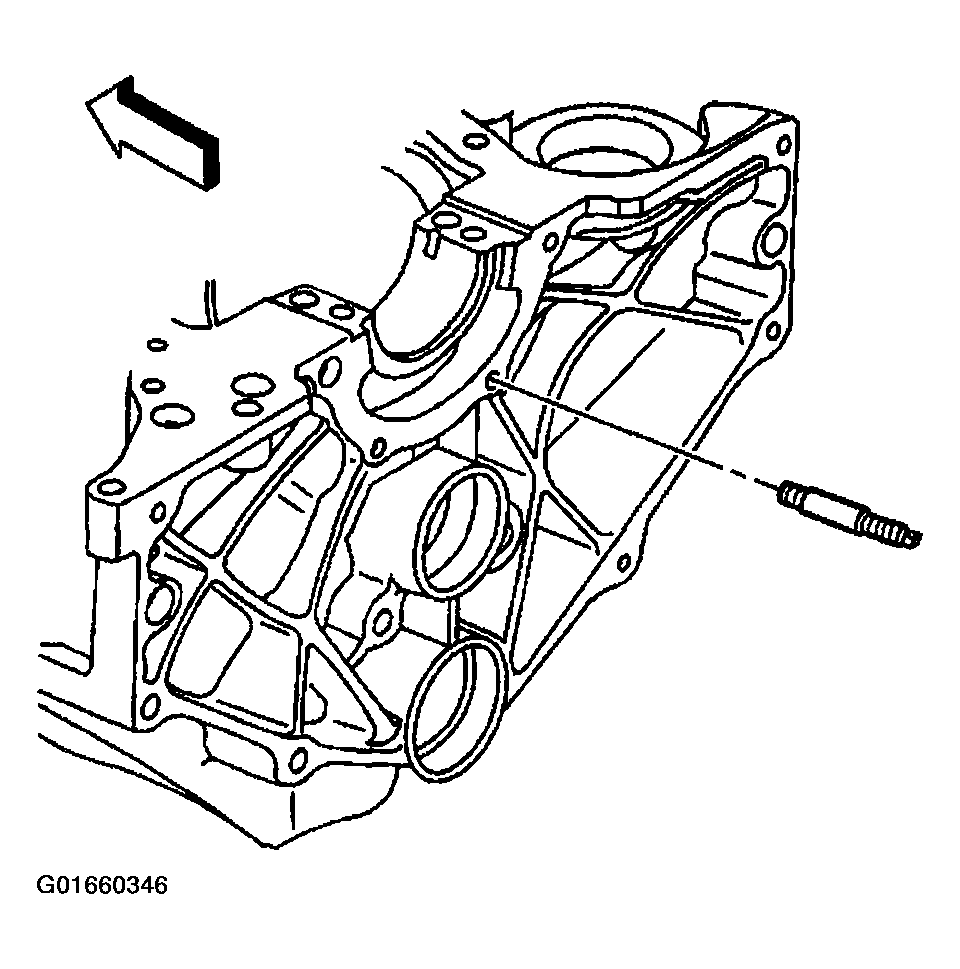

    Fig 4: Crankshaft Rear Oil Seal Housing Retainer Stud
    G01660346Courtesy of GENERAL MOTORS CORP.
