Tools Required

J 43276  Clutch Pilot Bearing Remover

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
NOTE: When using the J 43276 Clutch Pilot Bearing Remover always secure the J 43276-1 Clutch Pilot Bearing Remover tool body using a wrench. Do not allow the J 43276-1 tool body to rotate. Failing to do so will cause damage to the J 43276-1 tool body.
  1. Remove the clutch pilot bearing using the J 43276  .
    1. 1.1. Install the J 43276-1 tool body into the clutch pilot bearing.
    2. 1.2. Using a wrench secure the J 43276-1 tool body.
    3. 1.3. Insert the J 43276-2 forcing screw into the J 43276-1 tool body.
    4. 1.4. Rotate the J 43276-2 forcing screw clockwise into the J 43276-1 tool body until the clutch pilot bearing is completely removed from the crankshaft.
    5. 1.5. Rotate the J 43276-2 forcing screw counterclockwise to remove the J 43276-2 forcing screw from the J 43276-1 tool body.
    6. 1.6. Remove the J 43276-1 tool body from the clutch pilot bearing.
  2. Discard the clutch pilot bearing.

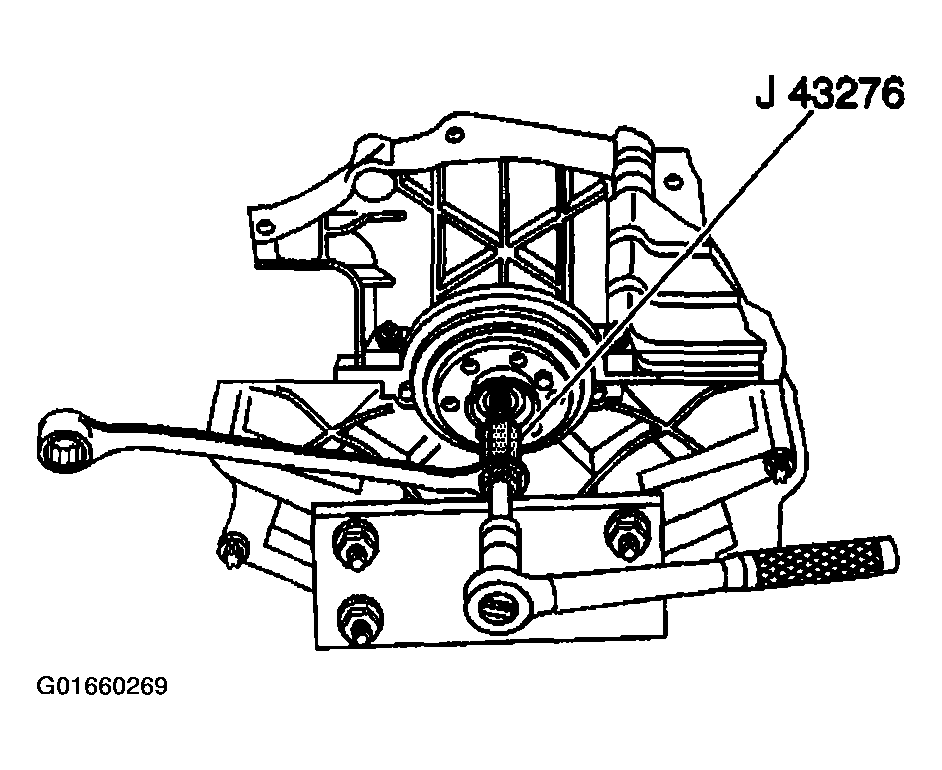

    Fig 1: Removing Clutch Pilot Bearing Using J 43276
    G01660269Courtesy of GENERAL MOTORS CORP.
