Tools Required

CAUTION: Refer to SAFETY GLASSES CAUTION in Cautions and Notices.
  1. Use the J 38834  and the J 26941  in order to remove the balance shaft rear bearing.
    1. 1.1. Install J 26941  legs behind the balance shaft rear bearing and secure.
    2. 1.2. Install the J 38834-1 with the short threaded end through the balance shaft bore in the front of the engine block.
    3. 1.3. Install the J 38834-1 into J 26941  .
    4. 1.4. Slide the J 38834-2 onto the J 38834-1 and into the balance shaft bore of the engine block.
    5. 1.5. Install the J 38834  bearing, washer, and nut onto the J 38834-1.
    6. 1.6. Using a wrench secure the J 38834-1 and then rotate the J 38834  nut clockwise until the balance shaft rear bearing is removed from the engine block.
    7. 1.7. Remove the J 26941  from the balance shaft rear bearing.

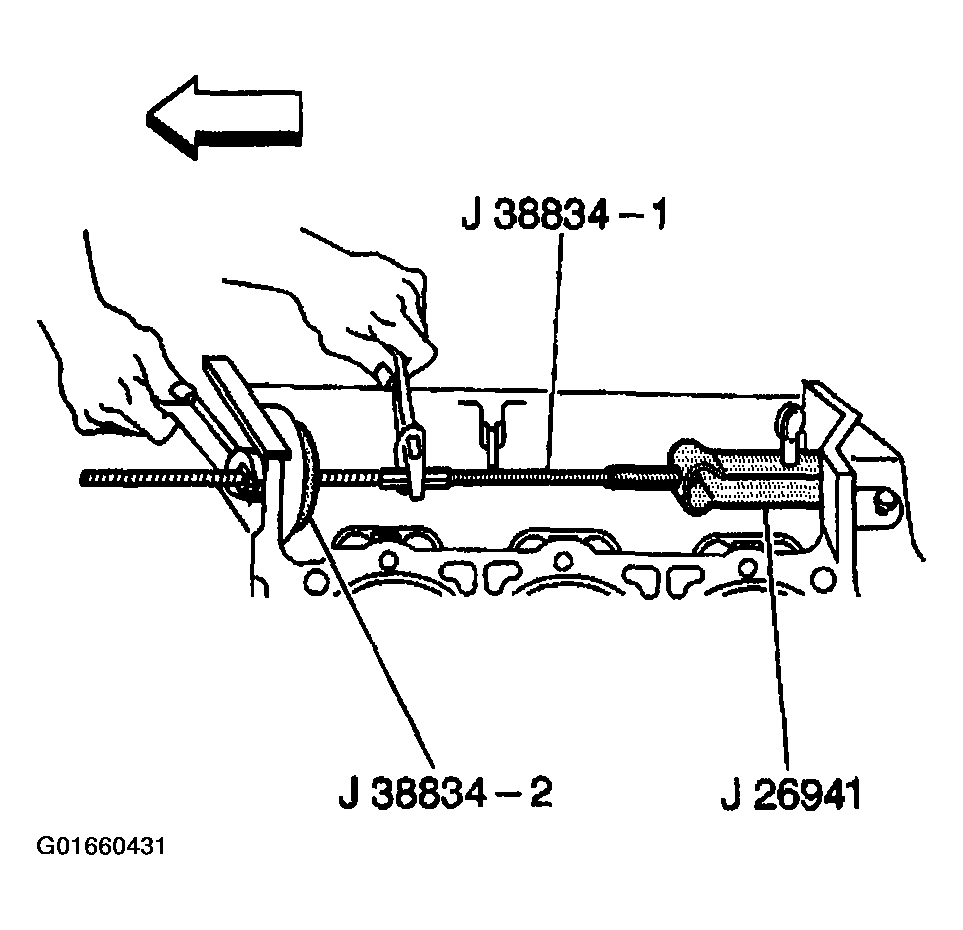

    Fig 1: Removing Balance Shaft Rear bearing Using J 38834 & J 26941
    G01660431Courtesy of GENERAL MOTORS CORP.
  2. Discard the balance shaft rear bearing.
