Engine Mechanical - 4.3L (On-Vehicle)
>>
Special Tools and Equipment
Special Tools and Equipment

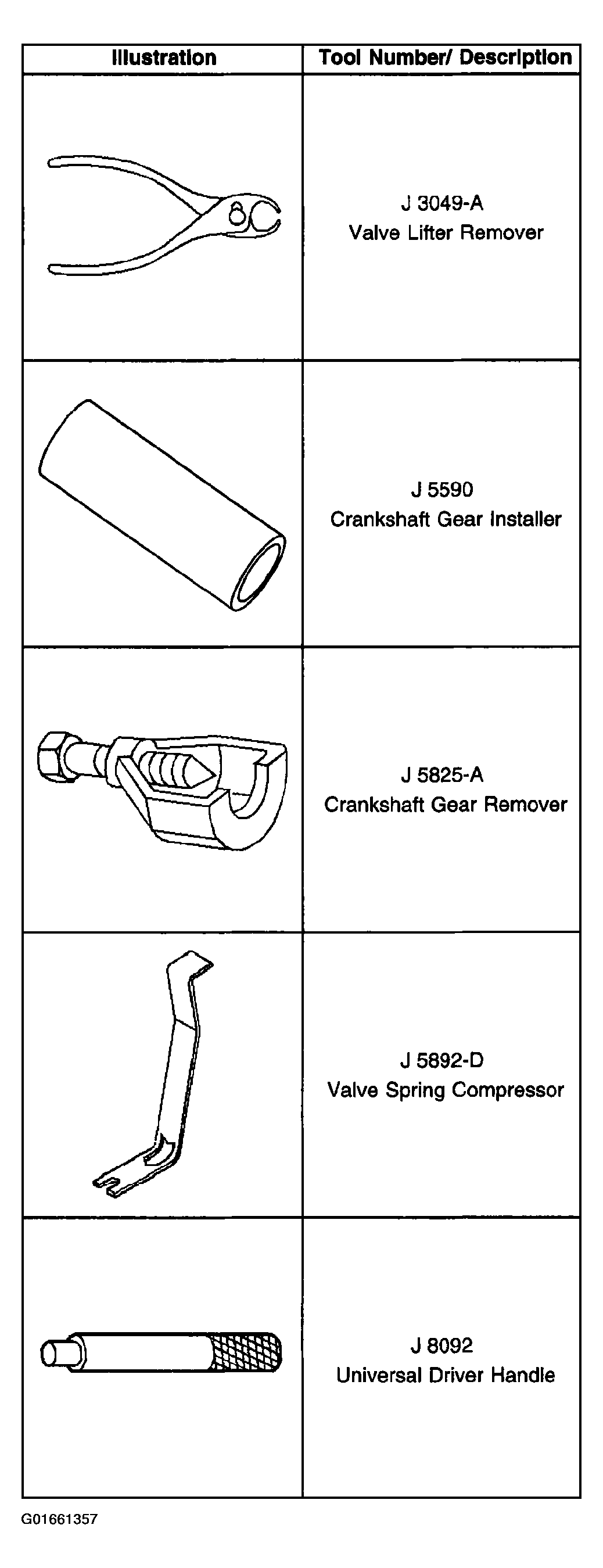

Fig 1: Special Tools & Equipment (J 3049-A To J 8092)
Courtesy of GENERAL MOTORS CORP.

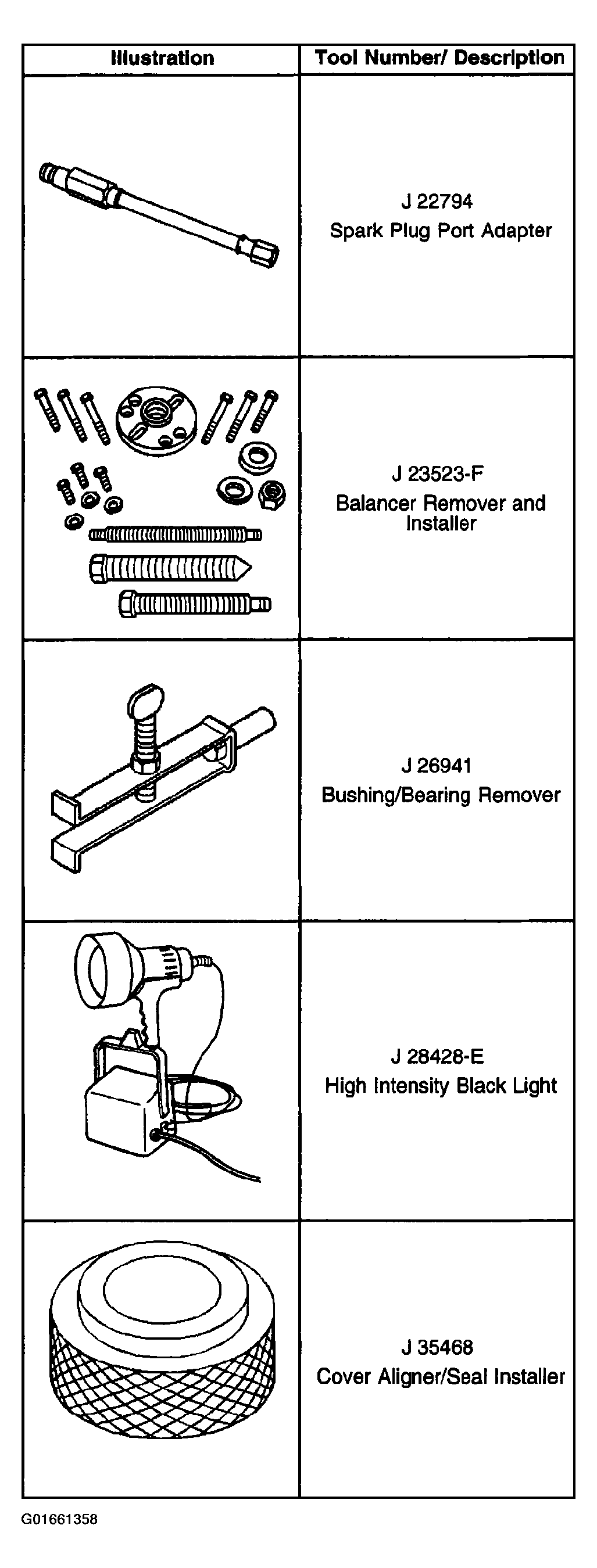

Fig 2: Special Tools & Equipment (J 22794 To J 35468)
Courtesy of GENERAL MOTORS CORP.

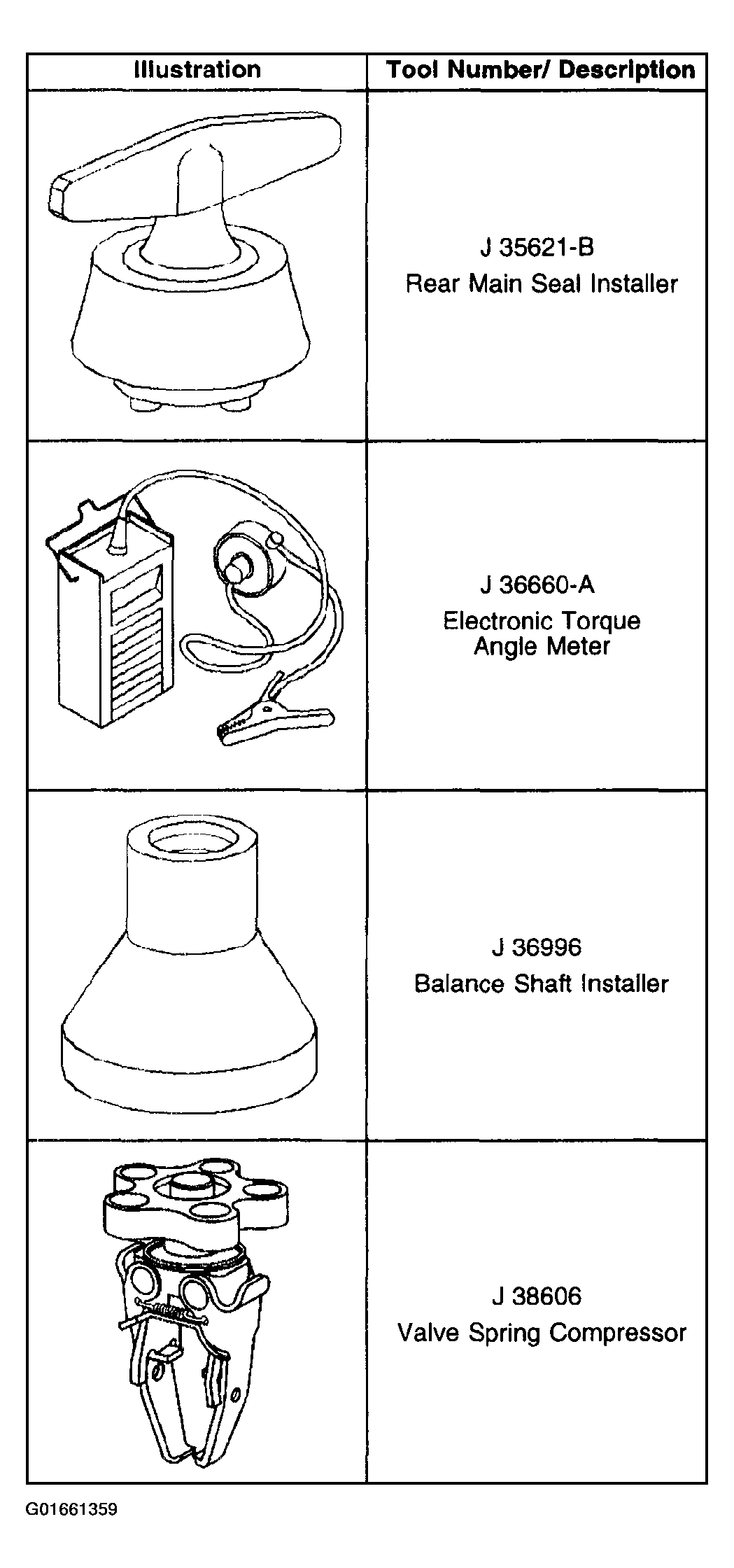

Fig 3: Special Tools & Equipment (J 35621-B To J 38606)
Courtesy of GENERAL MOTORS CORP.

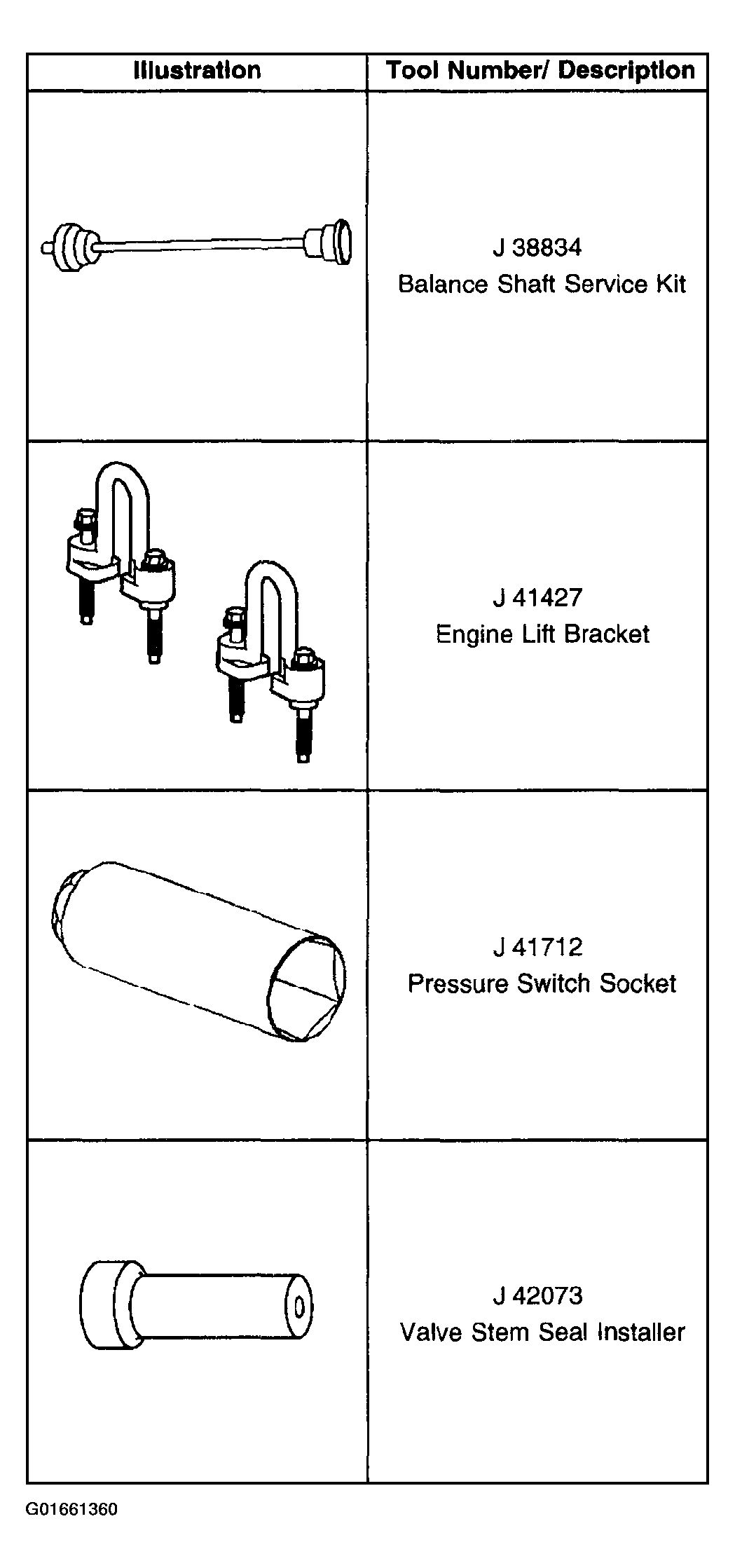

Fig 4: Special Tools & Equipment (J 38834 To J 42073)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
