Removal Procedure

  1. Disconnect the positive crankcase ventilation (PCV) valve hose assembly from the intake manifold.
  2. Disconnect the PCV valve hose from the valve rocker arm cover.

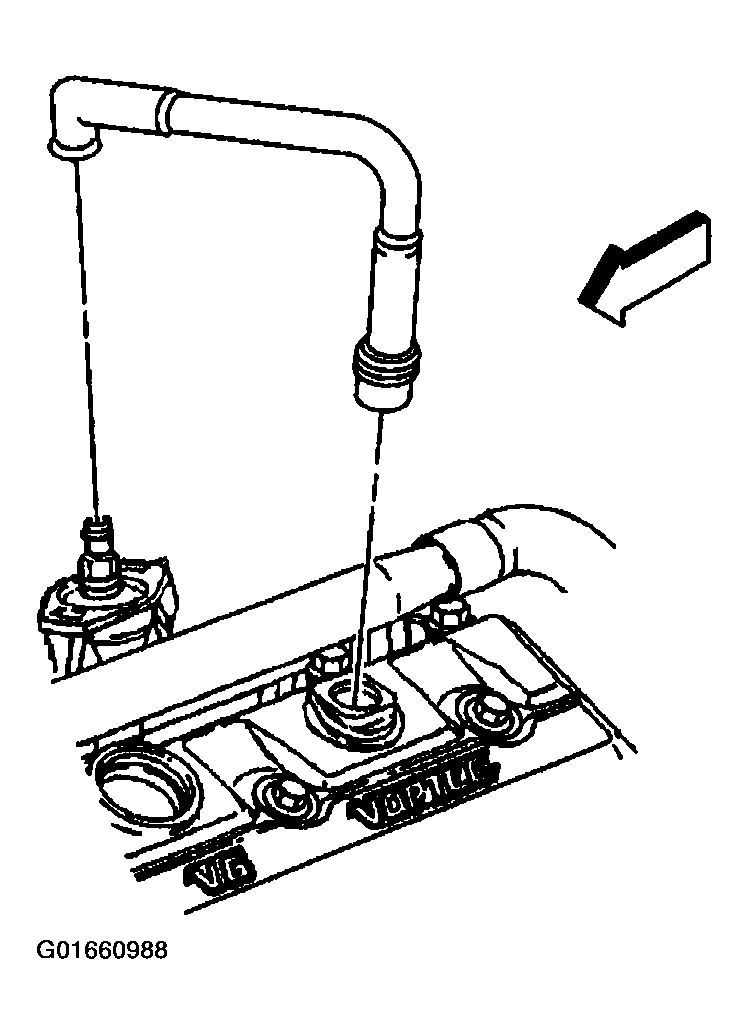

    Fig 1: PCV Valve Hose Assembly
    G01660988Courtesy of GENERAL MOTORS CORP.
  3. Turn and remove the PCV valve cover from the upper intake manifold.
  4. Remove and discard the seal (O-ring).

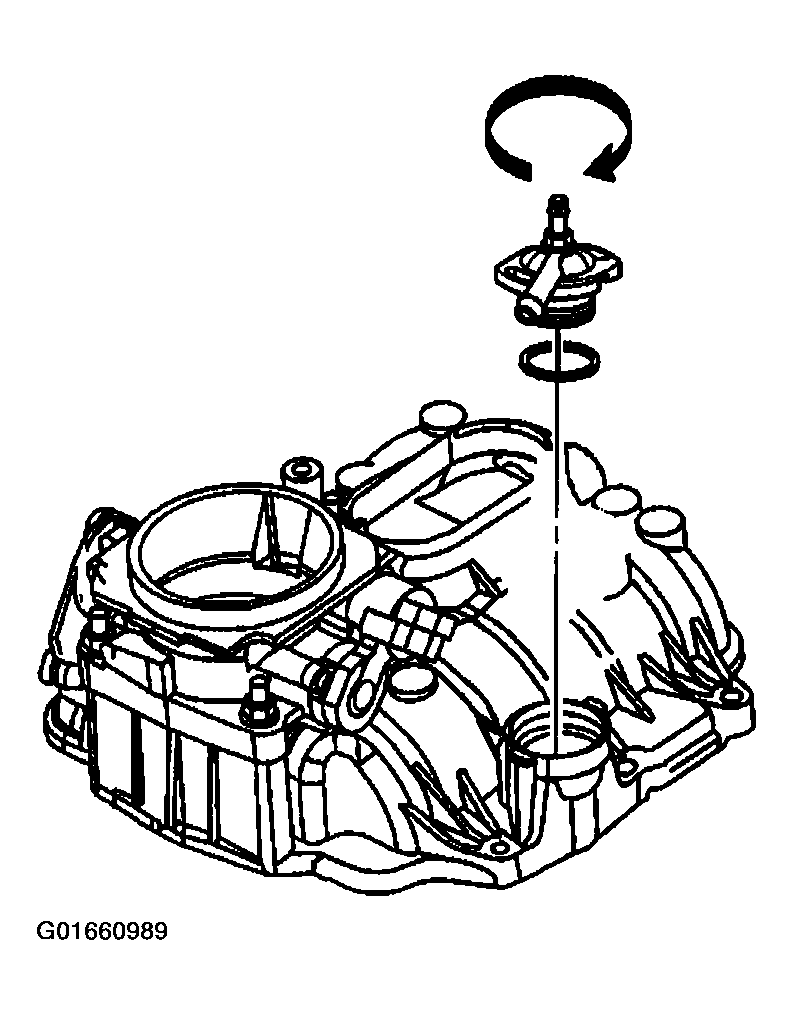

    Fig 2: PCV Valve & Seal
    G01660989Courtesy of GENERAL MOTORS CORP.
