Removal Procedure

Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
Remove the oil level indicator.
Remove the front differential assembly. Refer to DIFFERENTIAL CARRIER .
Remove the starter. Refer to STARTER MOTOR .

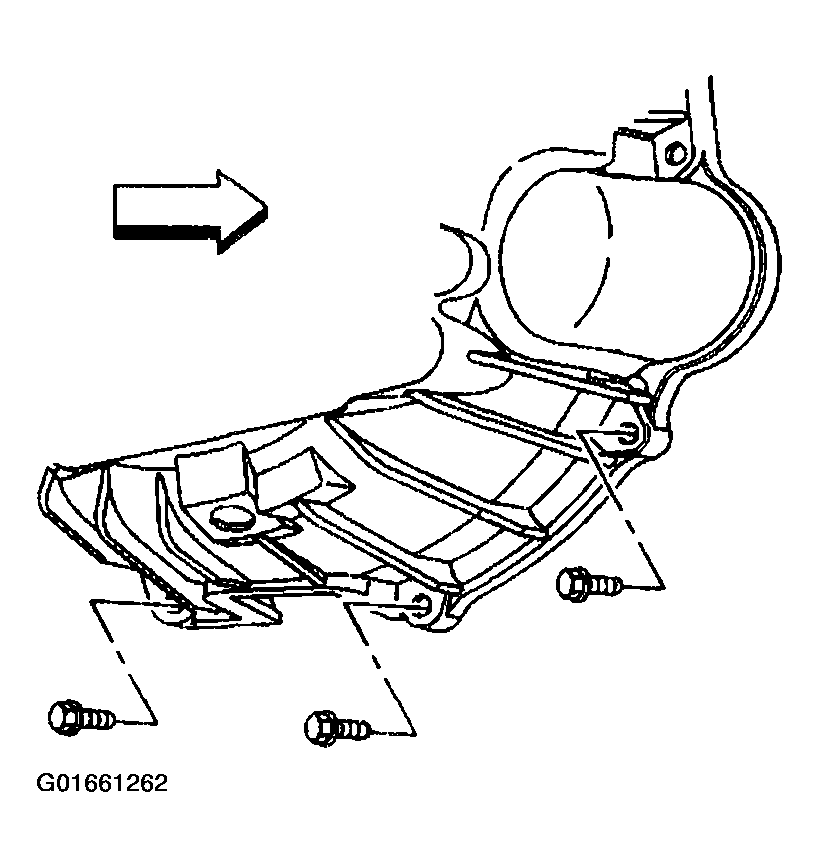

Remove the transmission cover.
Remove the oil pan drain plug and drain the engine oil into a suitable container.
Remove the remote oil filter pipe adapter. Refer to Oil Filter Adapter Replacement .

Fig 1: Transmission Cover & Bolts
Courtesy of GENERAL MOTORS CORP.
Remove the bolt holding the remote oil filter inlet and outlet hose clip to the oil pan

Fig 2: Remote Oil Filter Inlet & Outlet Hose Clip Bolt
Courtesy of GENERAL MOTORS CORP.

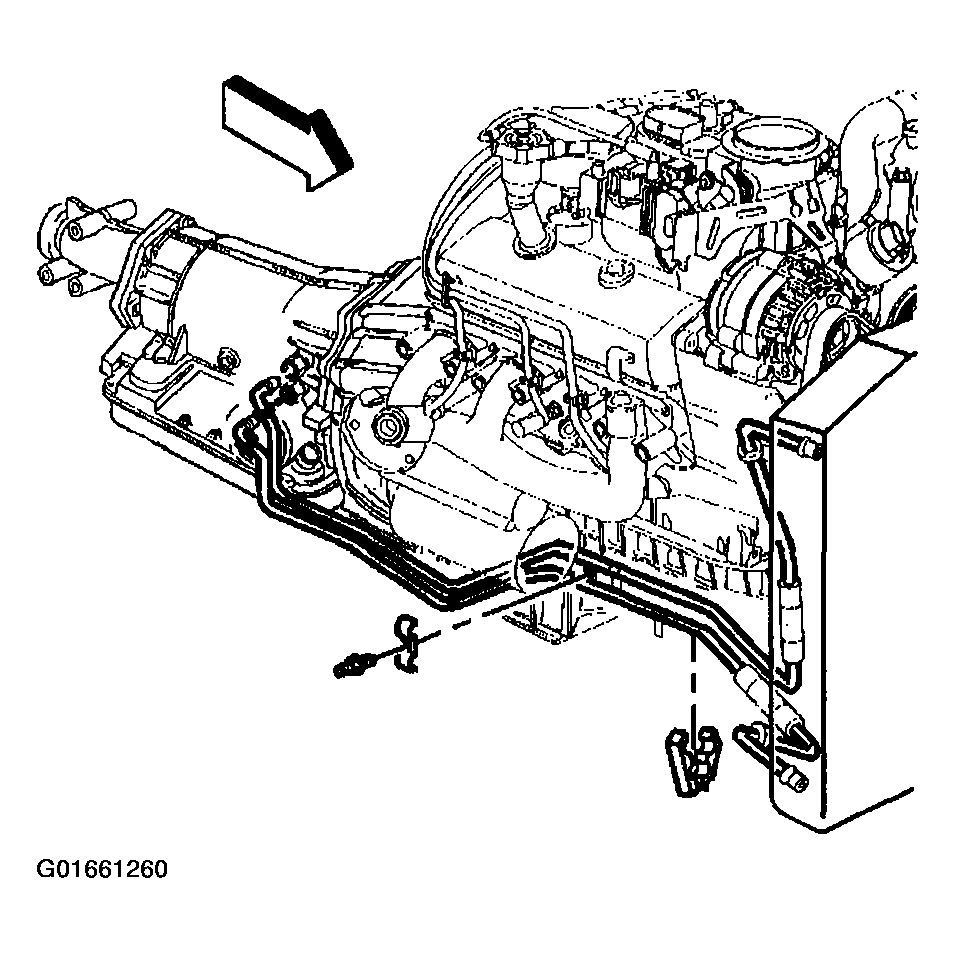

Remove the stud holding the bracket for the starter wire harness and if equipped, the transmission oil cooler pipes.

Fig 3: Transmission Oil Cooler Pipes, Starter Wire Harness Bracket & Stud
Courtesy of GENERAL MOTORS CORP.

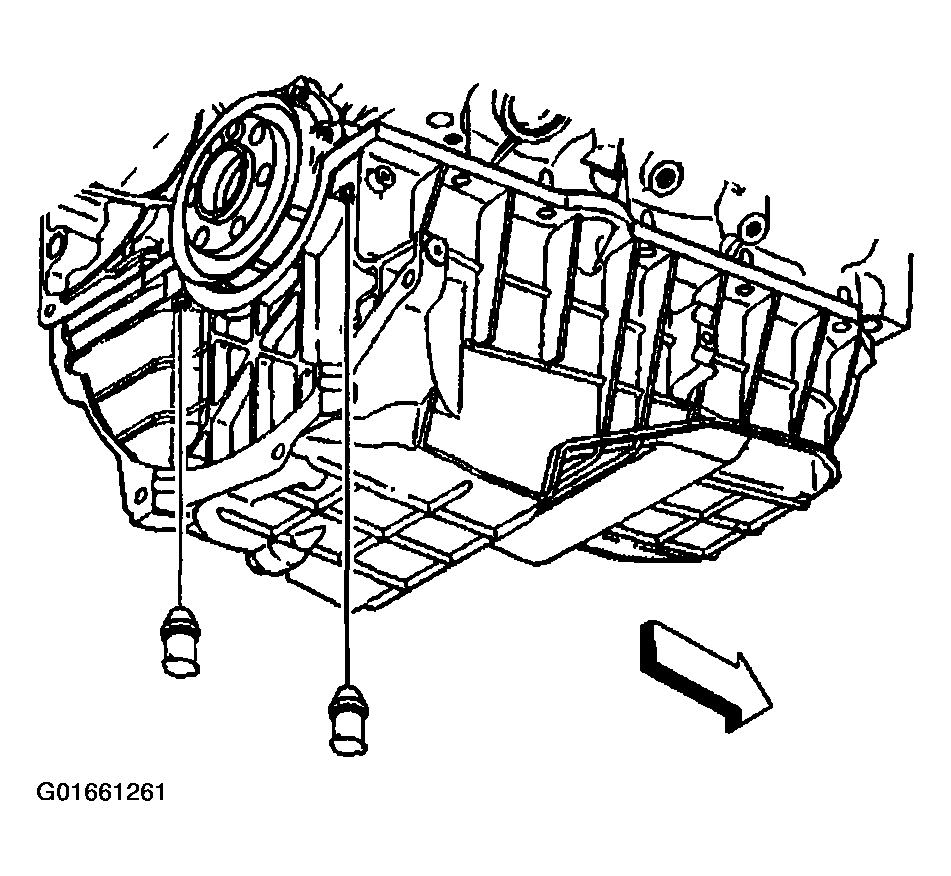

Remove the access plugs for the oil pan rear nuts.

Fig 4: Access Plugs
Courtesy of GENERAL MOTORS CORP.

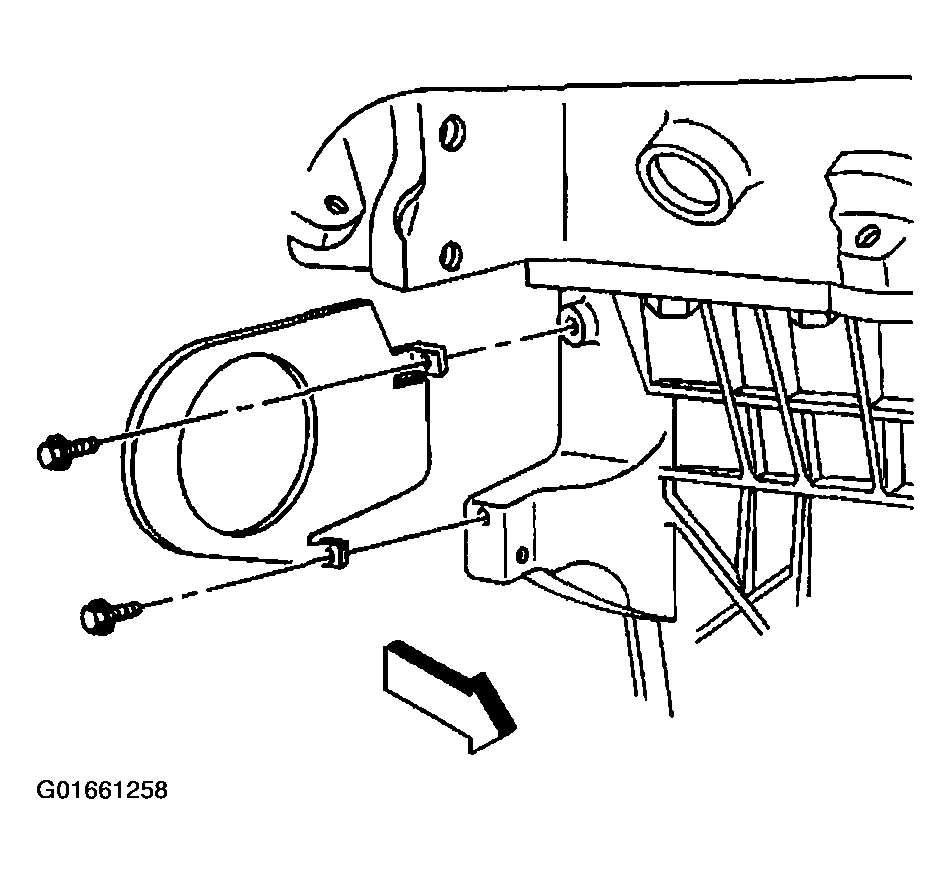

Remove the transmission to oil pan bolts (automatic transmission shown).

Fig 5: Transmission To Oil Pan Bolts
Courtesy of GENERAL MOTORS CORP.

Important: The low oil level sensor is not reusable. Use a NEW low oil sensor.

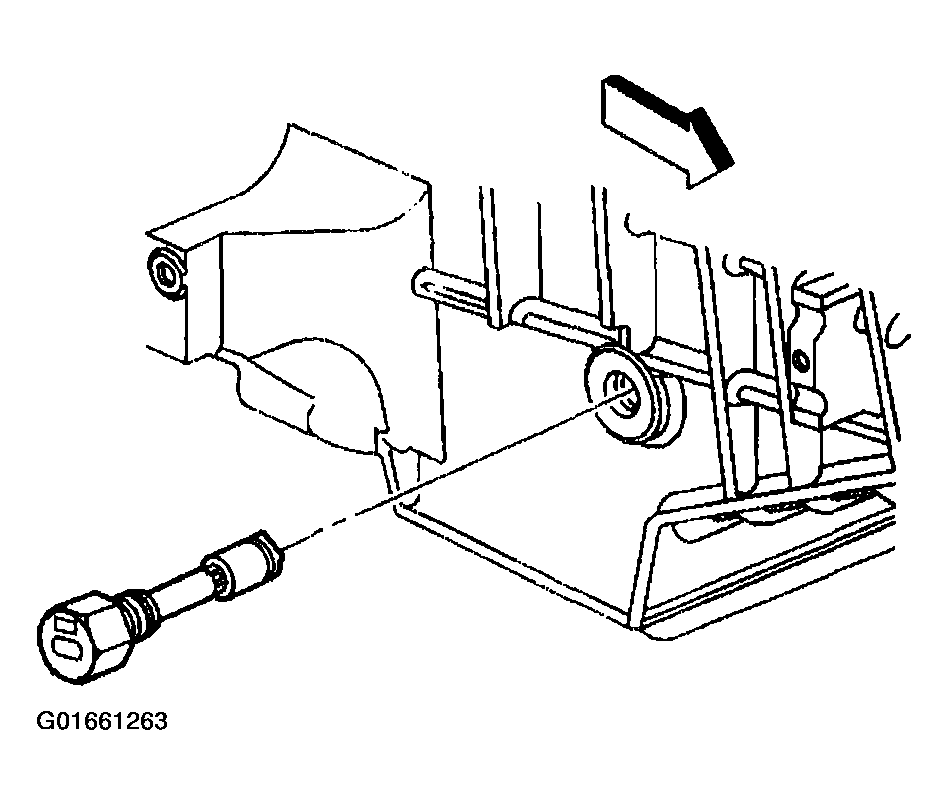

Remove and discard the engine oil level sensor (if applicable).

Fig 6: Engine Oil Level Sensor
Courtesy of GENERAL MOTORS CORP.

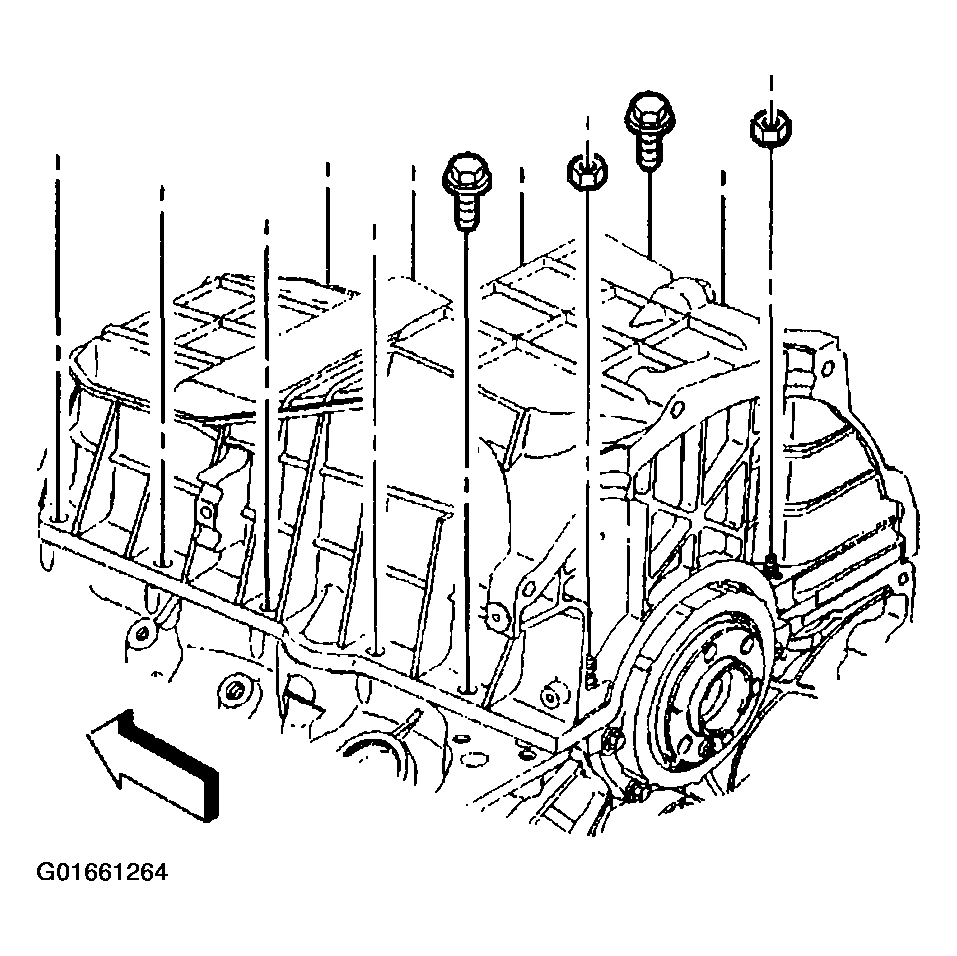

Remove the oil pan bolts and nuts.

Fig 7: Oil Pan Bolts & Nuts
Courtesy of GENERAL MOTORS CORP.

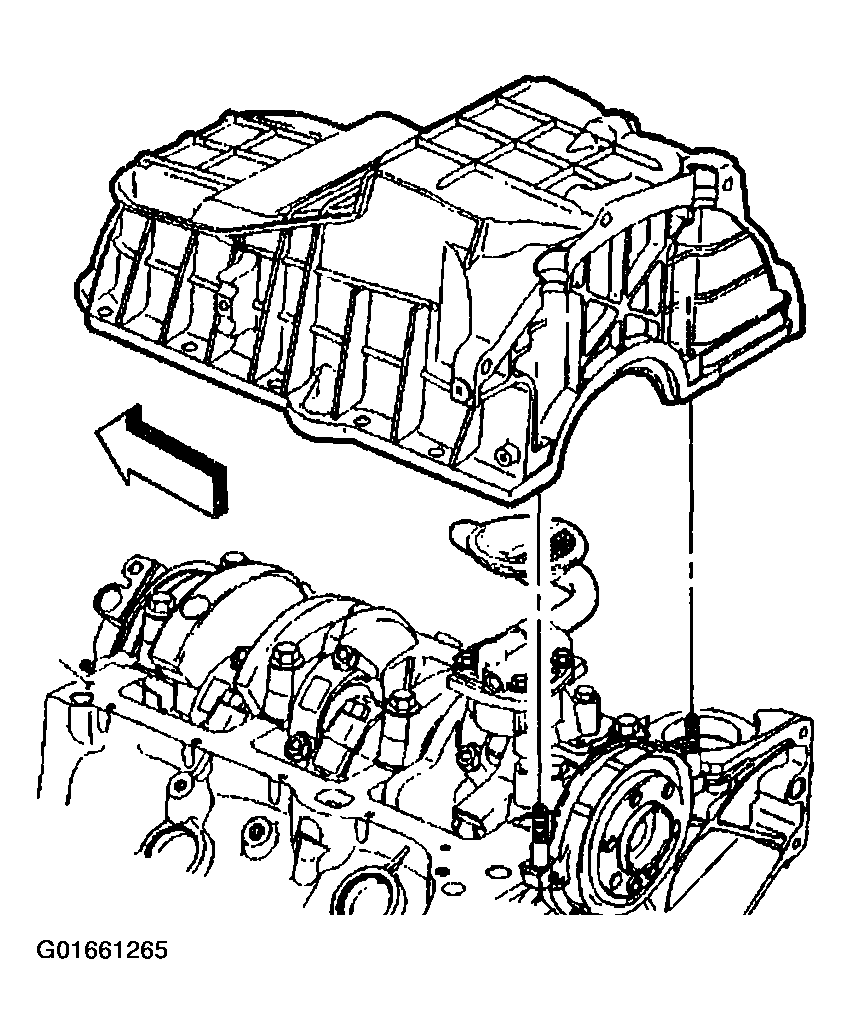

Remove the oil pan

Fig 8: Oil Pan
Courtesy of GENERAL MOTORS CORP.

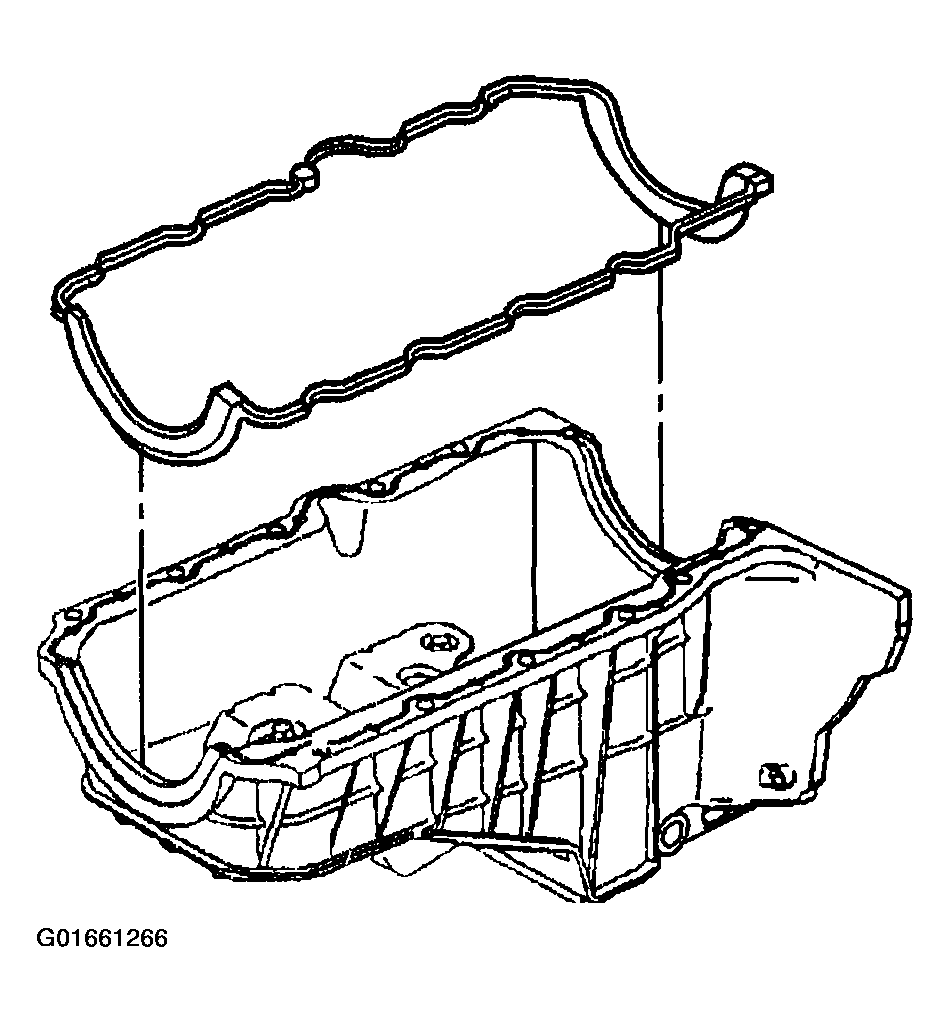

Remove the oil pan gasket.
Discard the oil pan gasket.
Clean all sealing surfaces on the engine and the oil pan Refer to OIL PAN CLEANING AND INSPECTION .

Fig 9: Oil Pan Gasket
Courtesy of GENERAL MOTORS CORP.
