Removal Procedure

  1. Remove the oil level indicator.
  2. Remove the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT .

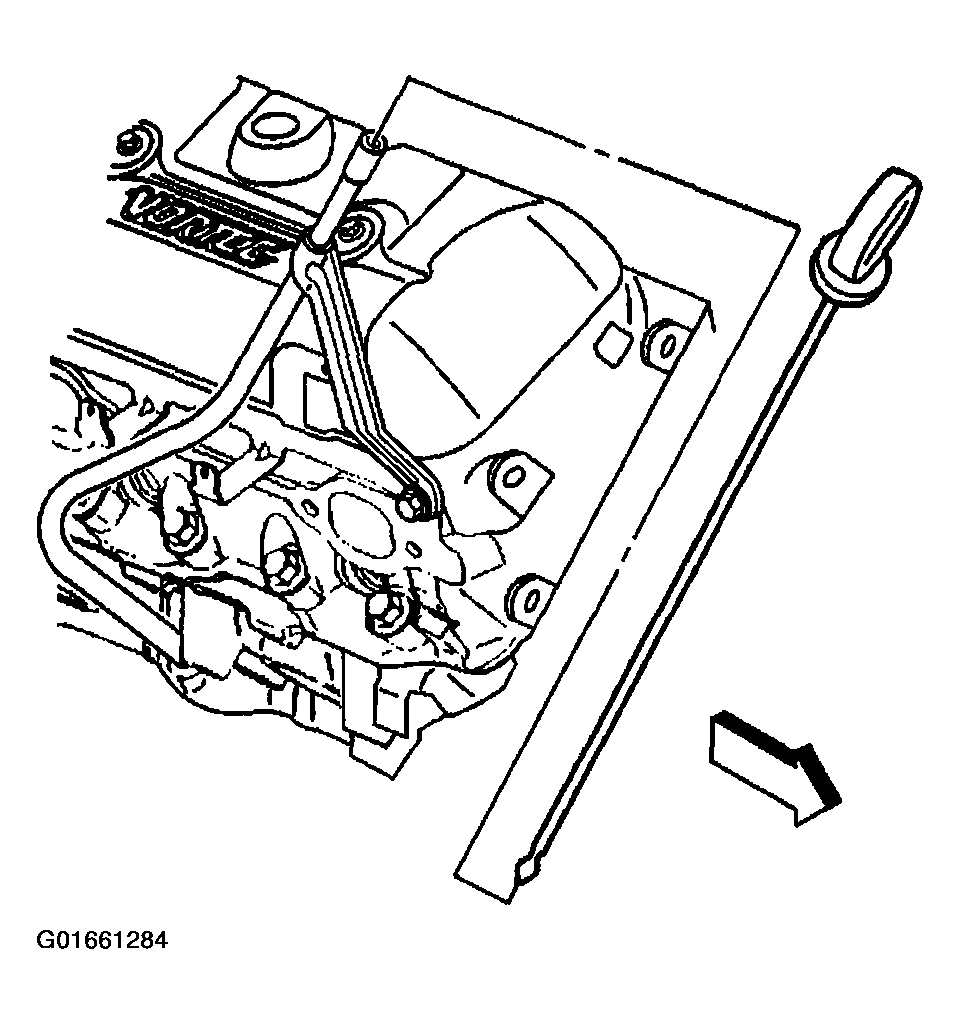

    Fig 1: Oil Level Indicator
    G01661284Courtesy of GENERAL MOTORS CORP.
  3. Remove the oil level indicator tube bolt.
  4. Remove the oil level indicator tube from the engine using a twisting motion
  5. Clean the old sealer from the oil level indicator tube and the engine block.

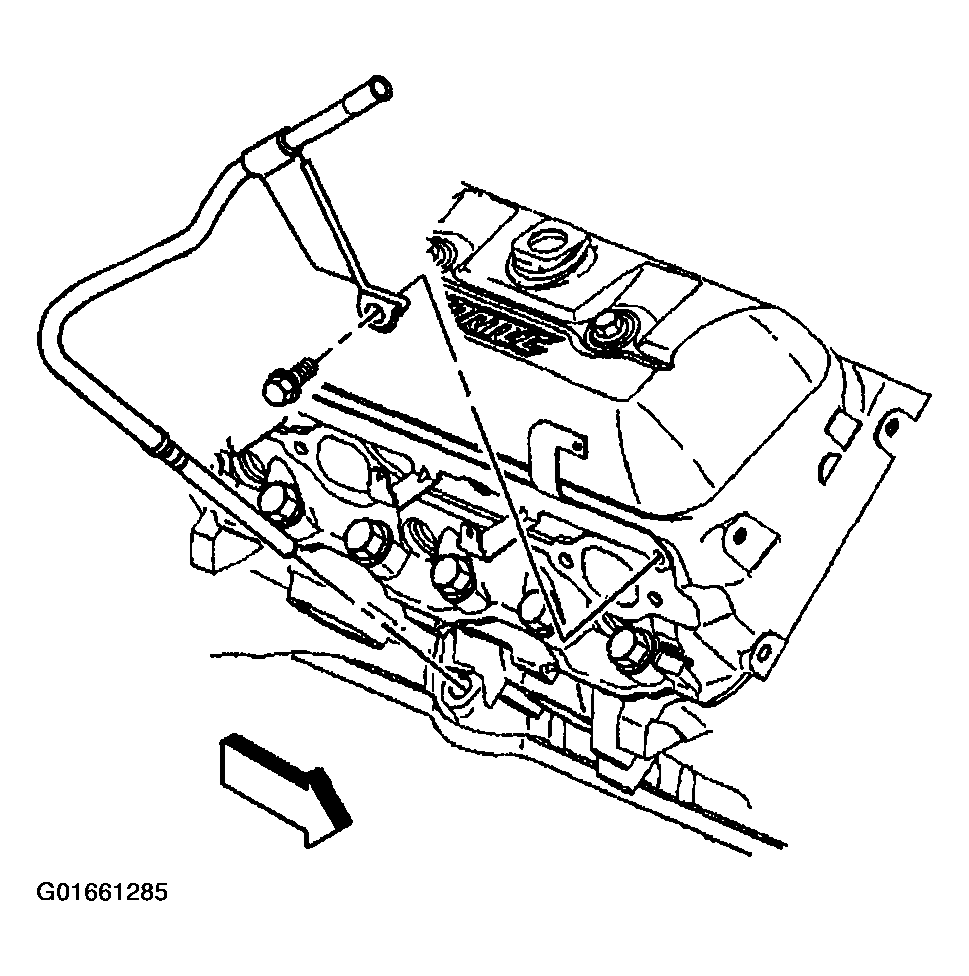

    Fig 2: Oil Level Indicator Tube & Bolt
    G01661285Courtesy of GENERAL MOTORS CORP.
