Installation Procedure

  1. Apply sealant GM P/N 12346004 or equivalent around the oil level indicator tube 13 mm (0.5 in) below the tube bead.
  2. Install the oil level indicator tube into the engine block. Rotate the oil level indicator tube into position
    NOTE: Refer to FASTENER NOTICE .
  3. Install the oil level indicator tube bolt.

    Tighten

    Tighten the oil level indicator tube bolt to 12 N.m (106 lb in).

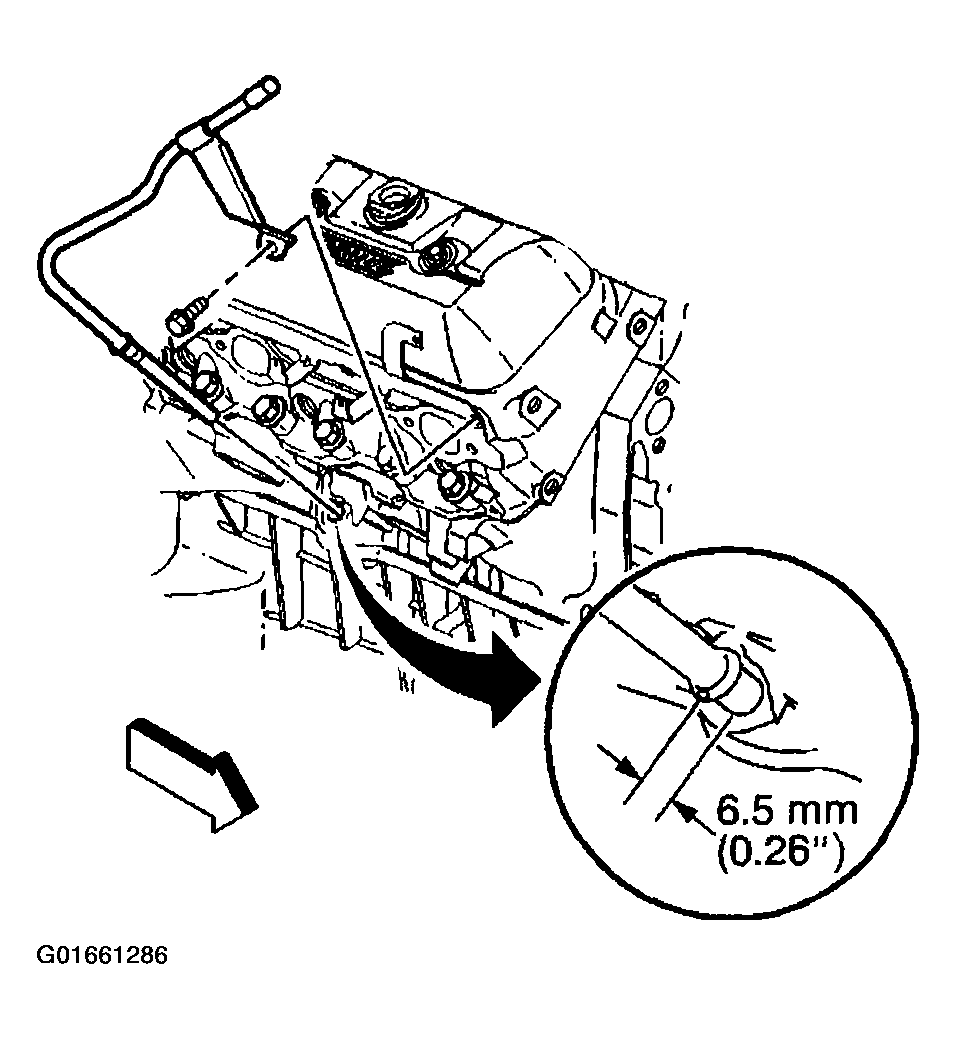

    Fig 1: Installing Oil Level Indicator Tube
    G01661286Courtesy of GENERAL MOTORS CORP.
  4. Install the right exhaust manifold. Refer to EXHAUST MANIFOLD REPLACEMENT - RIGHT .
  5. Install the oil level indicator.

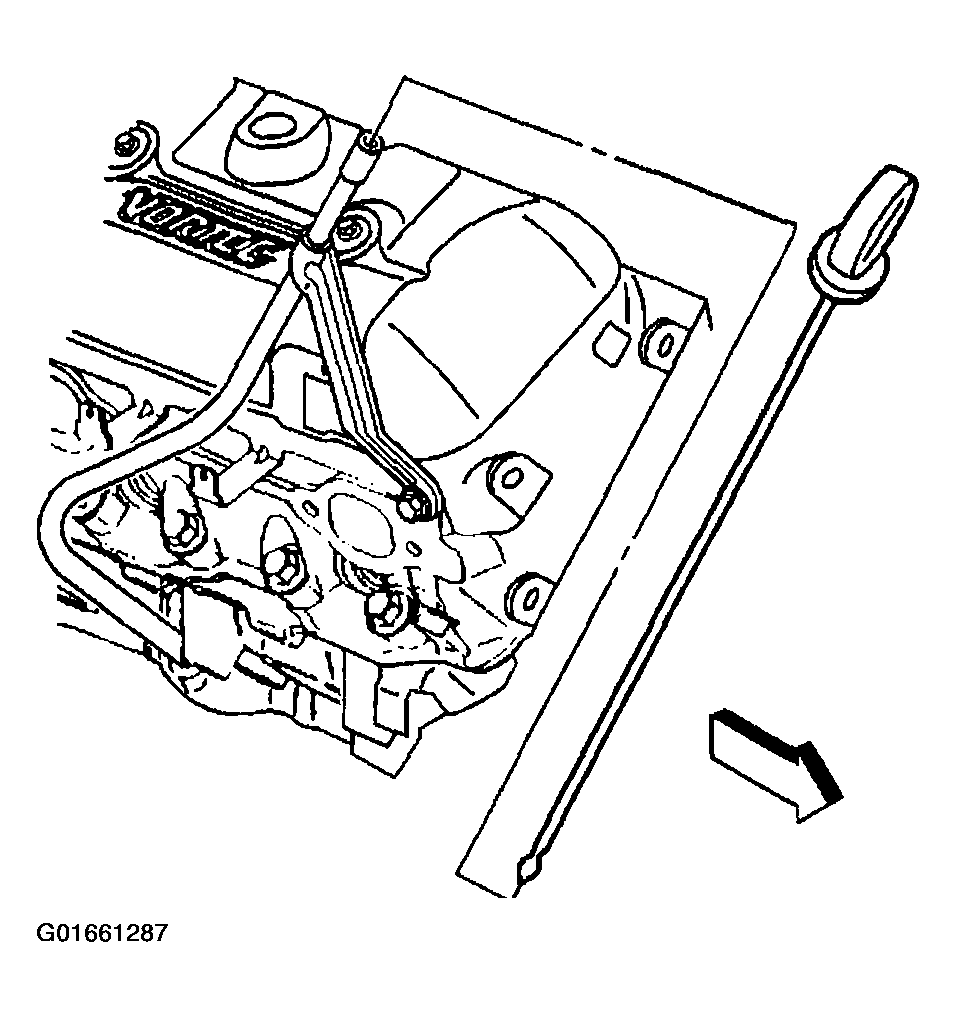

    Fig 2: Oil Level Indicator
    G01661287Courtesy of GENERAL MOTORS CORP.
