Removal Procedure

Important:  Clean the area around the sensor and Distributor before removal. Do not allow debris to enter the engine.

1. Remove the distributor. Refer to DISTRIBUTOR .
2. Disconnect the engine oil pressure sensor electrical connector.
3. Remove the engine oil pressure sensor using the J 41712.

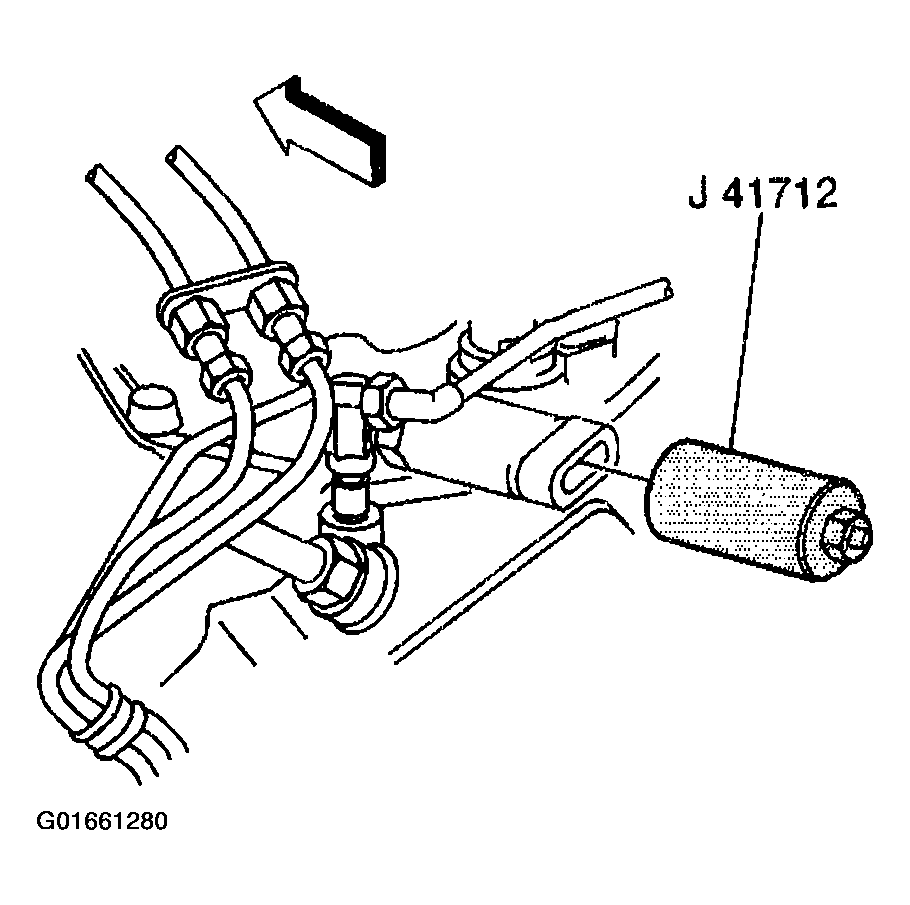

   Fig 1: Engine Oil Pressure Sensor & J 41712

   Courtesy of GENERAL MOTORS CORP.

   Important:  Note the alignment of the engine oil pressure sensor fitting prior to removal.

4. Remove the engine oil pressure sensor fitting, if necessary.

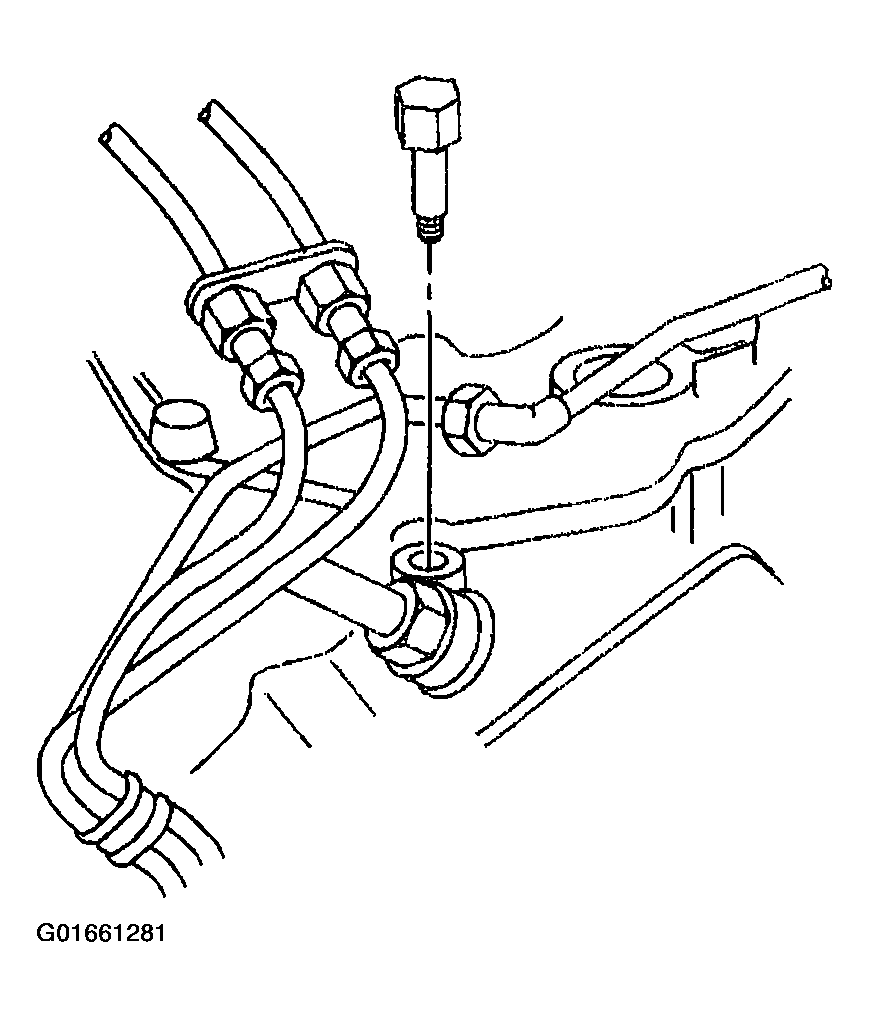

   Fig 2: Engine Oil Pressure Sensor Fitting

   Courtesy of GENERAL MOTORS CORP.
