Installation Procedure

  1. Apply sealant GM P/N 12346004 or equivalent to the threads of the fitting and/or the engine oil pressure sensor.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the engine oil pressure sensor fitting, if removed.

    Tighten

    Tighten the engine oil pressure sensor fitting to 15 N.m (11 lb ft).

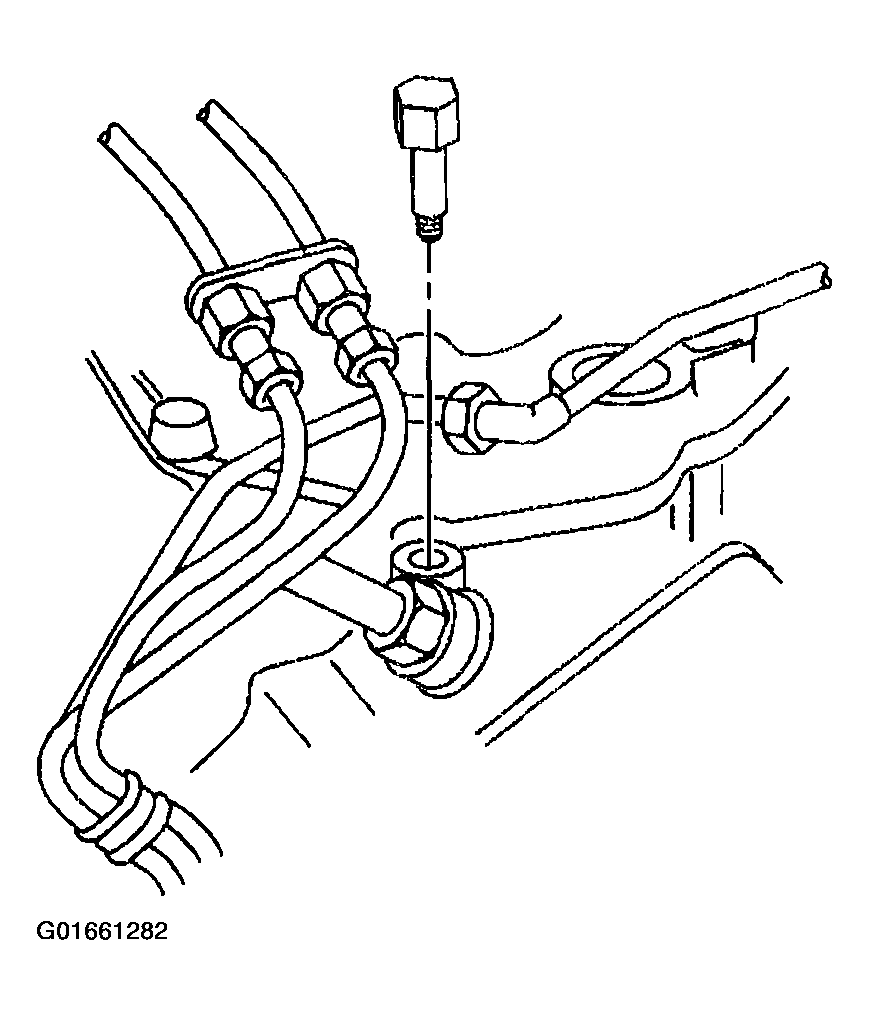

    Fig 1: Engine Oil Pressure Sensor Fitting
    G01661282Courtesy of GENERAL MOTORS CORP.
  3. Install the engine oil pressure sensor.

    Tighten

    Using the J 41712, tighten the engine oil pressure sensor to 30 N.m (22 lb ft).

  4. Connect the engine oil pressure sensor electrical connector.
  5. Install the distributor. Refer to DISTRIBUTOR .
  6. Check and adjust engine oil level.

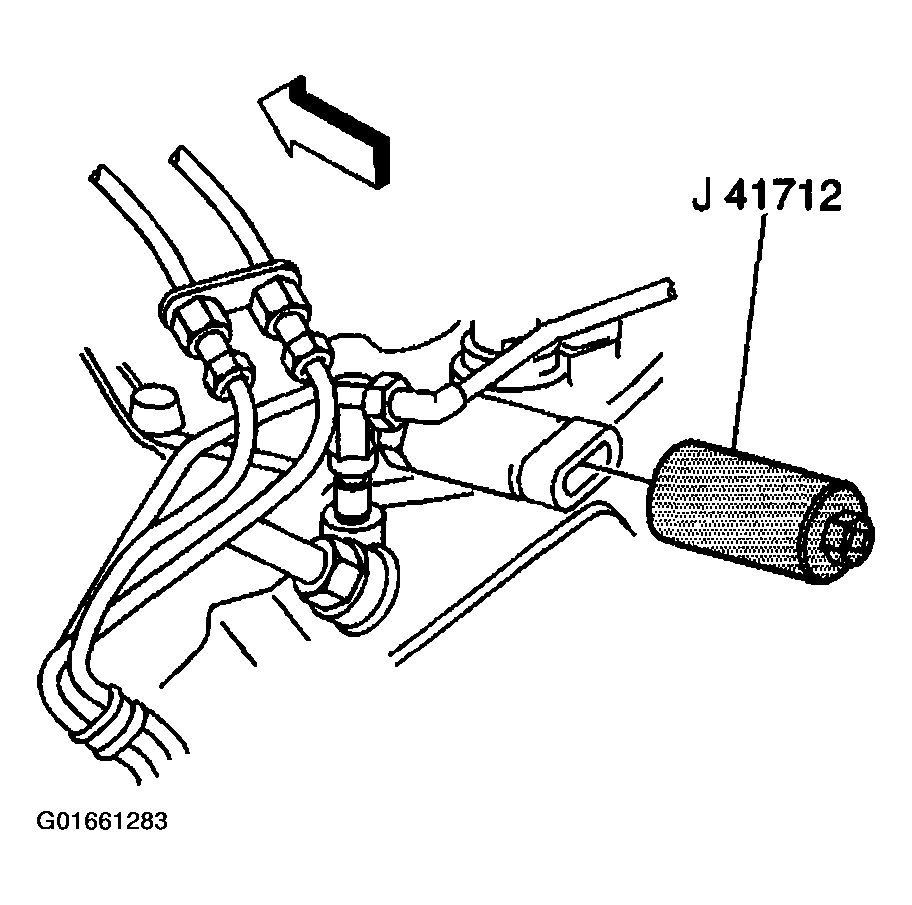

    Fig 2: Engine Oil Pressure Sensor & J 41712
    G01661283Courtesy of GENERAL MOTORS CORP.
