Installation Procedure

  1. Sub-assemble the engine mount, shield, and one bolt.
    Fig 1: Assemble Engine Mount, Shield & One Bolt
    G01660976Courtesy of GENERAL MOTORS CORP.
  2. Install the engine mount and shield to the engine.

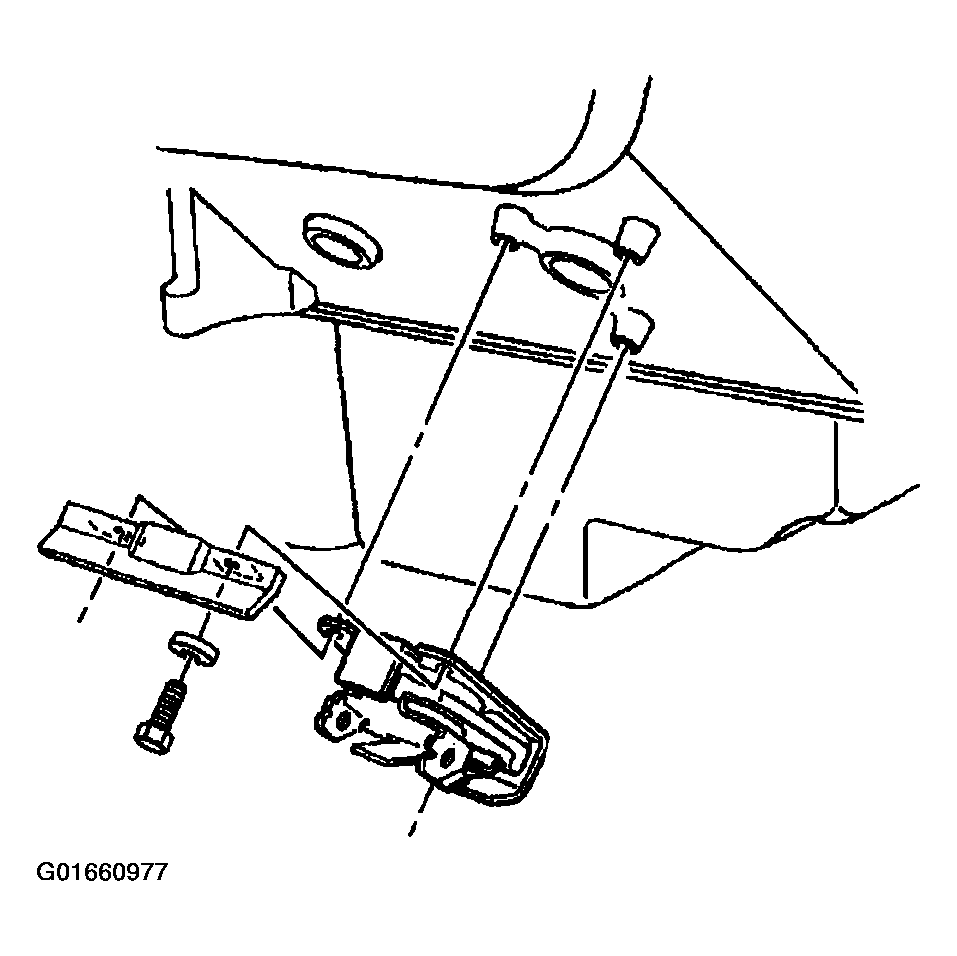

    Fig 2: Engine Mount & Shield At Engine
    G01660977Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the engine mount to engine bolts.

    Tighten

    Tighten the engine mount to engine bolts to 55 N.m (33 lb ft).

  4. Install the engine mount frame bracket to the frame.
  5. Install the engine mount frame bracket bolts.

    Tighten

    Tighten the engine mount frame bracket bolts to 45 N.m (33 lb ft).

  6. Lower the engine and remove the jack.
    Fig 3: Engine Mount Frame Bracket & Bolt
    G01660978Courtesy of GENERAL MOTORS CORP.
  7. Install the engine mount through-bolts and nuts.

    Tighten

    Tighten the through-bolts or the nuts to the following:

    • Tighten the through-bolts to 74 N.m (55 lb ft).
    • Tighten the nuts to 63 N.m (46 lb ft).
  8. Install the starter, if removed. Refer to STARTER MOTOR .
  9. Lower the vehicle.

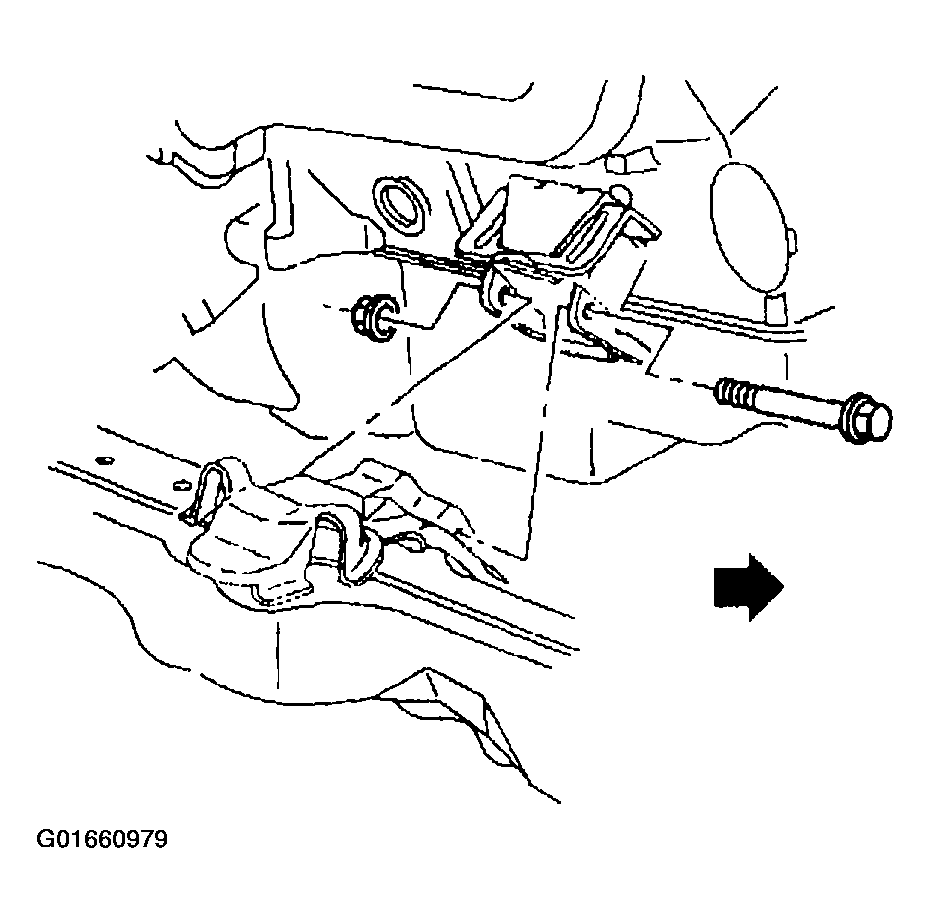

    Fig 4: Engine Mount Through-Bolt & Nut
    G01660979Courtesy of GENERAL MOTORS CORP.
