Installation Procedure

Important:  If replacing the engine flywheel (manual transmission), note the position and length of the original flywheel weights (if applicable). Flywheel weights of the same length must be installed into the new engine flywheel in the same location as the old flywheel weights were in the old engine flywheel.

1. Note the position of the flywheel weights and install the NEW flywheel weights as required.

   A properly installed flywheel weight will be flush or slightly below flush with the face of the engine flywheel.

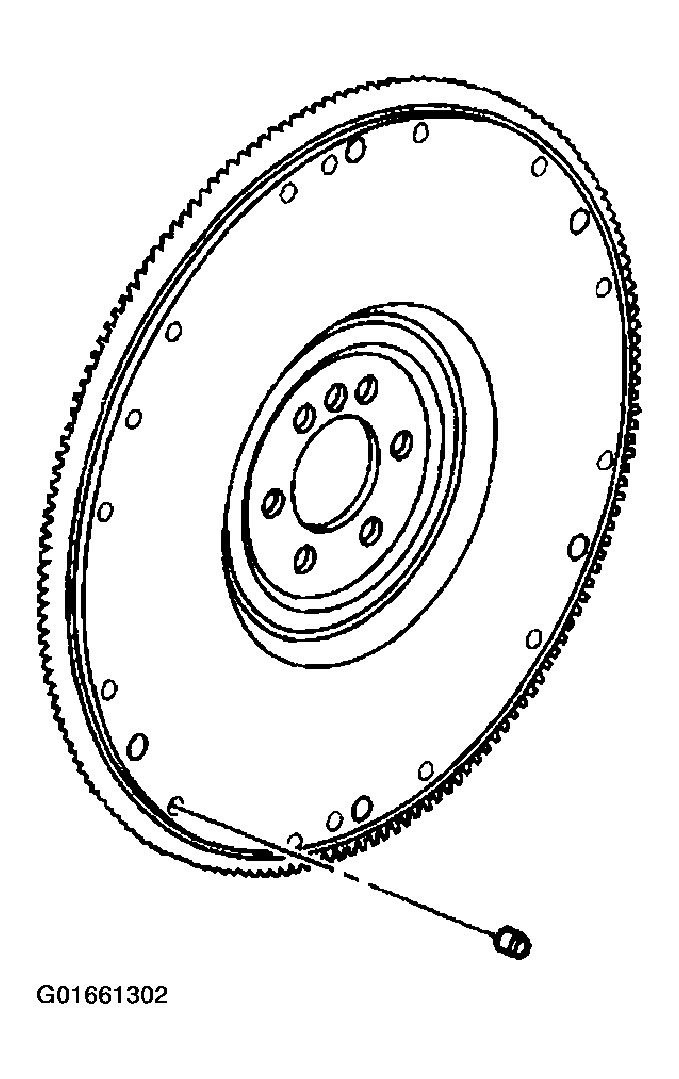

   Fig 1: Flywheel Weights

   Courtesy of GENERAL MOTORS CORP.
2. Install the engine flywheel (1 or 2) to the crankshaft.

   Align the engine flywheel locator hole to the flywheel locator pin

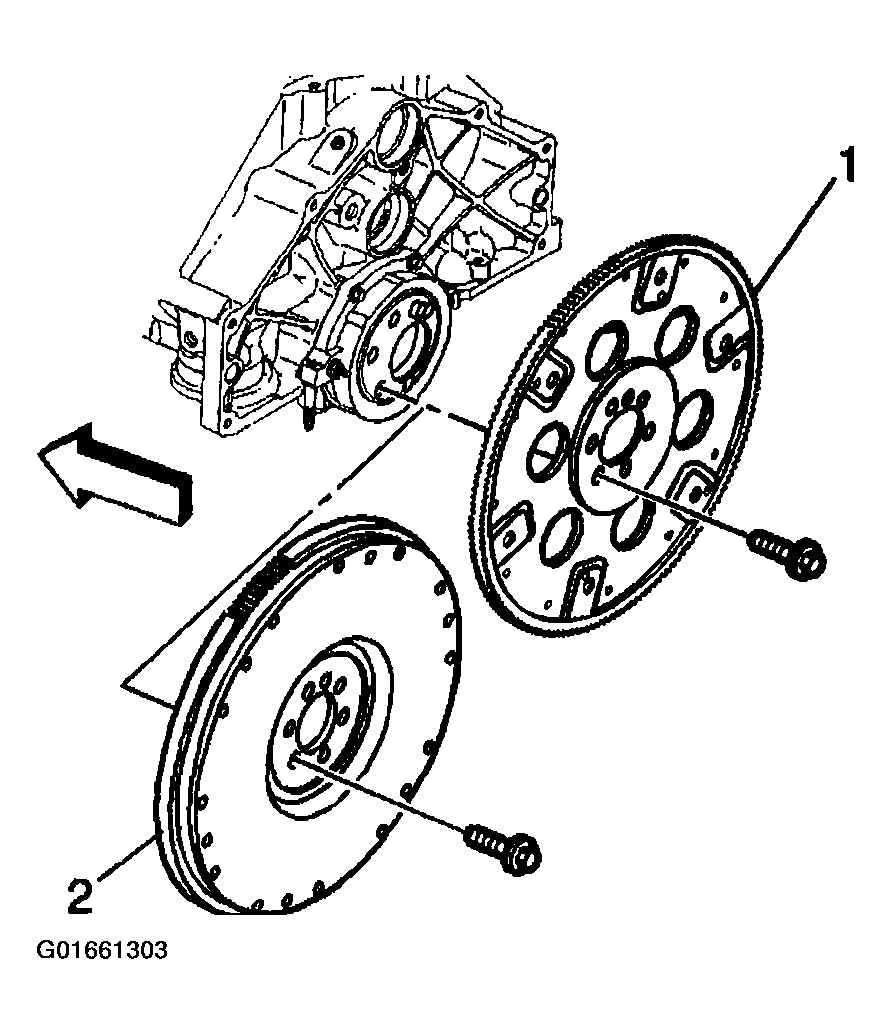

   Fig 2: Engine Flywheel & Bolts

   Courtesy of GENERAL MOTORS CORP.
   NOTE: Refer to FASTENER NOTICE .
3. Install the engine flywheel bolts.

   Tighten

   Tighten the engine flywheel bolts in sequence to 100 N.m (74 lb ft).

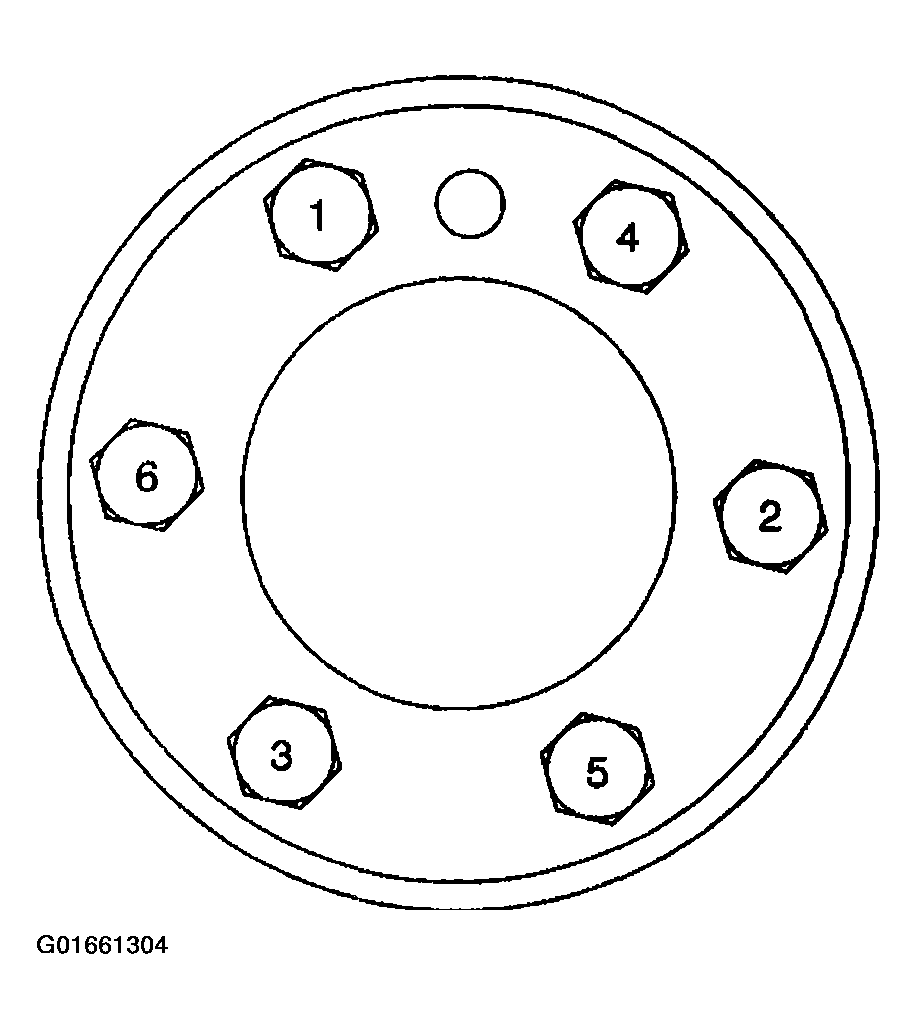

Fig 3: Engine Flywheel Bolts Tightening Sequence
Courtesy of GENERAL MOTORS CORP.
4. Install the clutch assembly, if equipped. Refer to CLUTCH ASSEMBLY & PILOT BEARING .
5. Install the transmission
   • Refer to TRANSMISSION for Automatic Transmission - 4L60-E.
   • Refer to TRANSMISSION REPLACEMENT for Manual Transmission - NV 3500.
