Removal Procedure

  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Remove the bolt.
  3. Remove the drive belt tensioner.

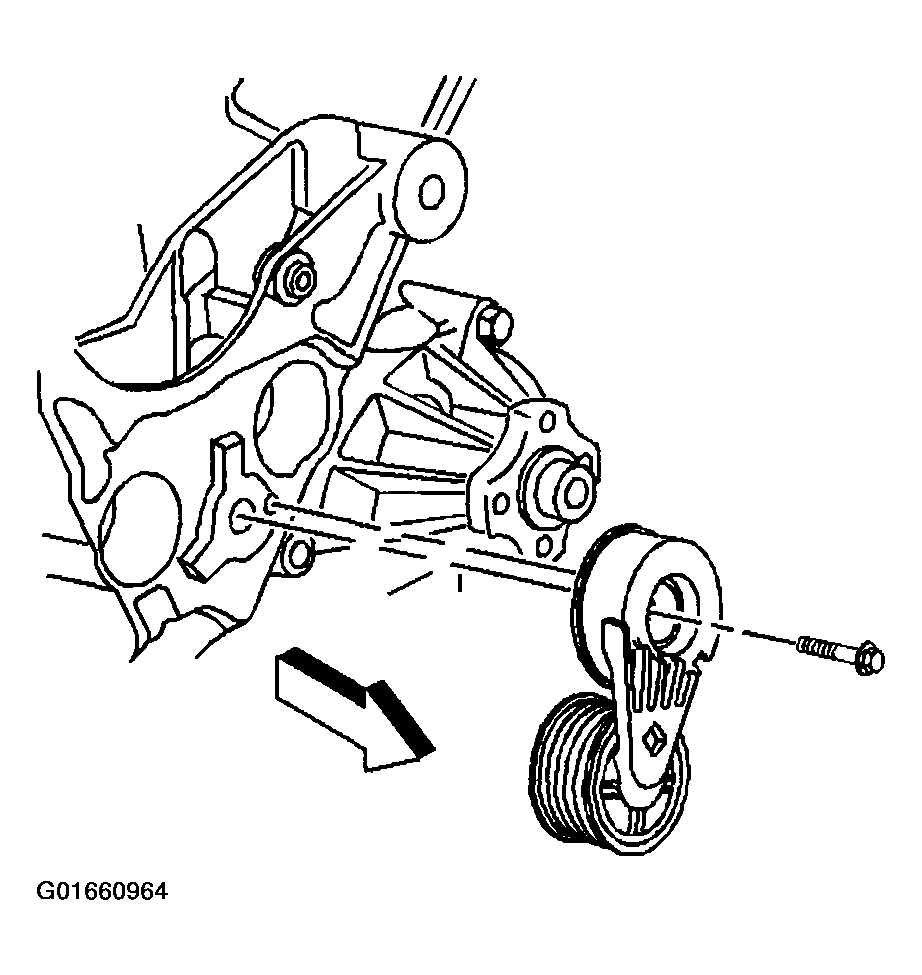

    Fig 1: Drive Belt Tensioner & Bolt
    G01660964Courtesy of GENERAL MOTORS CORP.
