Installation Procedure

  1. Install the drive belt tensioner assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the attaching bolt.

    Tighten

    Tighten the tensioner assembly bolt to 50 N.m (37 lb ft).

  3. Install the drive belt. Refer to Drive Belt Replacement .

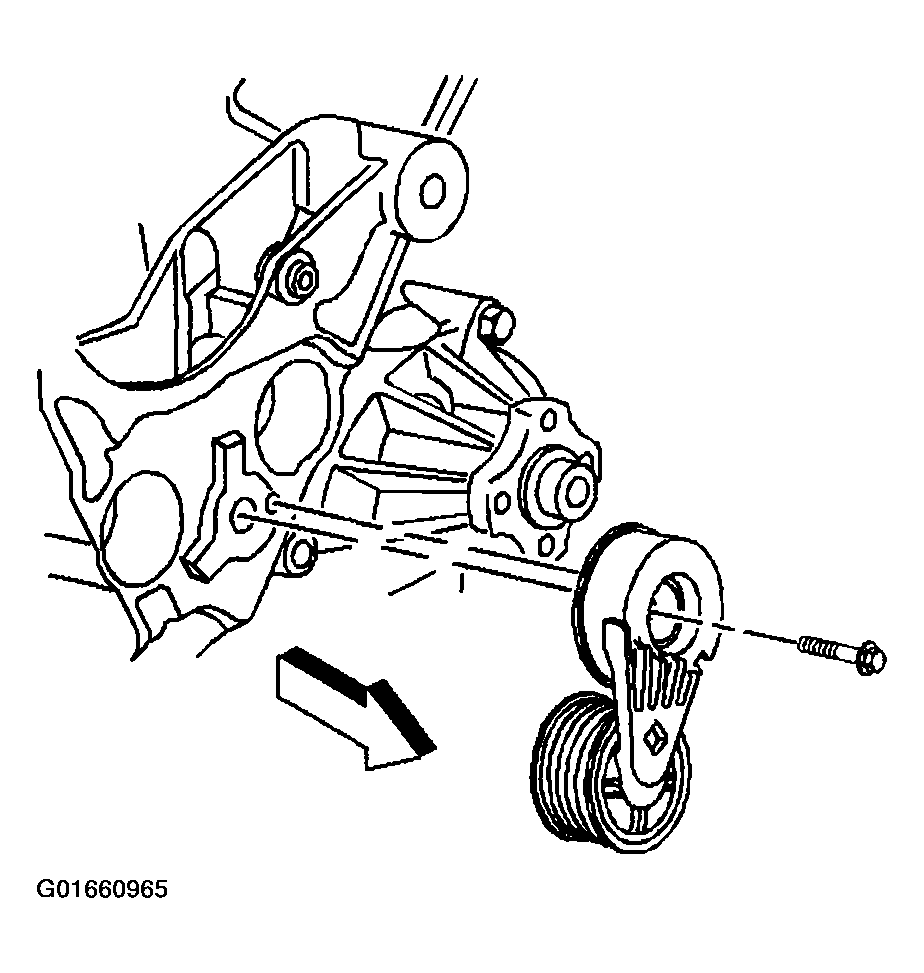

    Fig 1: Drive Belt Tensioner & Bolt
    G01660965Courtesy of GENERAL MOTORS CORP.
