Removal Procedure

  1. Install a 3/8 inch drive wrench on the drive belt tensioner arm and rotate the arm counterclockwise.
  2. Remove the drive belt.
  3. Slowly release the tension on the drive belt tensioner arm.

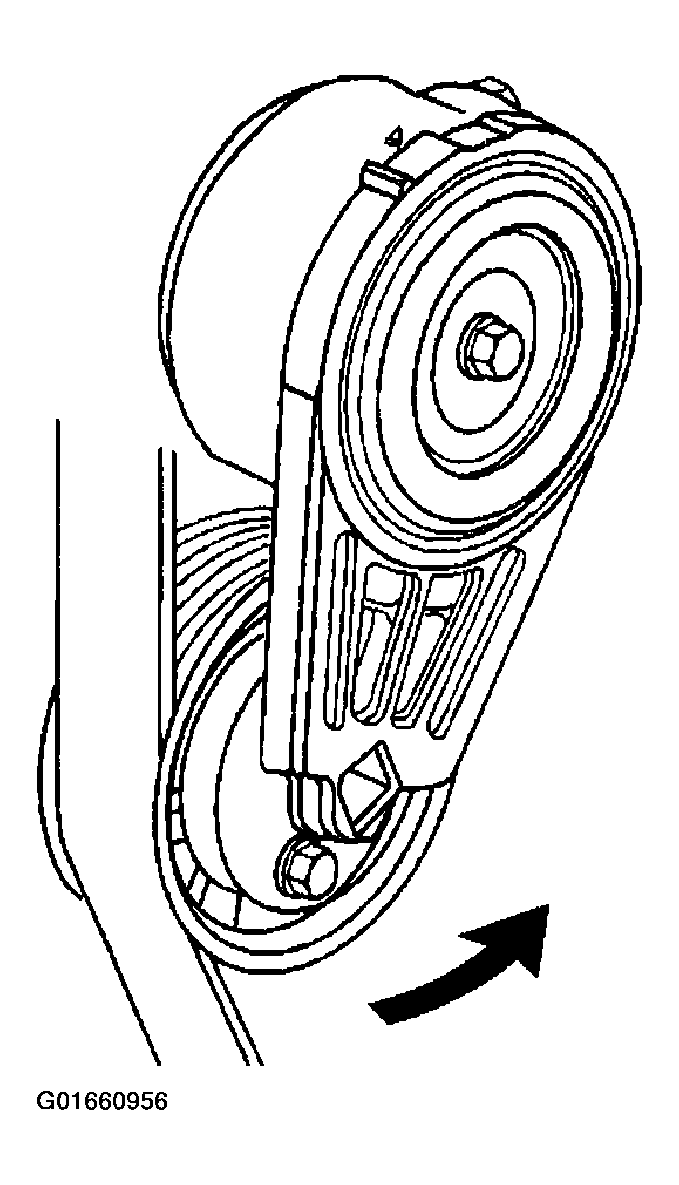

    Fig 1: Drive Belt Tensioner Arm
    G01660956Courtesy of GENERAL MOTORS CORP.
